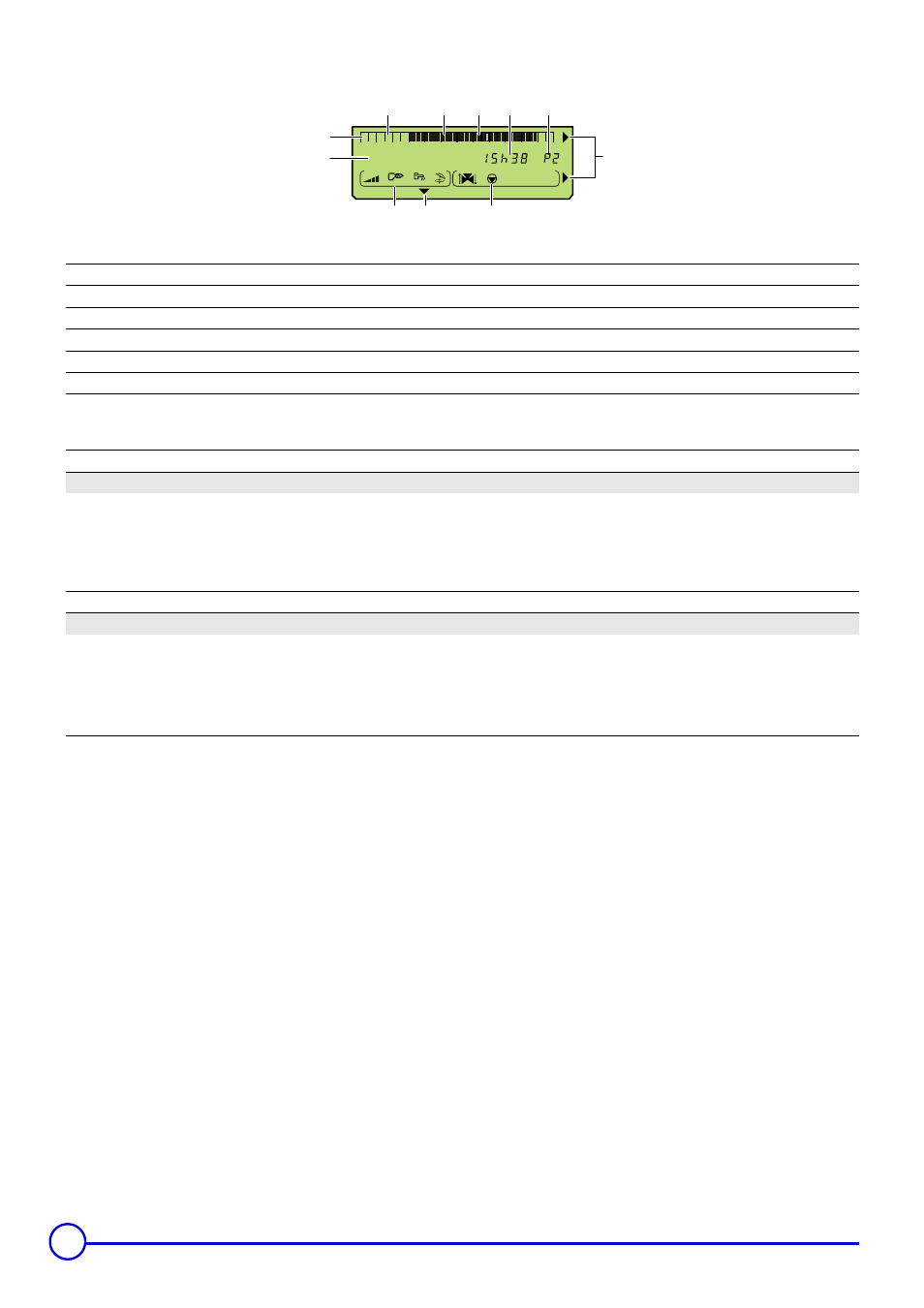

„ Display
1 Text and numerical display
2 Graphic display bar for the programme in circuit A, B or C
3 Light area: Reduced temperature heating period or tank load disabled
4 Dark area: Comfort temperature heating period or tank load enabled
5 Flashing cursor showing the current time
6 Number display (current time, adjusted values, parameters, etc.)
7
Active programme display, P1, P2, P3, P4
or
Su: automatic “Summer“ cut-off
8 The arrows flash when setting values can be modified using the + and - keys
9 Circuit operation symbols
>
=
:
A, B, C
Opening the 3-way valve
Closing the 3-way valve
Displayed circuit pump on
Name of the circuit displayed
10 Symbol displayed above the active operating mode
11 Symbols indicating that the following inputs/outputs are active
D
#
T
Burner on
DHW load pump on
Summer mode
Not available
0 2 4 6 8 10 12 14 16 18 20 22 24
A bar
3 4 5 6 7
9 10 11
8
2
1
B C
SUNDAY
