APM Base Unit for Power Over Ethernet -201 User Manual
Apm co., ltd apm-201, Base unit for power over ethernet

1 of 1

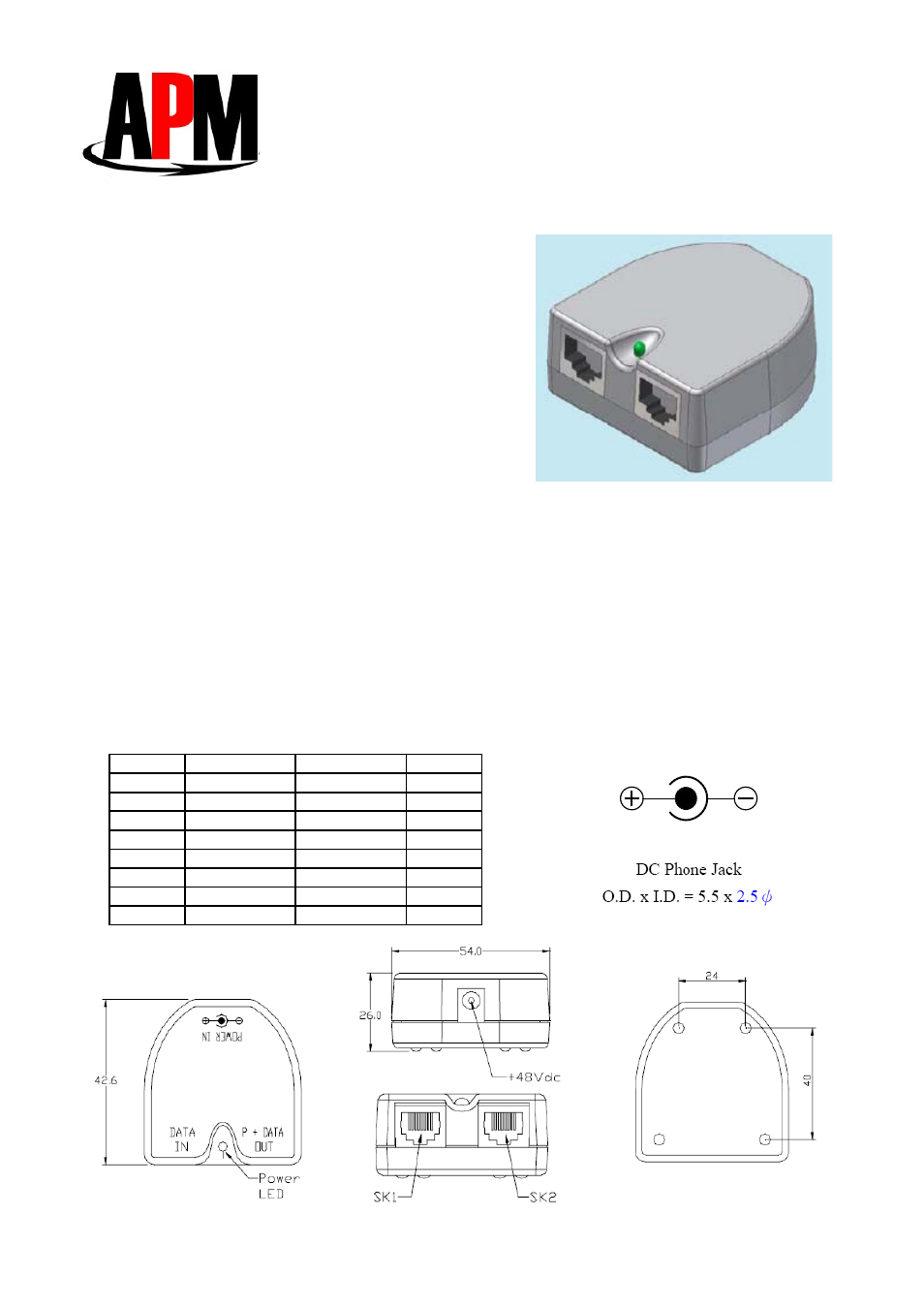

APM CO., LTD
APM-201
Base Unit for Power Over Ethernet
1. Features:
1.1. Single-Port Power Injector
1.2. IEEE 802.3af compliant
1.3. No Software Required
1.4. Easy to Install
1.5. Use Existing Ethernet Cable
2. Input Specifications:
2.1. Power Interface : DC Jack (See Pin Assignment)
2.2. Data Interface : RJ-45 jack (See Pin Assignment)
2.3. Input Voltage : 48V ± 10 % * Applied from External Switching Adapter ( 90 ~ 264Vac)
2.4. Input Current : 400 mA Max.
3. Output Specification:
4. General Specification:
3.1. PD Detection & Classification :
4.1. Operating Temperature : 0℃ ~ +50℃
IEEE 802.3af compliant
4.2. Storage Temperature : -20℃ ~ +70℃
3.2. Interface : RJ-45 jack (See Pin Assignment)
4.3. Humidity : Up to 90 %
3.3. Output Voltage : 48V ± 10 %(42,53)
4.4. Cooling : Free air convection
3.4. Output Current : 0.35 A Max.
3.5. Output Power : 15.4W Max.
3.6. LED Display : PoE Not Active (Orange), PoE Active (Green)
5. Pin Assignment :
Pin
LAN IN
LAN Out
Pin
1
Tx (+) Tx
(+)
1
2
Tx (-) Tx
(-)
2
3
Rx (+) Rx
(+)
3
4
N.C. +48V
4
5
N.C. +48V
5
6
Rx (-) Rx
(-)
6
7
N.C. GND 7
8
N.C. GND 8
6. Mechanical Dimension :
Units : m/m & Tolerance : 0.xx ± 0.25
