AmpliVox SS / SW3230 RTA ASSEMBLY INSTRUCTIONS
8

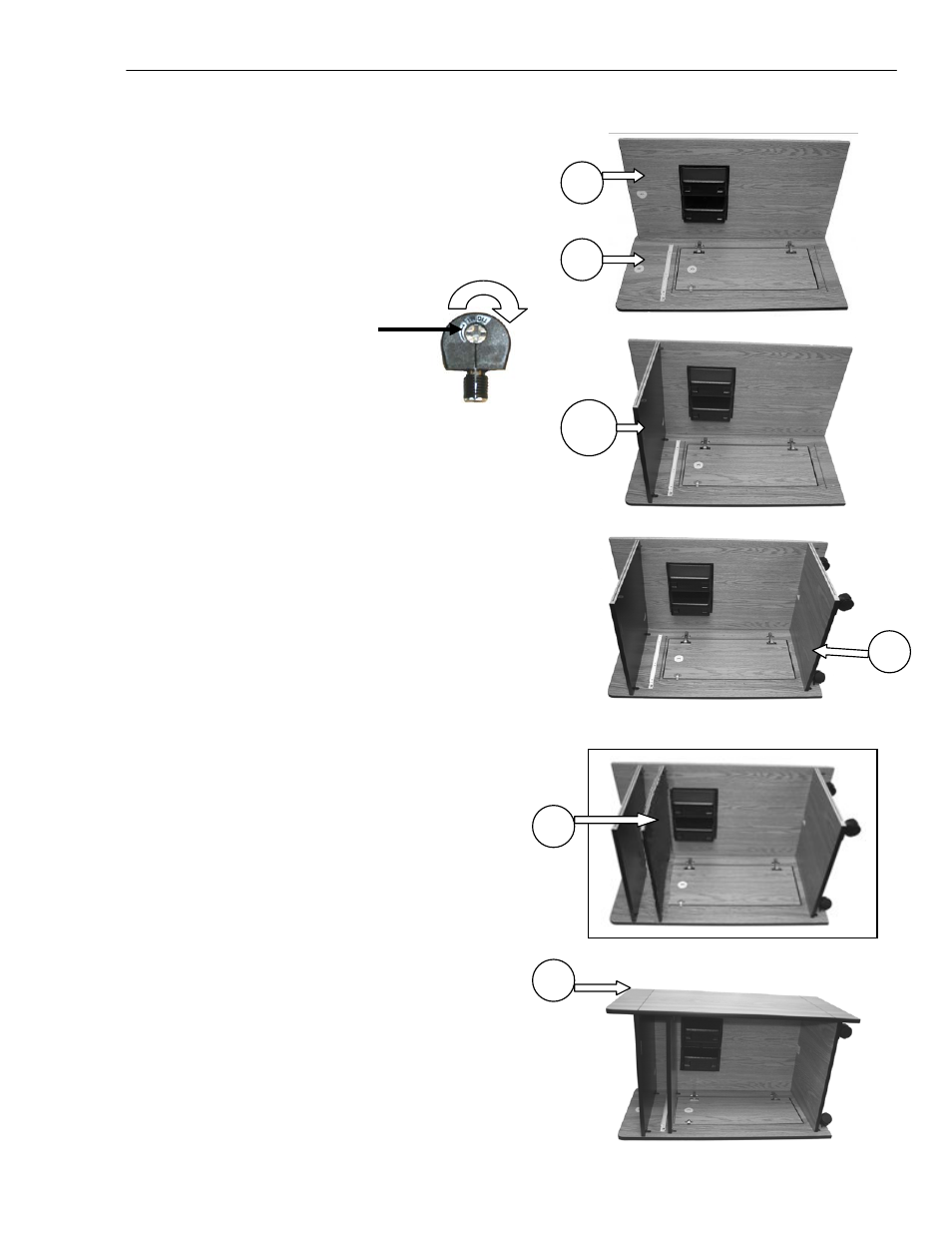

CABINET ASSEMBLY
• Place Panel (6) assembly on flat surface.
• Take Panel (1) and align the dowel pins and
cam locks and lower into Panel (6). Tap in
place and lock cam locks.
• Lock panel in place by
rotating cam lock with
screwdriver turning lock
clockwise until you can not
turn anymore.
• Align the edge of Panel (11) over Panel (6),
Lower into place with the large hole toward
Panel (1). Lock cam locks.
• Align the edge of Panel (4) over Panel (6),
Lower into place with the notch toward Panel
(1). Lock cam locks. Repeat with Panel (5).
• Take Panel (7) assembly and align the
dowel pins and cam locks of panel (4), (5), (11)
and (1) with the holes in Panel (7). Lower into
place and Lock cam locks of panel (4), (5), (11)
and (1).
6
1
11
4
5
7
