TCPIP232 Connections
There are 2 kinds of connection for TCPIP232
1. Stand alone with Digital Video Recorder
This connection will inteface directly to DVR which supported Text Insertion. This insertion will
interface via RS232C only from TCPIP232 rear panel.So Please consult your DVR manual or contact
DVR manufacturer.
2. VSSI-pro Interface
VSSI-Pro has also supported text insertion and programmable gray scale and background of text
inesertion. User are able to define the ATM IP Address via Onscreen programming on VSSI-Pro Menu.
Introduction TCPIP232 ATM Interface.
TCPIP232 ATM Interface is designed to capture ATM transactions on ATM LAN system then
convert caputered transactions to serial port to interface with VSSI-Pro (ATM Serial Interface)
or Digital Video Recorder (DVR) which supports text insertion and overlays trasaction informa-
tion to video.
PAGE 2

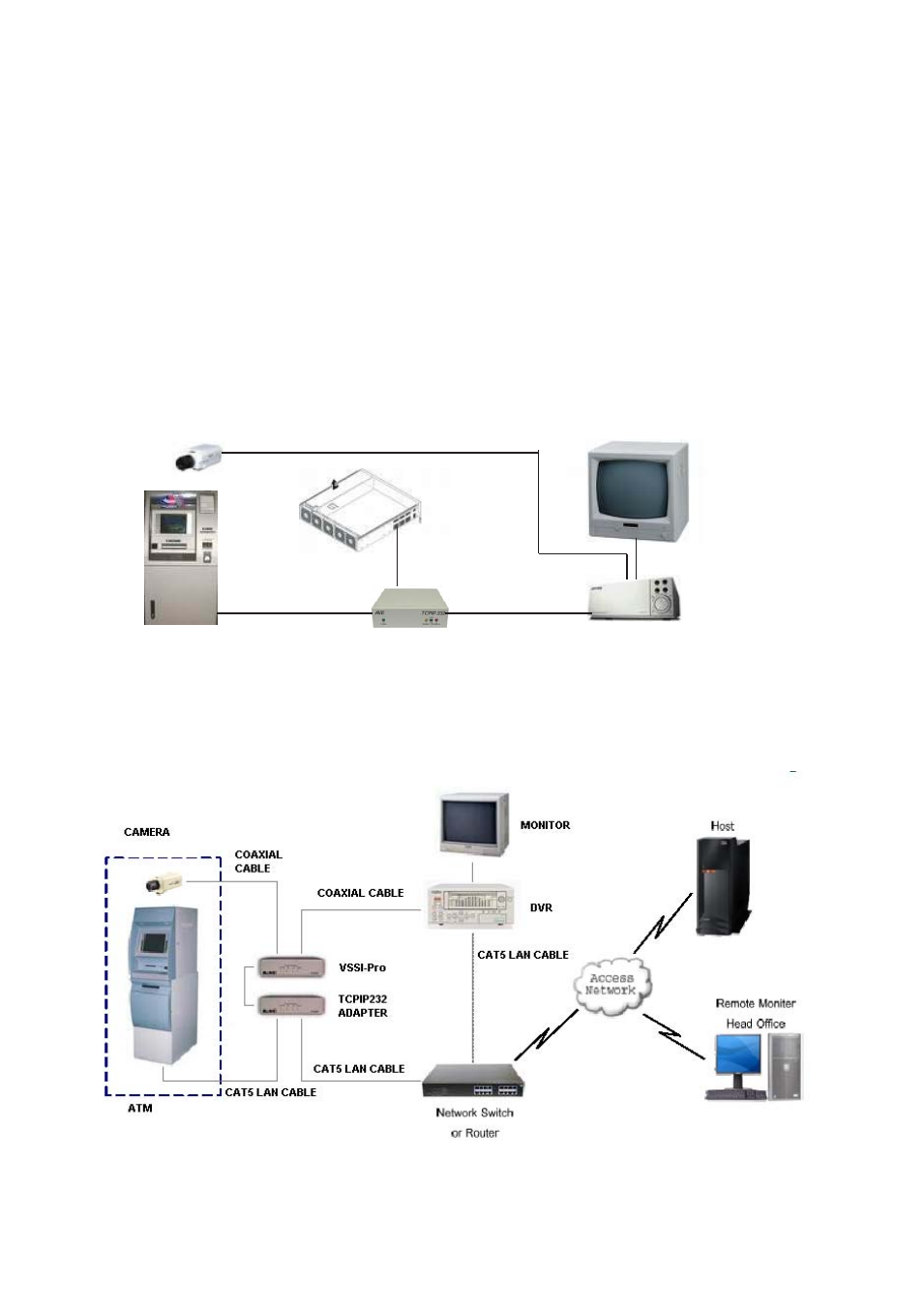

Figure 1. Stand alone connection
ATM
Camera
Rounter/Network
CAT-5
CAT-5
Video Coaxial
Video Coaxial
Serial
DVR
TCPIP232
Monitor
Figure 2. VSSI-Pro Interface
