4
Package Unit Orientation (Compressorized)
Service access is from the front of the unit.
As you face the front of the unit, the condensing section will be on
the right end of the unit, and the air handling section on the left.
The drain connection is located on the back.
Table 4.1, Package Unit Dimensions
Model Width Length Height
002 - 005 42.25” 74.25” (93.25”)* 38”
*If present, the outside air hood will increase the overall
installed unit length by 19” for a total length of 93.25”.

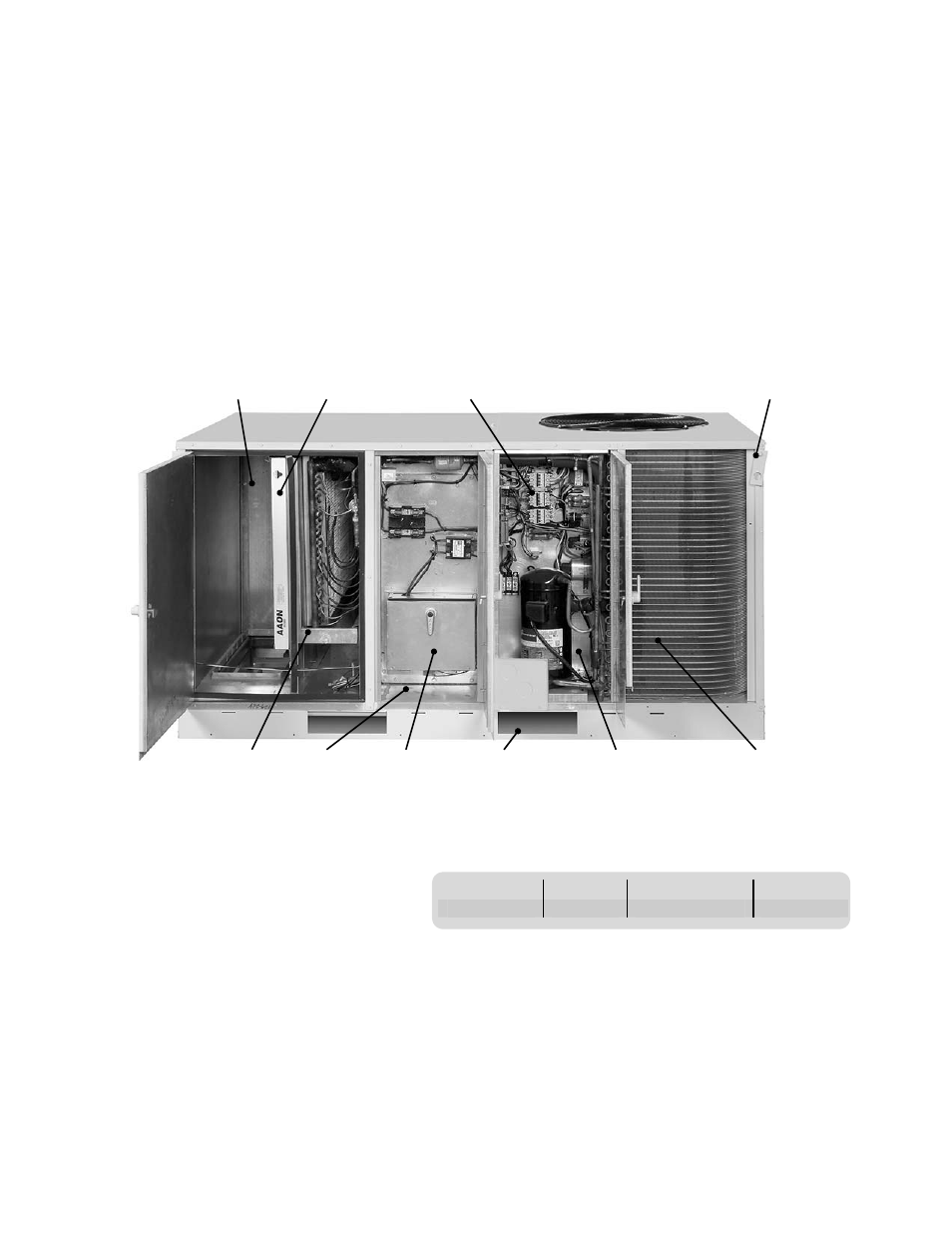

Figure 4a, Package Unit Orientation
Compressor
Compartment
Condenser
Section
Heating
Section
Evaporator
Section
Return /
Outside Air /
Economizer
Section
Top Lifting Lugs
on Each Corner
Filter
Section
Controls
Section
Supply Air
Section
Forklift
Openings
