RK3 Rack Kit
Mounting: Use screws included with RK3 to bolt System Tool into one of 3 positions
Back of System Tool includes two pre-tapped 4-40 ¼” mounting holes

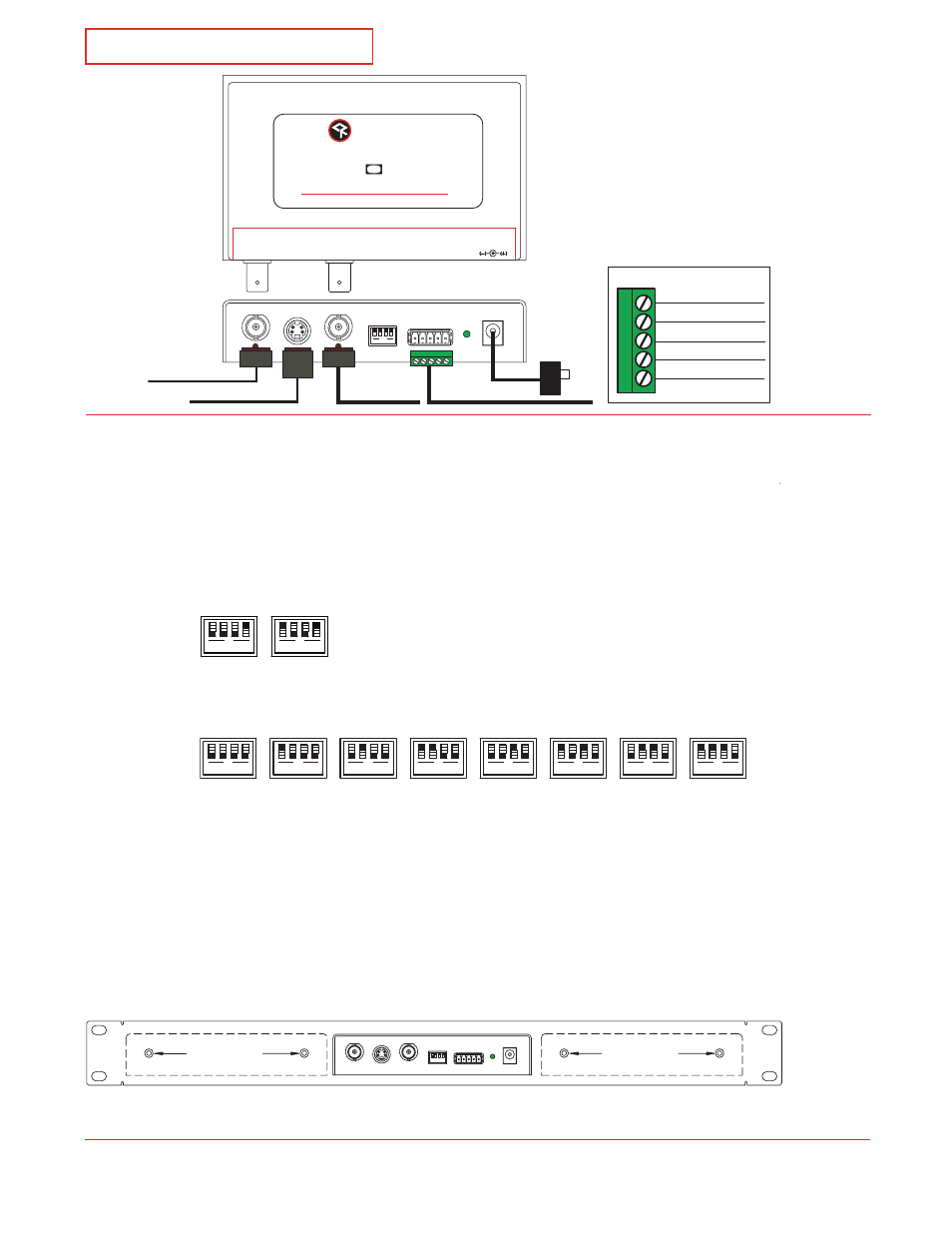

VS CC Installation
Video and Power Connections
Video In: Connect BNC composite NTSC video
S-Video Out: Connect S-Video cable (2-D Y/C processed video plus captions)
Video Out: Connect BNC composite NTSC video (input video plus captions)
DC Pwr: Connect DC power supply, Green Pwr LED lights when DC power is active
Operation: Video output should include captions, CC1 mode (default setting)
Caption/Control Settings
Caption/Control: 4-position DIP switch sets caption and control operation
Default setting is all switches off (up): CC1 caption type, Latching caption on/off control
1. Set Control Options by setting Switch 4 On, then Switch 1 On or Off.
2. Set Switch 4 to Off (Caption Mode)
3. Set Caption Options using switches 1 -3 for caption type CC1 - CC4 or TT1 - TT4
4. If you change Control Options, reset DIP switches to desired Caption Type
Control Port
Control Port: Wire captive-screw terminal as shown above
Pin 1: GND
Pin 2: Captions On/Off Input, latching or toggling, closure to GND, max 50 mA
Latching mode: Closure turns captions off, release to turn captioning on
Toggling mode: Momentary contact toggles between captions on and off
Pin 3: Captions Output, On = logic level low, max 50 mA, Off = Logic high, 5V through 10K pull-up resistor
Pin 4: Video Detect Output, On = logic level low, max 50 mA, Off = Logic high, 5V through 10K pull-up resistor
Pin 5: 12 VDC input, electrically identical to Pwr In
11.5 to 16.5 VDC, 12 VDC typical (may be unregulated)
