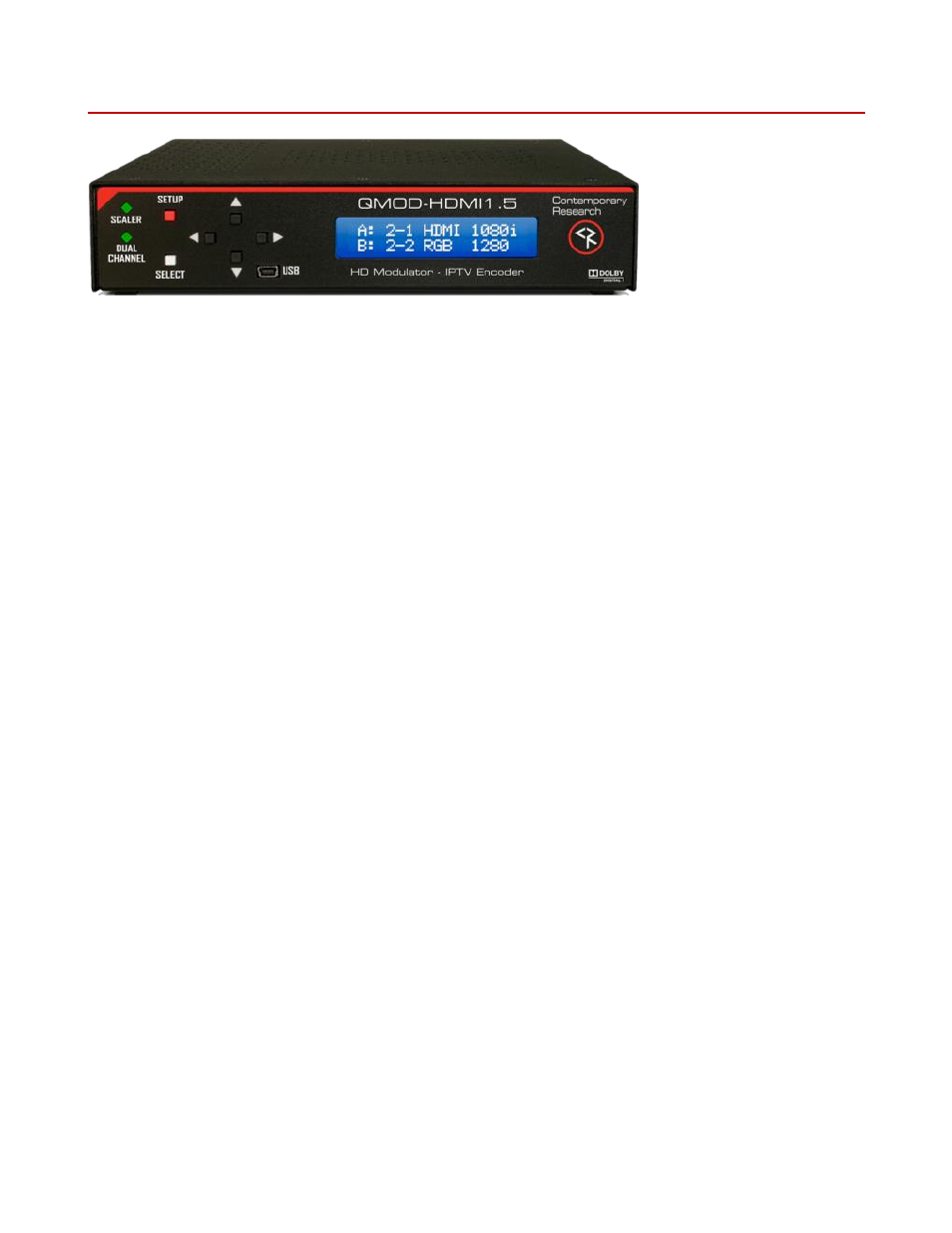

3 QMOD-HDMI1.5
Overview
Employing a totally new HD encoding technology, the QMOD-HDMI1.5 continues the QMOD track record for
quality and innovation, setting a new benchmark for features and performance. Designed for digital signage and
HD media applications, the QMOD-HDMI1.5 can accept PC 1080p/720p 60/24Hz video, as well as standard
59.94/29.97 refresh rates.
Users can upgrade operation for full scaling and dual-channel operation by entering optional upgrade key codes.
Sources
 One HDMII input, 1080p 60/24 and 1080i/720p 59.94/60 Hz HDMI, also accepts embedded Dolby AC-3 and PCM
audio
 One RGBHV/Component input, 1080i, 720p, 480p, 480i video, 1080p (RGBHV)

One Composite video input for encoding, captioning, or EAS use
 Stereo and coax SPDIF audio inputs
Encoding
 Creates a high-definition 720p/1080i MPEG-2 stream for broadcast
 Accepts pass-through AC-3 audio, converts stereo and PCM to stereo AC-3, can create dual-language audio for
each program

Includes captioning from Line 21 data on composite video inputs
 Flex encoding downscales 1080p to 1080i, allows use of 720p/1080p 60Hz sources, and compensates for 60/30 Hz
sources such as consumer HD cameras

QSDI-Scale upgrade key accepts VGA resolutions, scaling for edge-to-edge viewing on TVs
 QSDI-Dual 2-channel upgrade key allows selection of inputs to create 2 HD channels
Output
 Delivers a fully agile QAM 64/256 digital cable channel 2-135

Up to 270 HD Programs/Channels per system
 Streams IPTV from GigE Ethernet port
 Distributes channel over an on-site broadband cable system with adjustable output level to 29 dBmV, compatible
with all cable format broadband systems
Operation
 Sets up with front-panel buttons and easy to use menus, including inputs, encoding, channel, and RF options.

Onboard Web page for setup and monitoring, also accessible from front-panel USB port
 Control with IP Telnet commands
 Saves power and rack space using efficient design

Includes compact switching power supply
 Mounts in optional 1RU single (RK1) or dual (RK2EZ) 19” rack kits

Meets RoHS safety and California energy standards
