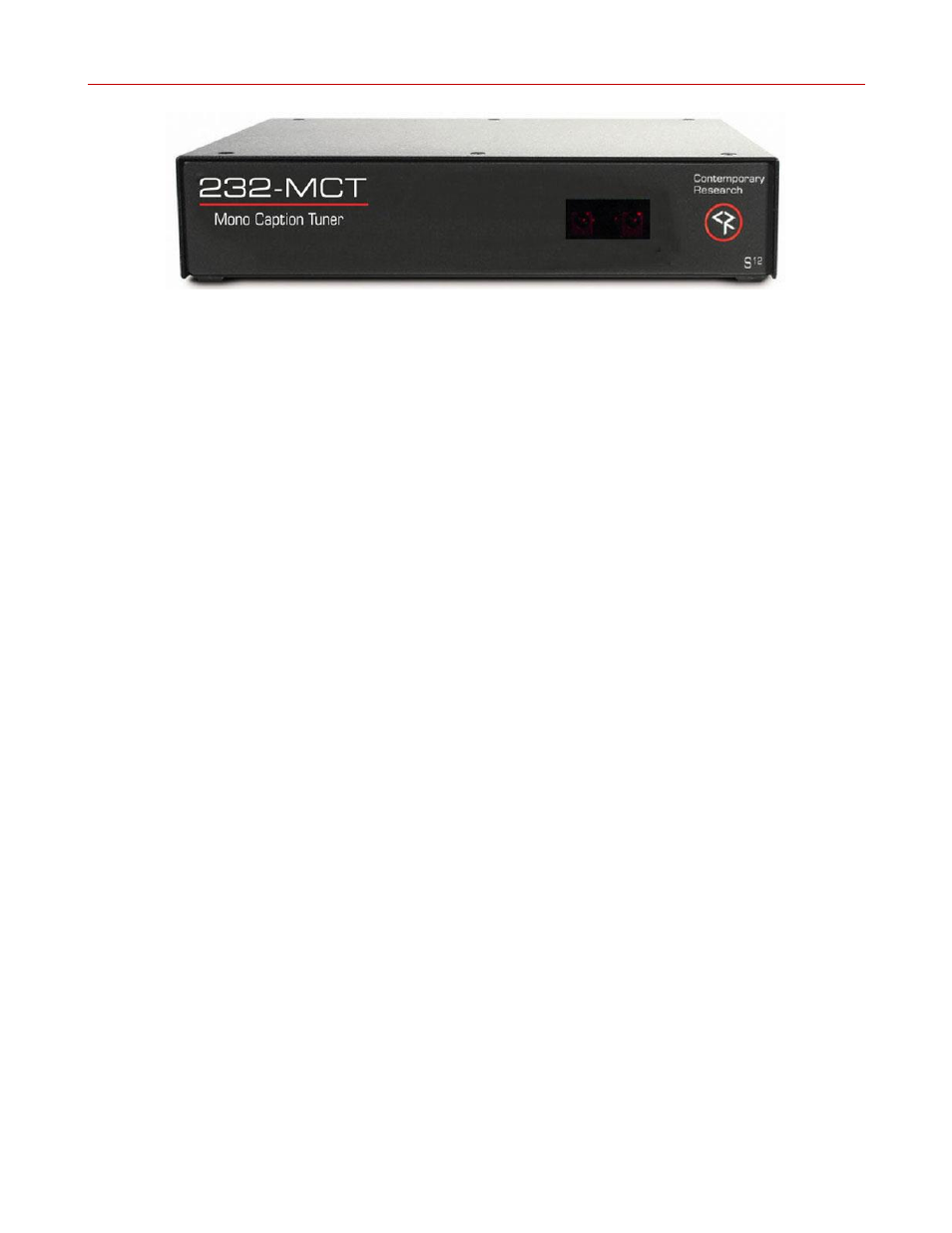

Contemporary Research 3 232-MCT Mono Caption Tuner
Overview
The Contemporary Research 232-MCT is an economical RS-232/IR controlled video tuner featuring mono audio, 125-
channel access in CATV, HRC, or IRC modes, closed captioning and intelligent control. Fully programmable, the unit
can restore all settings on power-up from non-volatile memory. A list of accessible channels, called channel rings, can
be stored in memory, used for convenient channel up/down control and to control direct access to unlisted channels.
Switchable inputs for NTSC video and mono audio are included for display of PC graphics, a character generator
information channel, camera or other A/V sources.
An onboard character generator displays on-screen text for closed captioning, channel names, and text from a custom
control system. Full setup, control, and feedback is provided by RS-232. Up to nine 232-series tuners can be
controlled from a single RS-232 port. In addition, remote tuning ring channel up and down operation can be accessed
through contact closure inputs. Enjoy a full range of wireless control with the optional IC-RC IR Wireless Remote.
 Interacts with PCs and control systems via RS-232, using simple ASCII-format commands and feedback, up to
9 tuners can be linked to a single RS-232 control port; AMX, Crestron, or RTI modules available.
 Tunes 125 channels CATV, HRC, or IRC modes, using true synchronous video detection and intercarrier SAW
filter – channel 126 selects the composite input.
 Stores programmable tuning ring in memory to control channel access
 Receives IR commands from front-panel sensor and wired IR input on the back, also responds to Sharp IR TV
commands
 Accesses tuning ring channel up/down from contact closure inputs
 Displays closed-captioning text, on-screen channel names, and on-screen text from custom control systems
 Inserts blue screen video image when unit senses loss of video level
 Restores all operation status after loss of power from data stored in non-volatile memory
 Mutes both audio and video, variable volume control
 Switches between tuner and external A/V input (video and audio inputs, can convert stereo to mono)
 Mounts in 19" rack with optional RK1 or RK2 kit for dual side-by-side installation
 Setup available via RS-232 using free Tuner Helper software, a Terminal application, or by custom system
programming
 Integrates with 232-AMP for educational applications, pole mount bracket available
 Firmware updateable via local PC over RS-232
Firmware Versions:
V5.1 Adds RS-232 command for setting Unit#, enables use of fully-wired RS-232 cables (ignores voltage on pins 4
and 9).
