GB - 10
Install Discharge Chute Crank
(Figures 3 and 6)
1. Slide chute crank through crank support bracket.
2. Connect the chute crank to the pinion gear on
chute with spring clip.
Check Tire Pressure
Check tire pressure and adjust to the pressure listed on
tire sidewall.
Check Auger Gearcase Oil
Check oil level in auger gearcase (see Check Auger
Gearcase on page 16).
Check Engine Crankcase Oil
IMPORTANT: The engine is shipped with 5W-30 oil in
crankcase. Refer to Engine Manual for detailed
instructions.
Fill Engine Fuel Tank
Refer to Engine Manual for proper fuel type and tank
capacity.
Check Function of all Controls
Ensure unit runs and performs properly. Refer to
Operation.
Run-in Attachment Belt
1. Start unit in a well-ventilated area according to
Starting and Shut Off on page 14.
2. Engage attachment clutch lever and run
attachment for about 15 minutes.
3. Stop unit, wait for all moving parts to stop, and
remove spark plug wire.
4. Adjust belt fingers, if necessary. See Attachment
Drive Belt Replacement on page 20.
5. Adjust clutch according to Attachment
Clutch/Brake Adjustment on page 18.

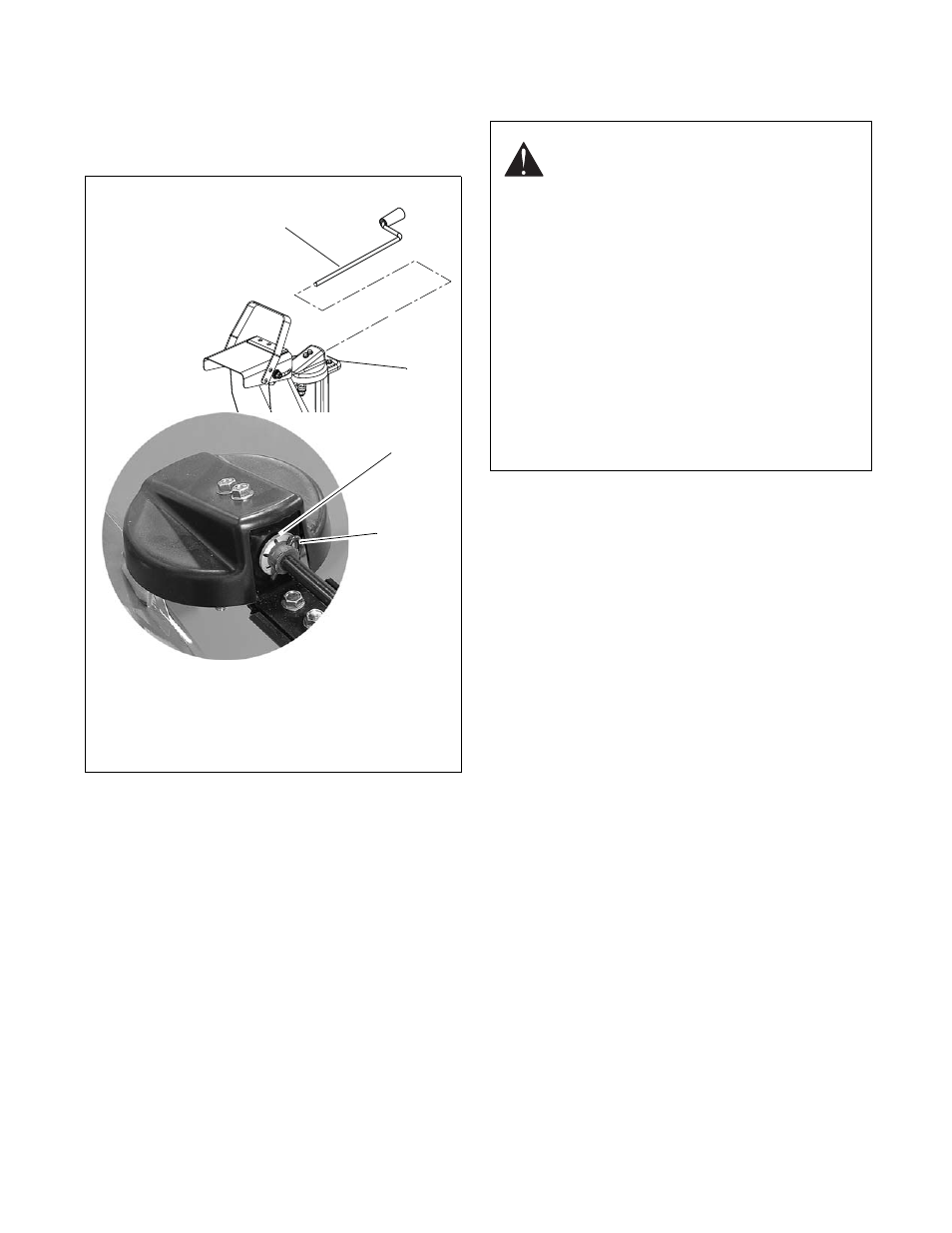

Figure 6
1. Chute Crank
2. Crank Support Bracket
3. Pinion Gear
4. Spring Clip
2
1
4
3
OS7065
OS0001
CAUTION: Avoid injury! Explosive
separation of tire and rim parts is possible
when they are serviced incorrectly:
• Do not attempt to mount a tire without
the proper equipment and experience
to perform the job.
• Do not inflate the tires above the
recommended pressure.
• Do not weld or heat a wheel and tire
assembly. Heat can cause an increase
in air pressure resulting in an
explosion. Welding can structurally
weaken or deform the wheel.
• Do not stand in front or over the tire
assembly when inflating. Use a clip-on
chuck and extension hose long enough
to allow you to stand to one side.
