Com-Power AD-100 - Manual (Page 2)

Specifications
All values are typical, unless specified.
Specifications are subject to change without notice.
Antenna Type: Half wave tuned dipole
Frequency Range: Balun 1 (dB1): 30 MHz - 65 MHz
Balun 2 (dB2): 65 MHz - 175 MHz
Balun 3 (dB3): 175 MHz - 400 MHz
Balun 4 (dB4): 400 MHz - 1000 MHz
Impedance: 50 Ohm
Connector Type: BNC female
Element length assembled: min: 6 inches, 15 cm
max: 212 inches, 538 cm
Weight: 8 lbs, 36 kg
Balun 1, 2, 3 (30 MHz - 400 MHz)
Balun 4 (400 MHz - 1000 MHz)

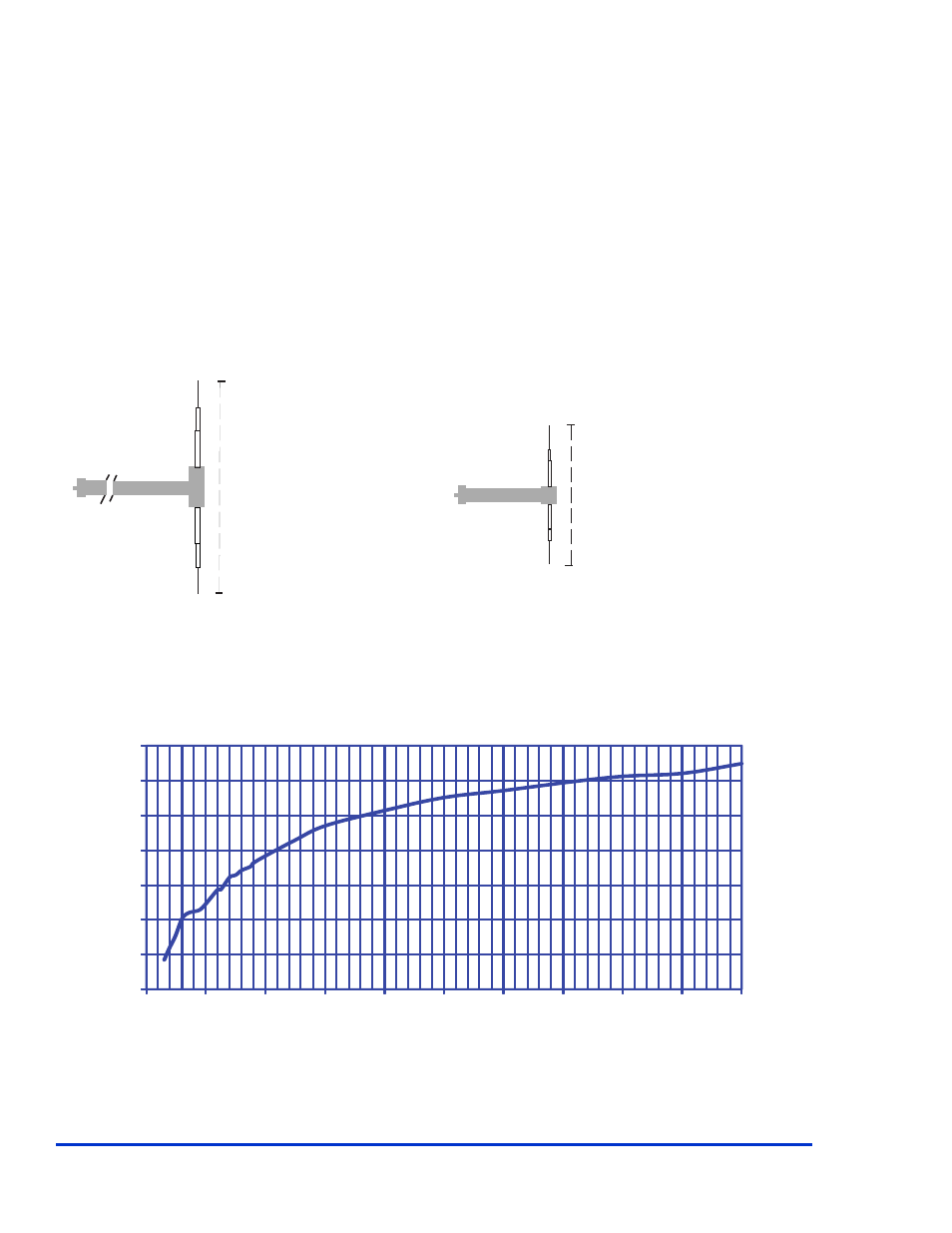

Typical Antenna Factor
Maximum 11.7 inches, 29.8 cm
Minimum 6 inches, 15.2 cm
Maximum 212 inches, 538.5 cm
Minimum 12 inches, 30.5 cm
Com-Power Corporation 114 Olinda Drive, Brea, CA 92823 (714) 528 - 8800 www.com-power.com
-5
0
5
10
15
20
25
30
0 100 200 300 400 500 600 700 800 900 1000
dB
/m
MHz
