Com-Power AHA-118 - Manual (Page 2)

Frequency Range: 1 GHz - 18 GHz
Bulit-in preamp gain: 25 dB ± 2
Output VSWR: 2.5 :1
Polarization: Linear
Output Impedance: 50 Ω
Connector types
Antenna output: N (f)
Preamplifier input: N (f)
Preamplifier output: N (f)
Power input: 18 VDC, 500 mA
Weight: 7 lbs. (3.1 kg)
Size: 10.2" X 9.5" X 5.6" (25.9 cm x 24.1 cm x 14.2 cm)
Specifications
Typical Antenna Factors
Com-Power Corporation 114 Olinda Drive, Brea, California 92823 (714) 528 - 8800 www.com-power.com
Antenna output to preamplifier input side view
10.2"
Preamplifier output
Tripod
Mounting
Block
Preamplifier
Housing
Preamplifer output side view
All values are typical values unless specified.
All specifactions are subject to change without notice.
10.2"
Antenna output
Tripod
Mounting
Block
Preamplifier
Housing
Preamplifier input

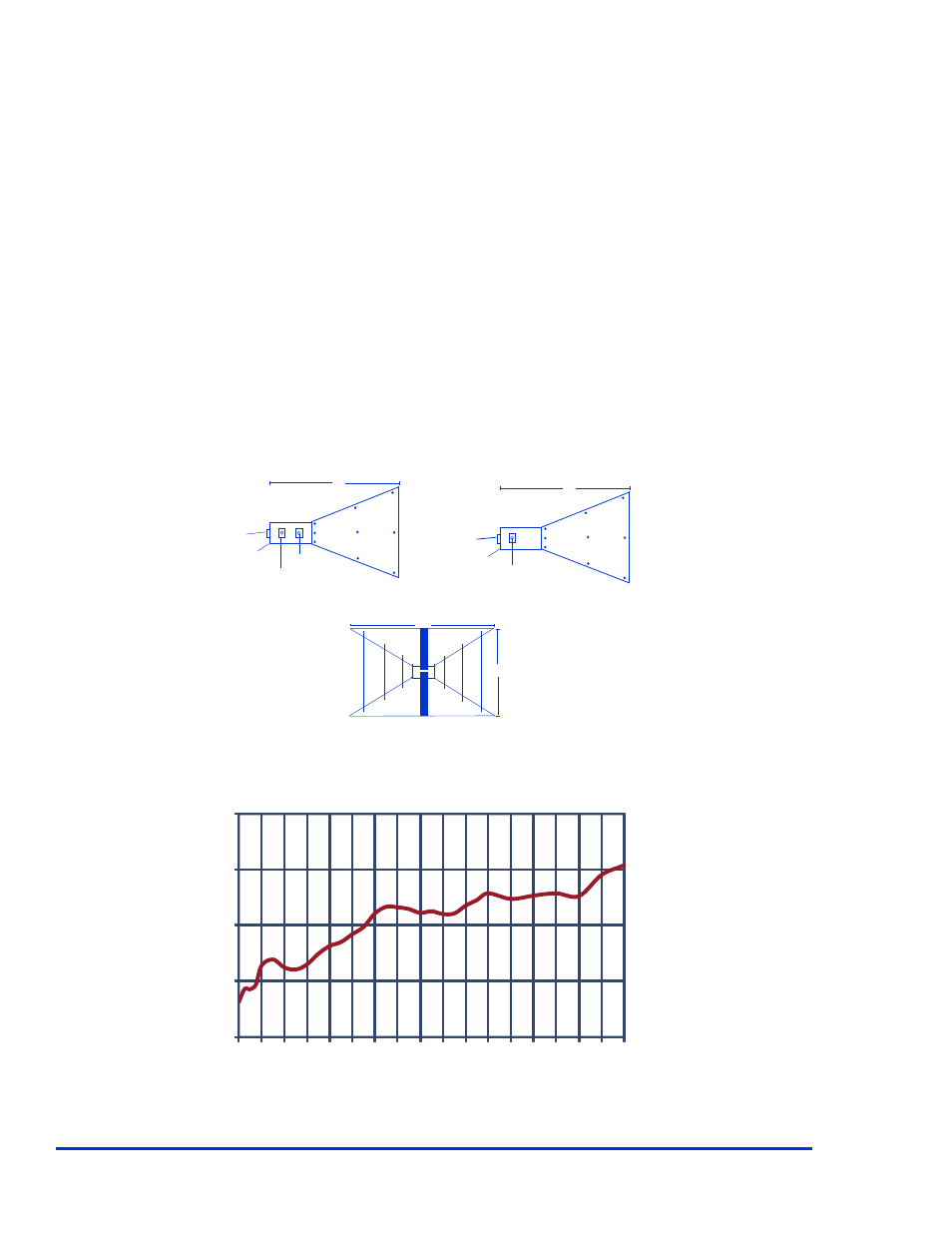

Mechanical outline
5.6"
Front View
9.5"
-10.0
0.0
10.0
20.0
30.0
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
dB/m
GHz
Model AHA-118
