A-20
Frequency Range:
26.5 GHz - 40 GHz
Power handling:
5 Watts CW
VSWR:
2.0 :1.0
Polarization:
Linear
Connector type :
K type (will mate with SMA)
Impedance:
50 Ohms
Weight:
1.5 lbs. (0.68 kg) max.
Size (L x W x H):
8.7 x 5.7 x 9 inches max.
22 x 14.5 x 22.8 cm max.
Specifications
Typical Antenna Factors
:
Field strength (dBV/m) = Output measured (dBV) + Antenna Factor (dB/m)
Typical Antenna Gain & Power requirement inWatts at a one meter dis-
tance to obtain field strength in V/m:
Freq.
Gain
Freq.
Field Strength
Ghz
(dBi)
GHz
V/m
V/m
V/m
10
20
100
26
23.41
26
0.02
0.06
1.52
27
24.24
27
0.01
0.05
1.26
28
23.25
28
0.02
0.06
1.58
29
23.26
29
0.02
0.06
1.57
30
23.95
30
0.01
0.05
1.34
31
24.44
31
0.01
0.05
1.20
32
24.11
32
0.01
0.05
1.29
33
24.28
33
0.01
0.05
1.24
34
24.44
34
0.01
0.05
1.20
35
24.99
35
0.01
0.04
1.06
36
25.64
36
0.01
0.04
0.91
37
24.57
37
0.01
0.05
1.16
38
24.01
38
0.01
0.05
1.33
39
24.53
39
0.01
0.05
1.17
40
25.55
40
0.01
0.04
0.93
All values are typical values unless specified.
All specifactions are subject to change without notice.

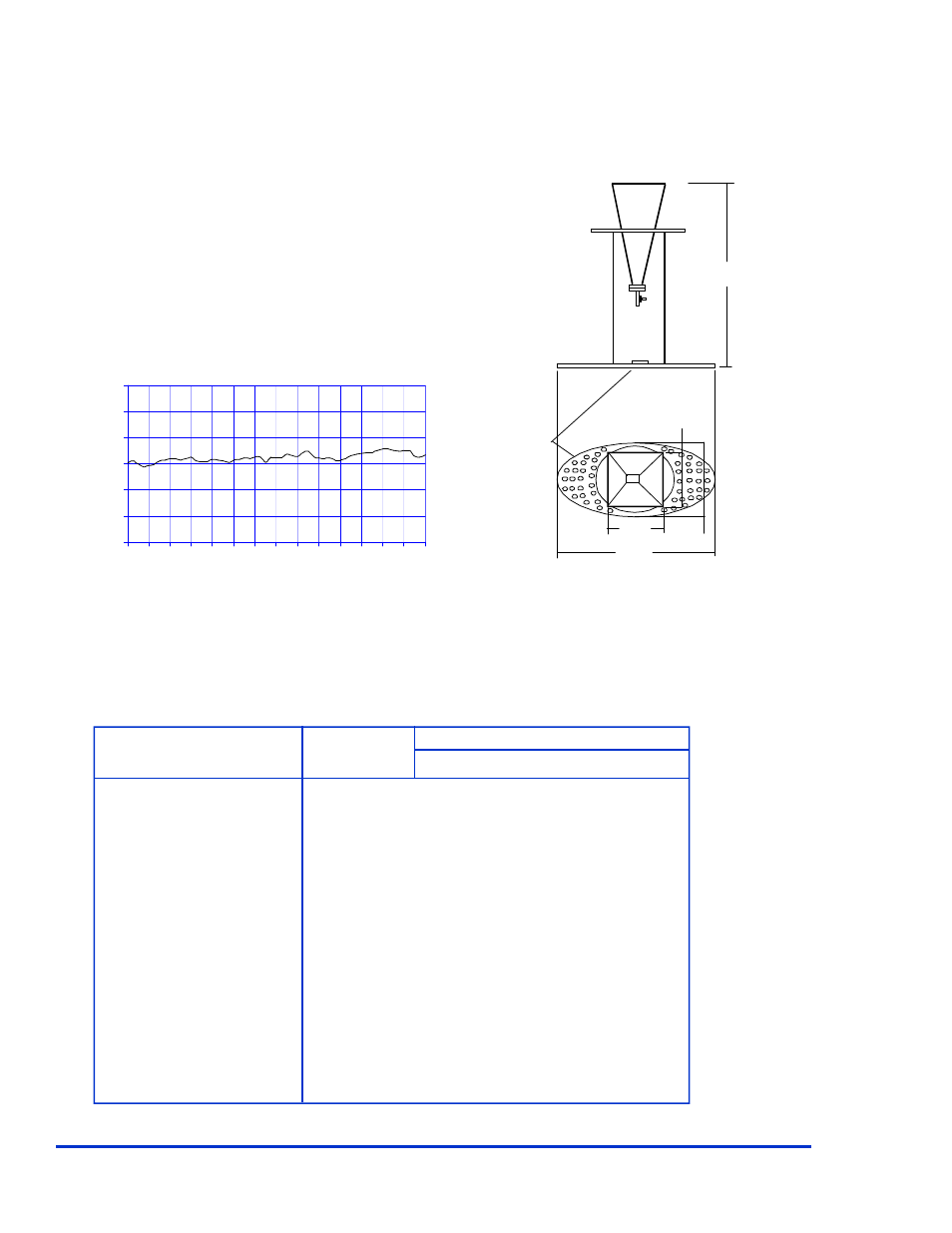

SideView
Top View
M o u n t i n g P l a t e
2.27"
2.91"
9.0"
5.7"
8.7"
20
25
30
35
40
45
50
26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
Frequency (GHz)
Frequency (dB/m)
