Specifi cations

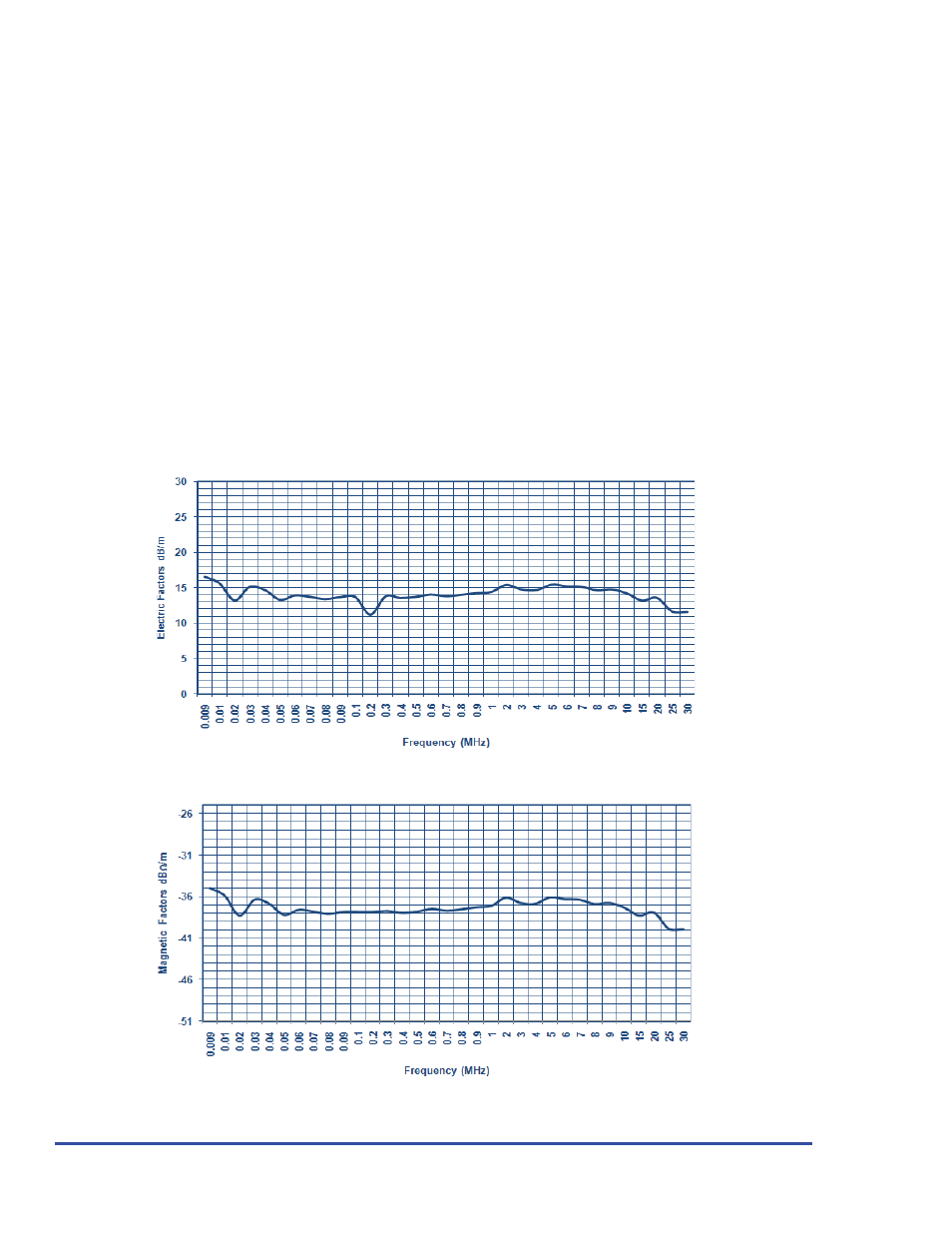

Typical Antenna Factors
Frequency range:
9 kHz - 30 MHz
Dynamic range:
110 dB at 1 MHz
Sensitivity:
10
dBμV/m at 1 MHz
1 dB compression point :
3 V/m
Output Impedance:
50 Ohm
Connector
type:
BNC
Power:
6V,
NimH
battery
pack
Charger output:
6 VDC, 500 mA
Weight:
6 lbs / 2.7 kgs
Loop diameter:
19 inches / 49 cm
Amplifi er section:
10.25 x7.25 x 2.5 inches. / 26 x 18.4 x 6.4 cm
Electric
Magnetic
Com-Power Corporation
114 Olinda Drive, Brea, CA 92823
(714) 528 - 8800
www.com-power.com
All values are typical values unless specifi ed.
All specifactions are subject to change without notice.
