Tools / parts for installation, Assembly and installation – CHIEF VCS2 User Manual
Page 3
Installation Instructions
VCS-2
3

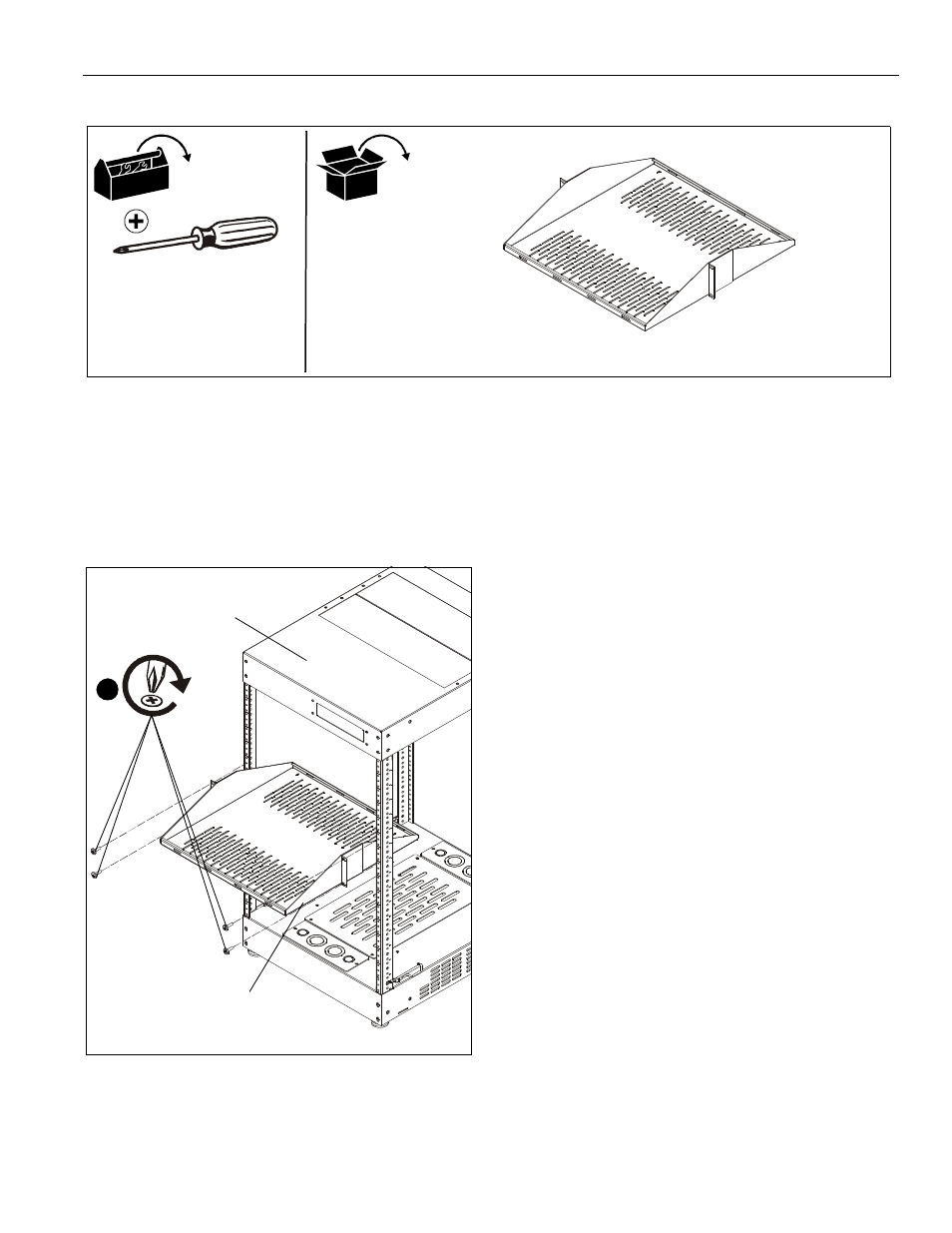

TOOLS / PARTS FOR INSTALLATION
#2
A (1)
[VCS-2 shelf]
ASSEMBLY AND INSTALLATION
1.
Determine mounting position on rack.
2.
Use four Phillips screws with washers (not included) to
attach CVS-2 shelf panel (A) to rack at desired mounting
location. (See Figure 1)
NOTE:
Phillips screws to be used should be #10-32 x 3/4" half
dog point screws with pre-installed washers.
Figure 1
2
x 4
rack (example)
(A)
