I N S T A L L A T I O N I N S T R U C T I O N S

The LCS-W1-12/-20/-28/-36 Lacer Strips Kits are designed for use
as cable management in Chief® Series NW1 racks.

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

Failure to read, thoroughly understand, and follow

all instructions can result in serious personal injury, damage to
equipment, or voiding of factory warranty! It is the installer’s
responsibility to make sure all components are properly
assembled and installed using the instructions provided.

TOOLS FOR INSTALLATION / PARTS
INCLUDED

INSTALLATION

NOTE:

The lacer strip (A) may be placed on the studs on either the
left or right side of back inside wall.

Place nylon spacers (B) over studs on back inside wall of NW1
rack. (See Figure 1)

Place lacer strip (A) over nylon spacers (B).

Fasten lacer strip in place using 1/4-20 nuts (C) over studs on
back inside wall of NW1 rack.

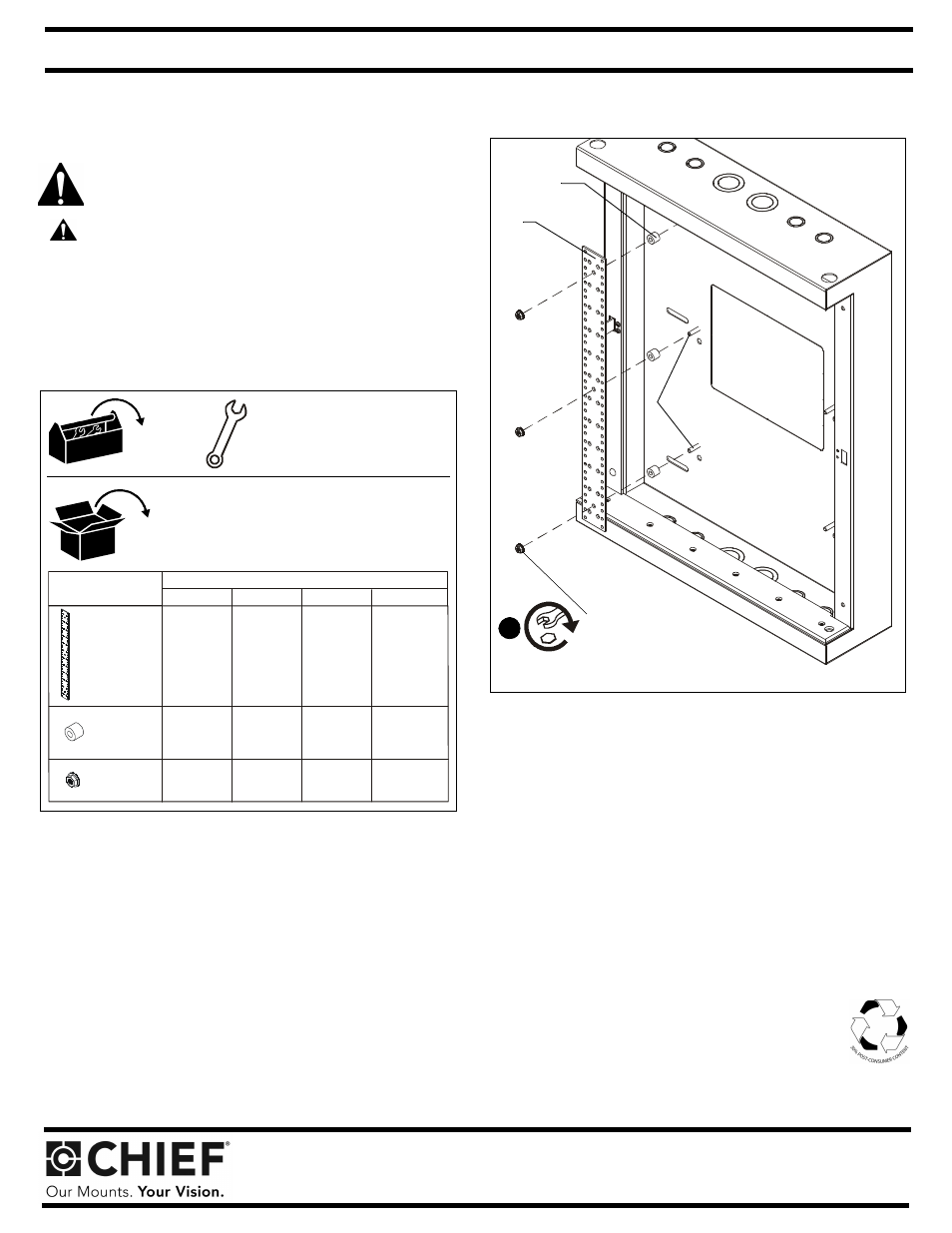

Figure 1

Chief® is a registered trademark of Milestone AV
Technologies. All rights reserved.

QUANTITIES

LCS-W1-12 LCS-W1-20 LCS-W1-28 LCS-W1-36

[Lacer strip]

B
[.61x.28x.50]

C
1/4-20

(Appearance
varies
per model)

7/16"

(B)

(A)

(C)

Stud

(Some parts removed to show back wall of NW1 rack clearly.)

LCS-W1-12 / LCS-W1-20 / LCS-W1-28 / LCS-W1-36 Lacer Strips Kits
