PACCS1 Installation Instructions
6

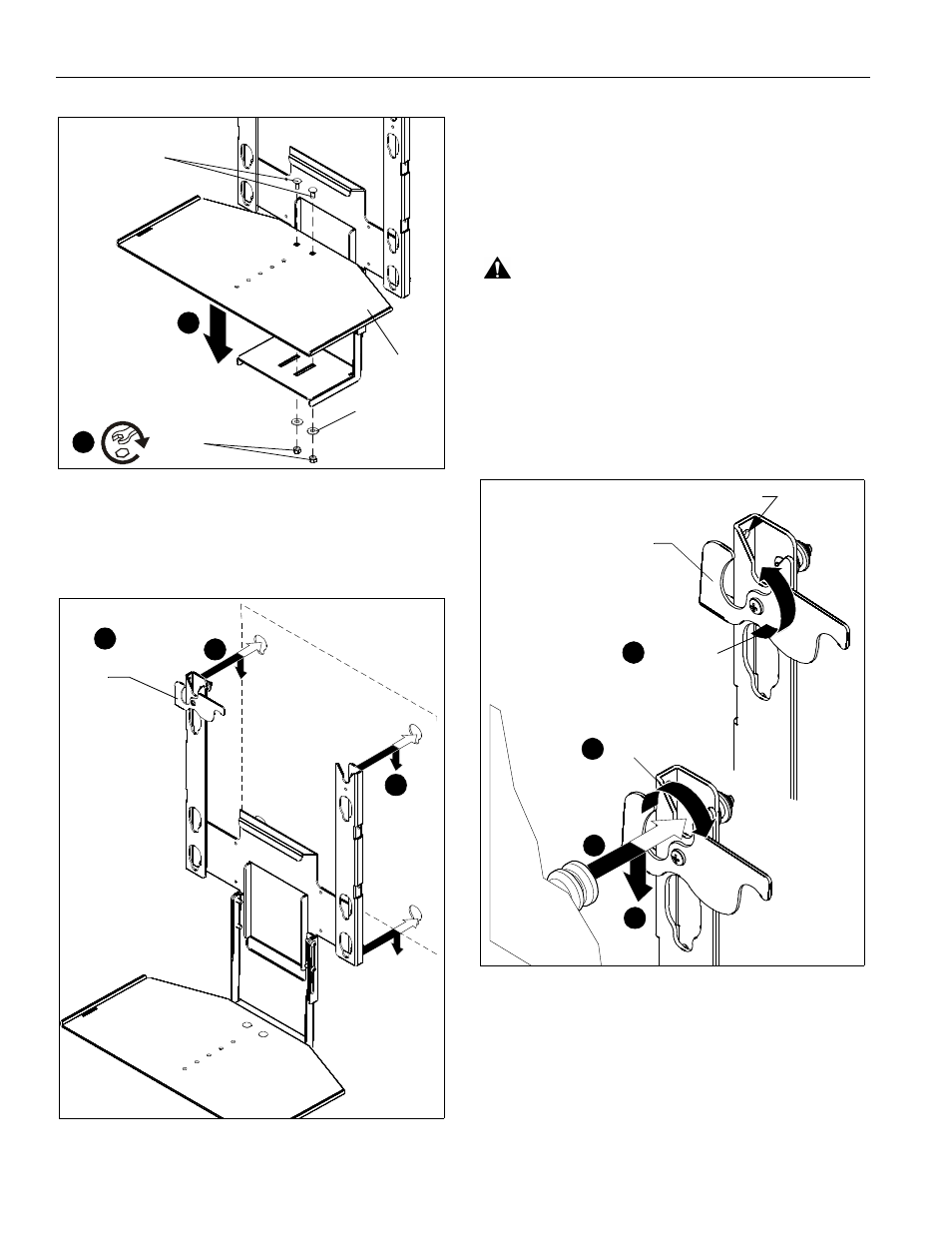

Figure 4
Installing PACCS1 to Mount and Display to PACCS1
1. Install PACCS1 to mount following the installation
instructions provided with the mount. (See Figure 5)
Figure 5
2. Verify latching flag is in the OPEN position. (See Figure 5)
and (See Figure 6)
3. Align four mounting buttons on display with four teardrop
mounting holes in accessory. (See Figure 5) and (See
Figure 6)
4. Slide mounting buttons into teardrop mounting holes and
lower display until recessed area of mounting buttons is
seated in lower area of teardrop mounting holes. (See
Figure 5) and (See Figure 6)
WARNING: IMPROPER INSTALLATION CAN LEAD TO
DISPLAY FALLING CAUSING SEVERE PERSONAL
INJURY OR DAMAGE TO EQUIPMENT. Make sure ALL
mounting buttons are properly seated in lower area of four
teardrop mounting holes.
5. Move latching flag to CLOSED position to secure display on
PACCS1. (See Figure 6)
NOTE: A padlock or similar device may be used to provide
additional security.
Figure 6
Adjustments
The PACCS1 allows for vertical adjustment of the shelf to
provide a flush installation against the bottom of the display.
To adjust shelf vertical position:
1. Loosen two button head cap screws securing adjustment
bracket to shelf bracket using 1/8" hex wrench (K). (See
Figure 7)
5
(C)
(S) x 2
(M) x 2 6
(P) x 2
3
4
2
Latching Flag
Open
Display
Open Flag
Close Flag
2
3
4
5
Latching Flag
Optional locking device placed here
