Installation Instructions TA300
7
6. Use two #10-24 x 1/2" button head cap screws (F) and two
#10 washers (G) to connect lower horizontal bracket (A) to
either attachment bracket (B), TA350 bracket (if also using
center channel) or other accessory bracket. See
corresponding installation instructions for details if another
bracket is being installed. (See Figure 9)

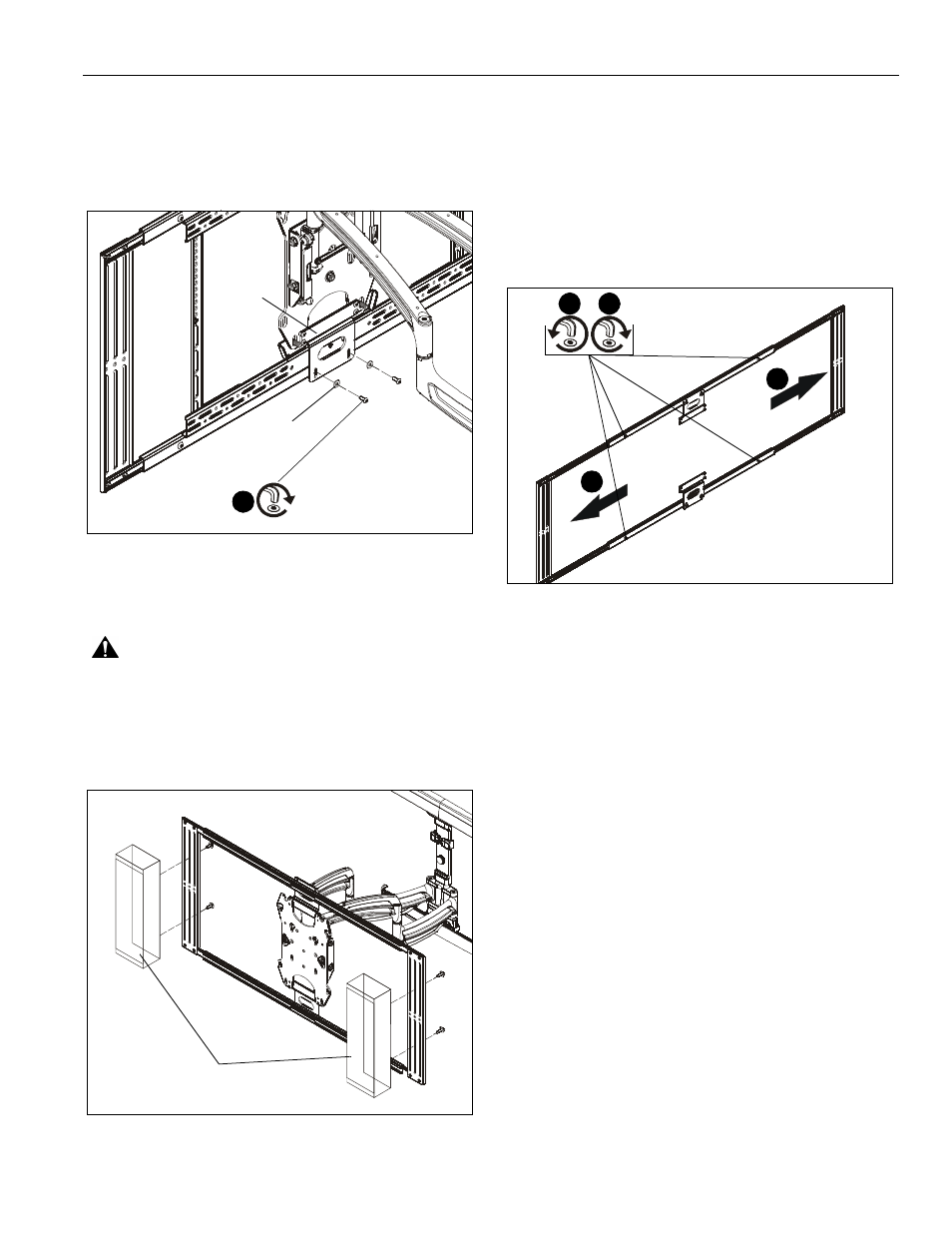

Figure 9
7. Attach speakers to speaker brackets (C) appropriate
hardware (not provided). Adjust extension of horizontal
brackets as needed. (See Figure 10)
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the combined weight of
all equipment and accessories mounted on the TA300
bracket does not exceed 20 lbs (9.08 kg) or 10 lbs (4.54 kg)
per speaker.
Figure 10
Adjustments
Extension Adjustment
1. Loosen four extension adjustment screws on horizontal
brackets. (See Figure 11)
2. Adjust speaker brackets to desired horizontal positions.
(See Figure 11)
3. Tighten four extension adjustment screws when desired
mounting position is reached. (See Figure 11)
Figure 11
