CHIEF YSM2 User Manual
Page 6
YSM2
Installation Instructions
6
Steel Stud Installation - Site Requirements
WARNING:
IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY
OR DAMAGE TO EQUIPMENT! The figure below identifies the minimum reguirements for installation of display mounts onto a
steel stud structure. If the structure or its components do not meet these requirements contact the mount manufacturer for specific
instructions before attempting installation. It should also be noted that no other equipment should be mounted to the same stud.

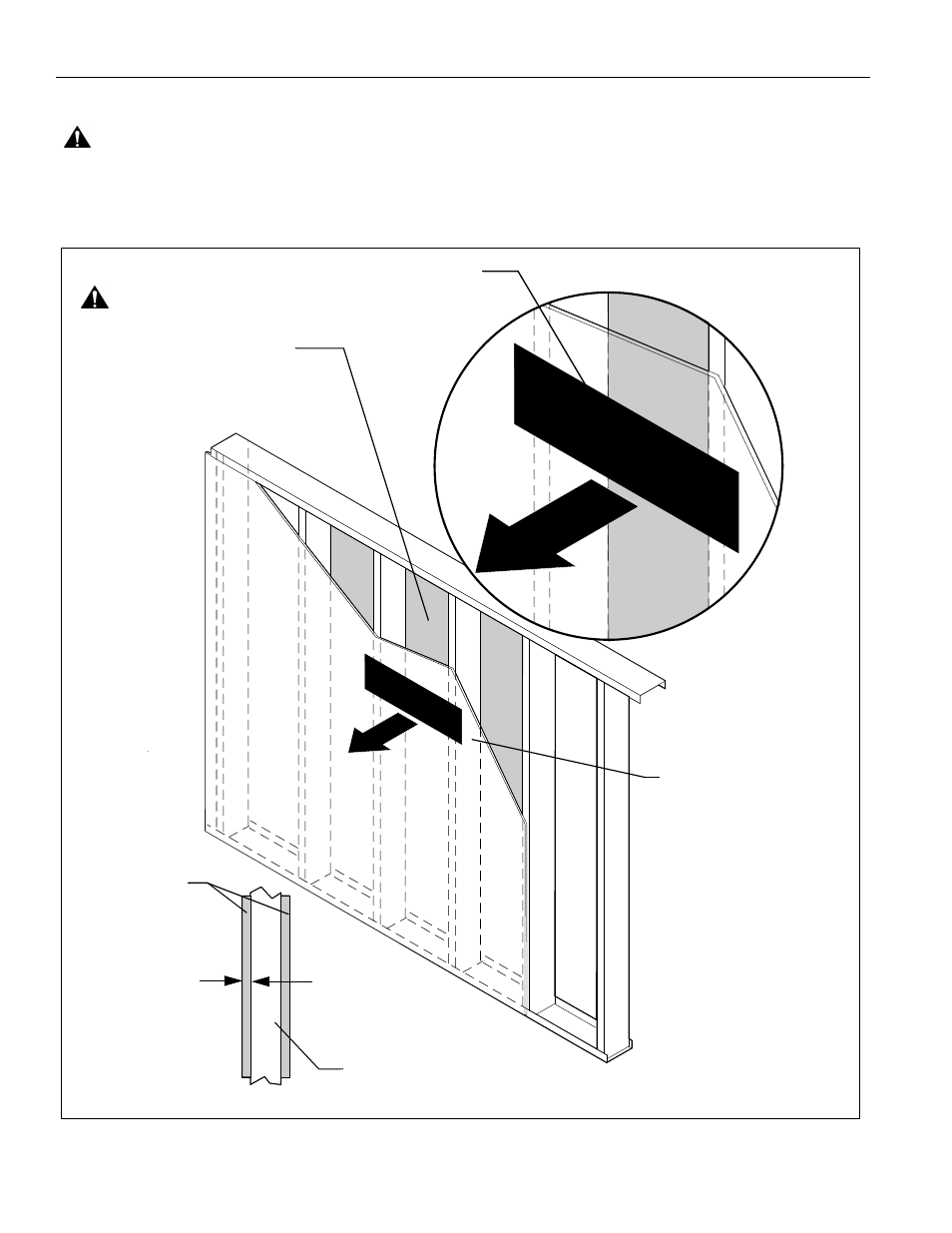

Figure 3
If back side of wall is unfinished, drywall must be installed
to a minimum of one stud left and right of the stud(s)
being used to install the mount.
Steel Stud (2 x 4 / 25ga minimum)
Drywall
5/8" minimum
Drywall Thickness
Display Mount Installation Location
FRONT
(Both Sides of Stud)
(Must be centered over two studs)
There must be a minimum of
1-7/8" (48mm) clearance
inside wall
