CHIEF PAC252 User Manual
Page 5
Installation Instructions
PAC-252
5
Assembly And Installation
1.

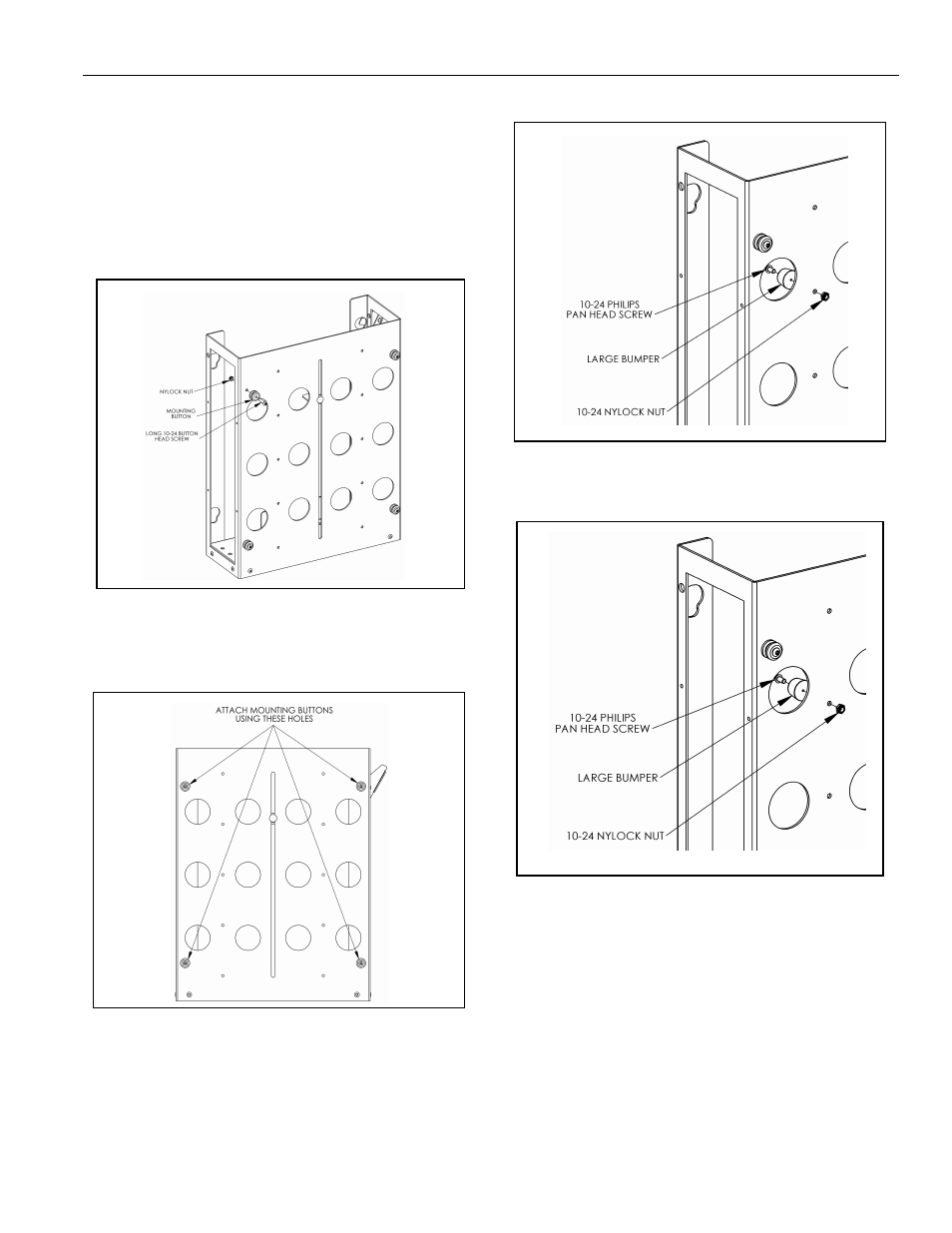

Using a 10-24 button head cap screw (G) inserted from
inside of bracket, secure mounting button (E), with
chamfered hole of mounting button (larger surface) facing
bracket, to bracket. Repeat with other three mounting
buttons. (See Figures 1 & 2)
Figure 1
Figure 2
2.
Attach large bumpers (D), making sure the CPU will rest
against the bumpers when installed. (See Figures 3 & 4)
Figure 3
Figure 4
