Installation Instructions FCA102
5
INSTALLATION
NOTE: The FCA102 may be used to support a surge adapter
or other components that don’t exceed the weight
capacity of the FCA102.
1. Put Velcro tabs (C) together so there are 4 squares of
Velcro.
2. Remove paper from one side of each of the four Velcro
squares.
3. Attach Velcro squares to the left and right brackets
(A and B). (See Figure 1)

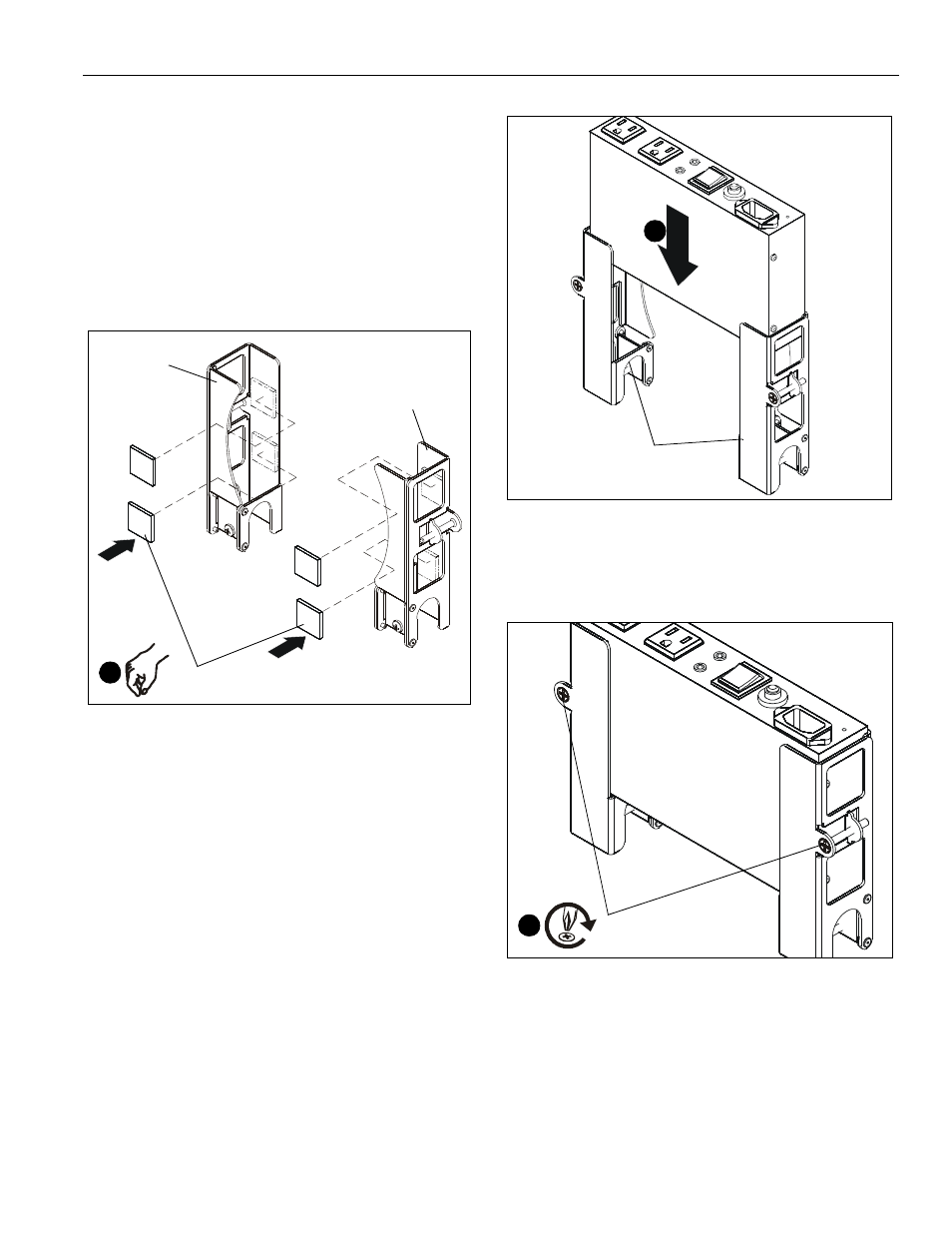

Figure 1
4. Remove paper from Velcro squares, lower and press the
surge adapter, or other component, against the left and right
brackets. (See Figure 2)
5. Rest the surge adapter on the inside legs of the brackets.
(See Figure 2)
Figure 2
6. Tighten the brackets against the surge adapter by
tightening the Phillips flat machine screws with Phillips
screwdriver. (See Figure 3)
Figure 3
7. Place the left and right brackets with the surge adapter onto
the wall mount.
NOTE: The brackets may be placed in several areas of the wall
mount. See the DIMENSIONS drawings for various
placement options.
(A)
(B)
3 (C) x 4
4
Inside
Legs
6 x 2
