Installation Instructions

Model: FSA-1015

ASSEMBLY (PART 2)

WARNING: Failure to use proper fasteners can result
in serious personal injury or damage to equipment!
Screws (30 and 40) supplied for convenience only.

1. Using Phillips screwdriver install FSA-1015 assembly

to equipment rack using four screws (30, 40, or other

fasteners as applicable)(See Figure 10). Tighten

fasteners.

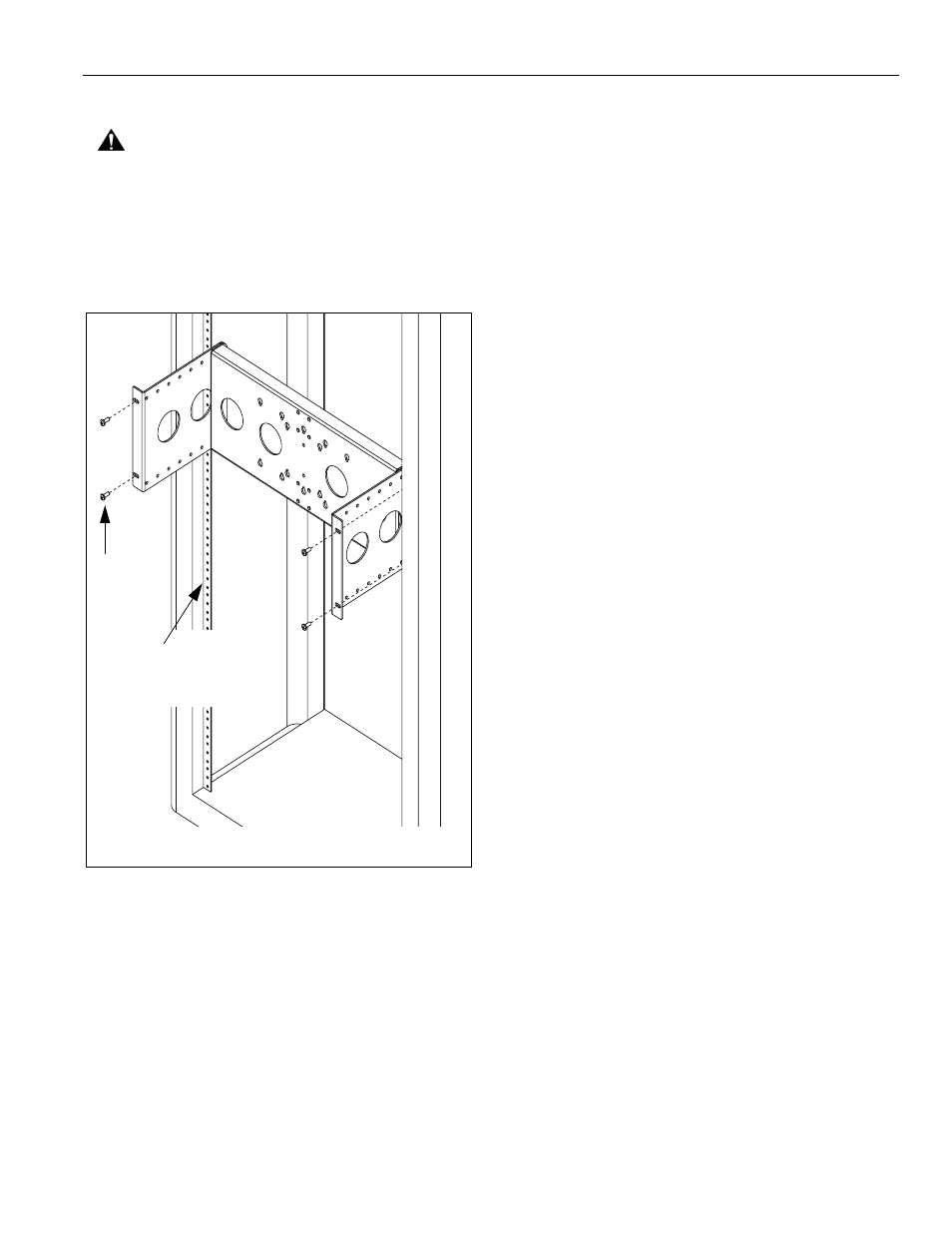

Figure 10: Install FSA-1015 to Equipment Rack

2. Return to INSTALLATION OPTION "A," "B," "C," or

"D," as applicable.

30 or 40
(4 places)

Equipment Rack Rail
(left side shown;
right side similar)

NOTE: Display / mount not shown for clarity.
