MFM, PFM, MFQ, PFQ Installation Instructions
4

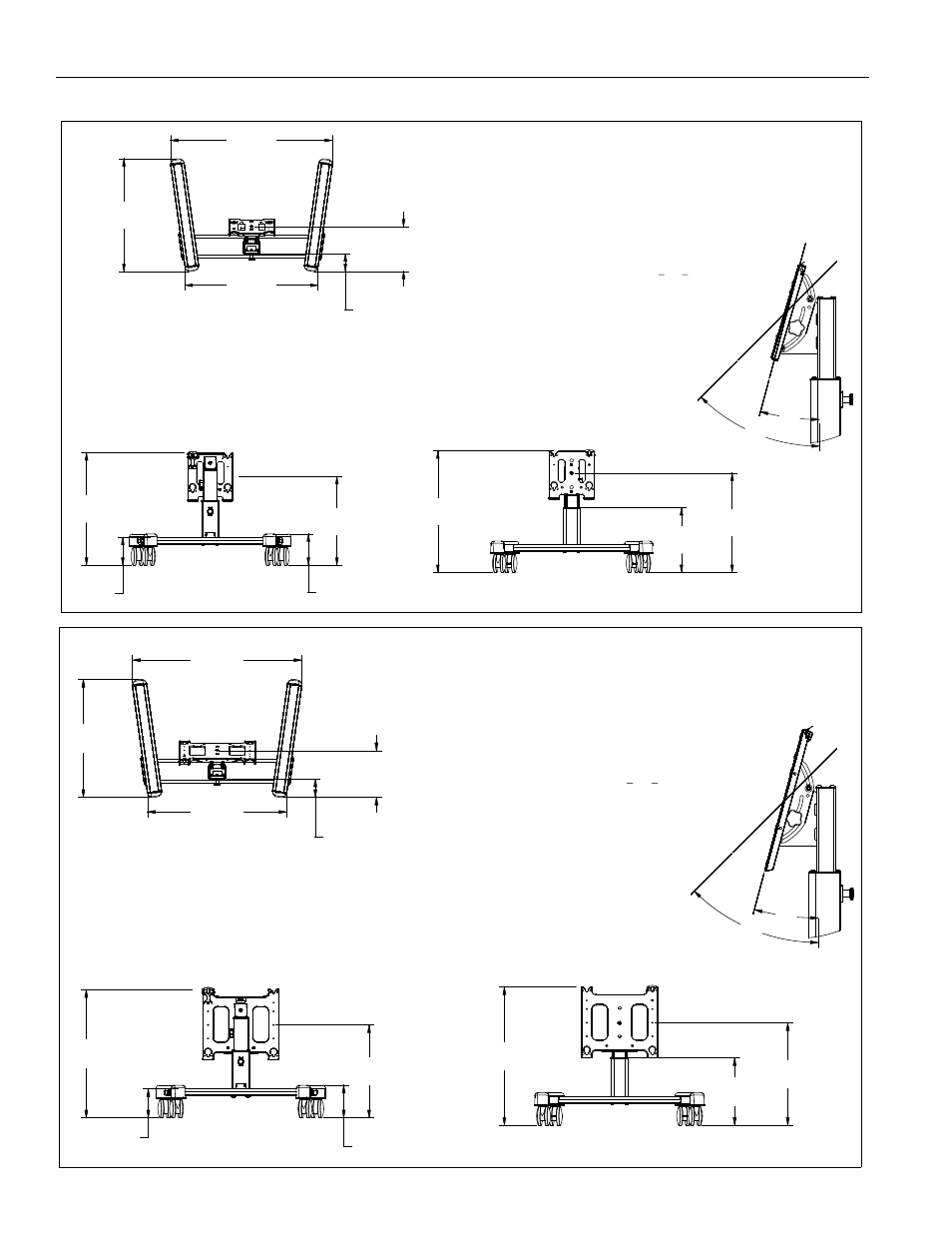

DIMENSIONS
[918]
36-1/8”
[640]
25-1/4”
[755]
29-3/4”
[100]
4”
[254]
10”
[637]
25-1/8”
[157]
6-1/4” [177]
7”
[511]
20-1/8”
[688]
27-1/8”
[365]
14-3/8”
[563]
22-1/8”
15°
45°
NOTE: CUSTOM INTERFACE BRACKET
NOT SHOWN. THE CUSTOM INTERFACE
BRACKET NEEDED FOR YOUR DISPLAY
WILL ADD BETWEEN ½”AND 2” IN DEPTH
AND MAY AFFECT LOCATION OF DISPLAY
ON THE MOUNT. SEE PSBU DRAWING ALSO.
WEIGHT CAPACITY: 125 LBS
HEIGHT ADJUSTMENT: 20-1/8” TO 22-1/8” IN 2” INCREMENTS
(GROUND TO MIDDLE
OF SCREEN)
TILT/ROLL/YAW: +15° TO +45°/ 0°/ 0°
ALL MEASUREMENTS IN: [MILLIMETERS]
INCHES
+ +
MFQ
[918]
36-1/8”
[640]
25-1/4”
[755]
29-3/4”
[100]
4”
[253]
10”
[695]
27-3/8”
[157]
6-1/4”
[177]
7”
[504]
19-7/8” [556]
21-7/8”
[365]
14-3/8”
[751]
29-1/2”
15°
45°
NOTE: CUSTOM INTERFACE BRACKET
NOT SHOWN. THE CUSTOM INTERFACE
BRACKET NEEDED FOR YOUR DISPLAY
WILL ADD BETWEEN ½”AND 2” IN DEPTH
AND MAY AFFECT LOCATION OF DISPLAY
ON THE MOUNT. SEE PSBU DRAWING ALSO.
WEIGHT CAPACITY: 200 LBS
HEIGHT ADJUSTMENT: 19-7/8” TO 21-7/8” IN 2” INCREMENTS
(GROUND TO MIDDLE
OF SCREEN)
TILT/ROLL/YAW: +15° TO +45°/ 0°/ 0°
ALL MEASUREMENTS IN: [MILLIMETERS]
INCHES
+ +
PFQ
