Dimensions – CHIEF MFC Series User Manual
Page 3
MFC Series
Installation Instructions
3

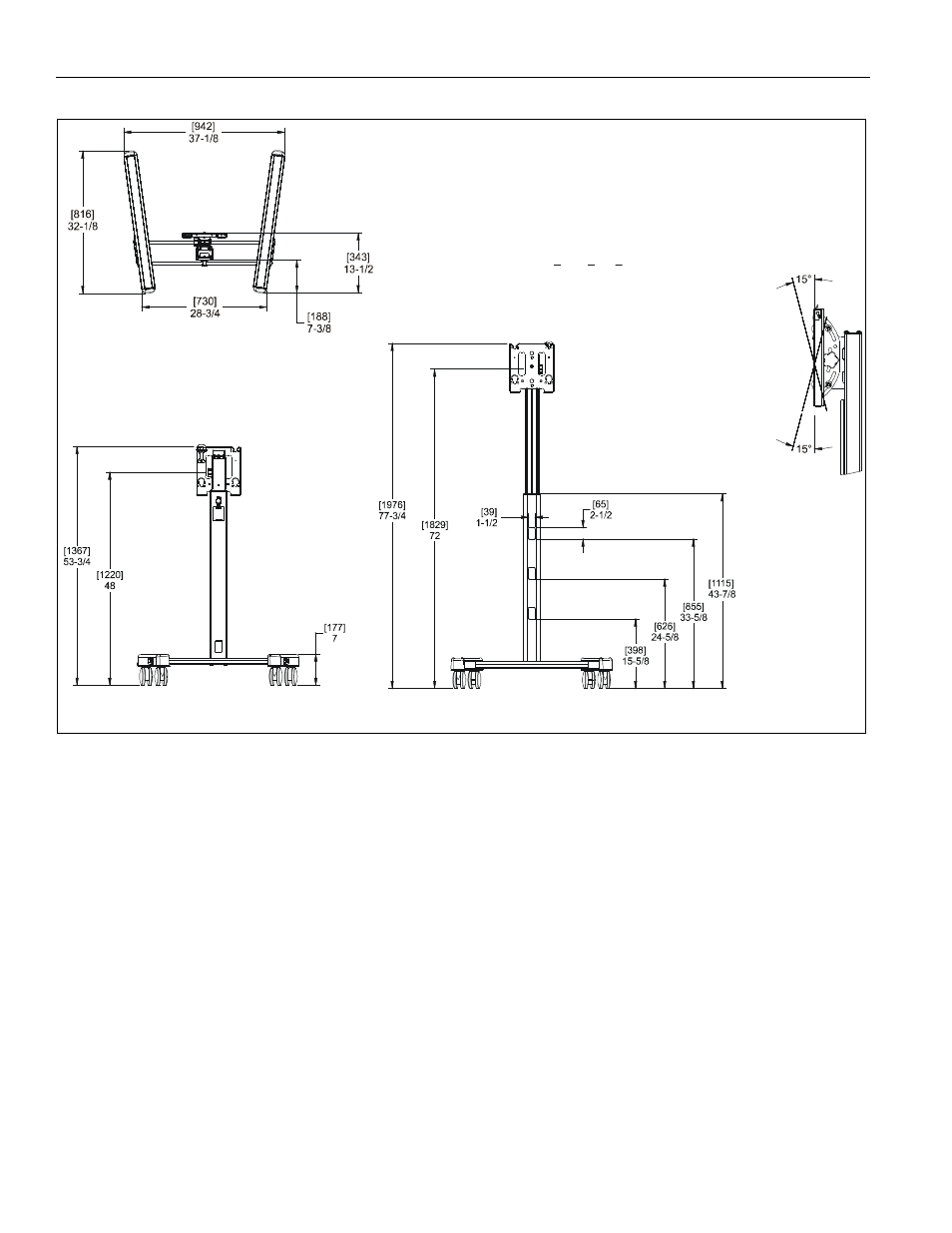

DIMENSIONS
NOTE: MSBU INTERFACE BRACKET
NOT SHOWN. THE MSBU INTERFACE
BRACKET NEEDED FOR DISPLAY WILL
ADD 1” IN DEPTH AND MAY AFFECT
LOCATION OF THE DISPLAY ON THE
MOUNT.
HEIGHT ADJUSTMENT: 48” TO 72” IN 2” INCREMENTS
[GROUND TO MIDDLE OF SCREEN]
TILT / ROLL / YAW: 15° / 0° / 0°
+
+
+
DIMENSIONS: [MILLIMETERS]
INCHES
