Installation Instructions

MFC Series

11

Removing Display from Cart

1.

Remove bolt or padlock from faceplate (if used).
(See Figure 15)

NOTE:

The pin may have been used as a more permanent

locking device. If so, remove nut and pin and move
from the lower holes to the upper holes.

2.

Pull back on flag on upper mounting hole and press pin
down into "Open" position. (See Figure 15)

WARNING:

EACH DISPLAY MAY WEIGH IN EXCESS OF

40 LBS! Always use two people and proper lifting techniques
when installing or positioning display on stand.

3.

Carefully lift display from cart.

4.

Lift up on pin and place flag back against faceplate to return
it to "Closed" position. (See Figure 15)

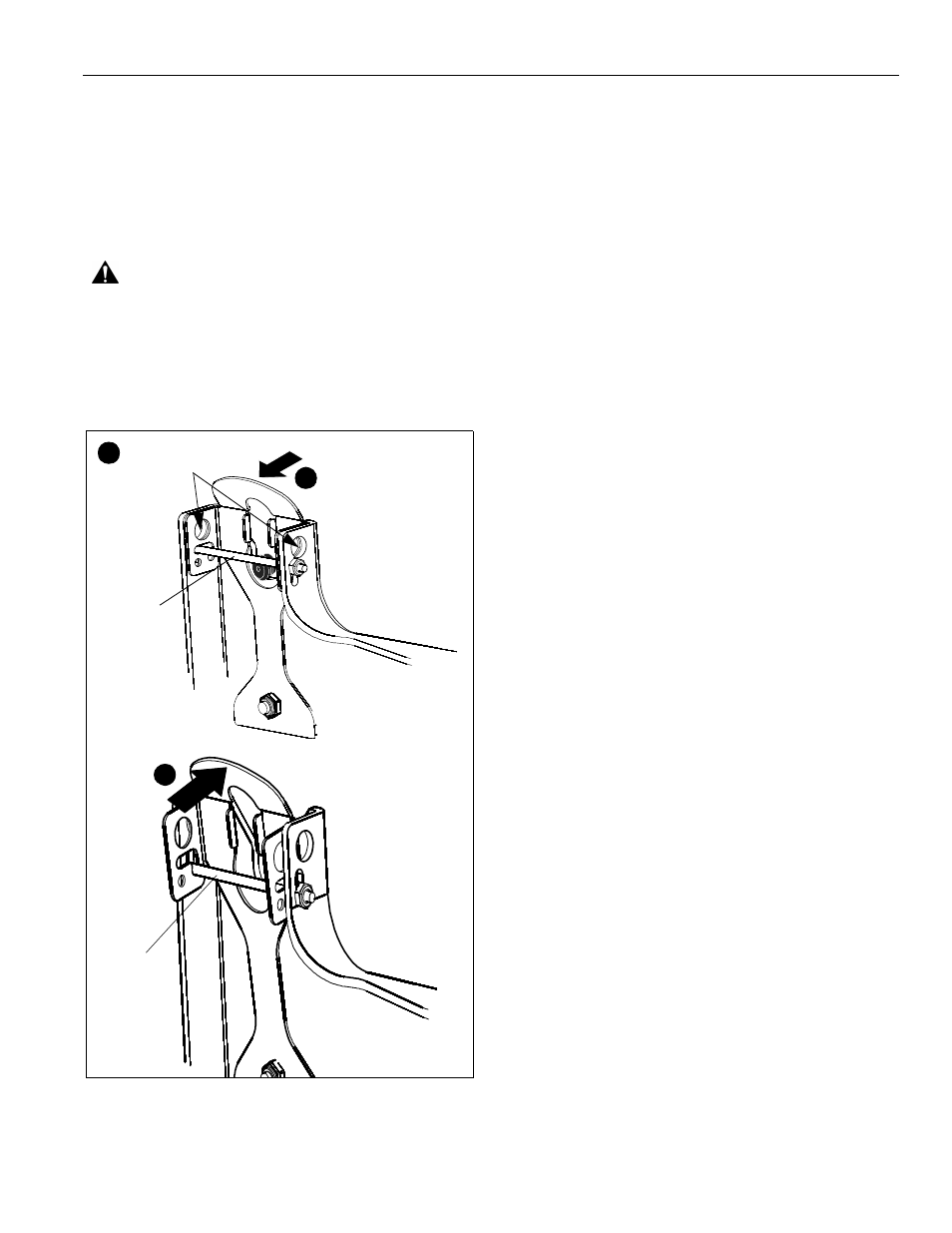

Figure 15

2

1

Remove bolt
or padlock
if used

Pin in
"Open"
position -

Pin in
"Closed"
position -

4

move to
"Open"
position to

move to
"Closed"
position

remove
display

after display
is removed.
