MCM1U / LCM1U / MCM1US / LCM1US

Installation Instructions

10

2.

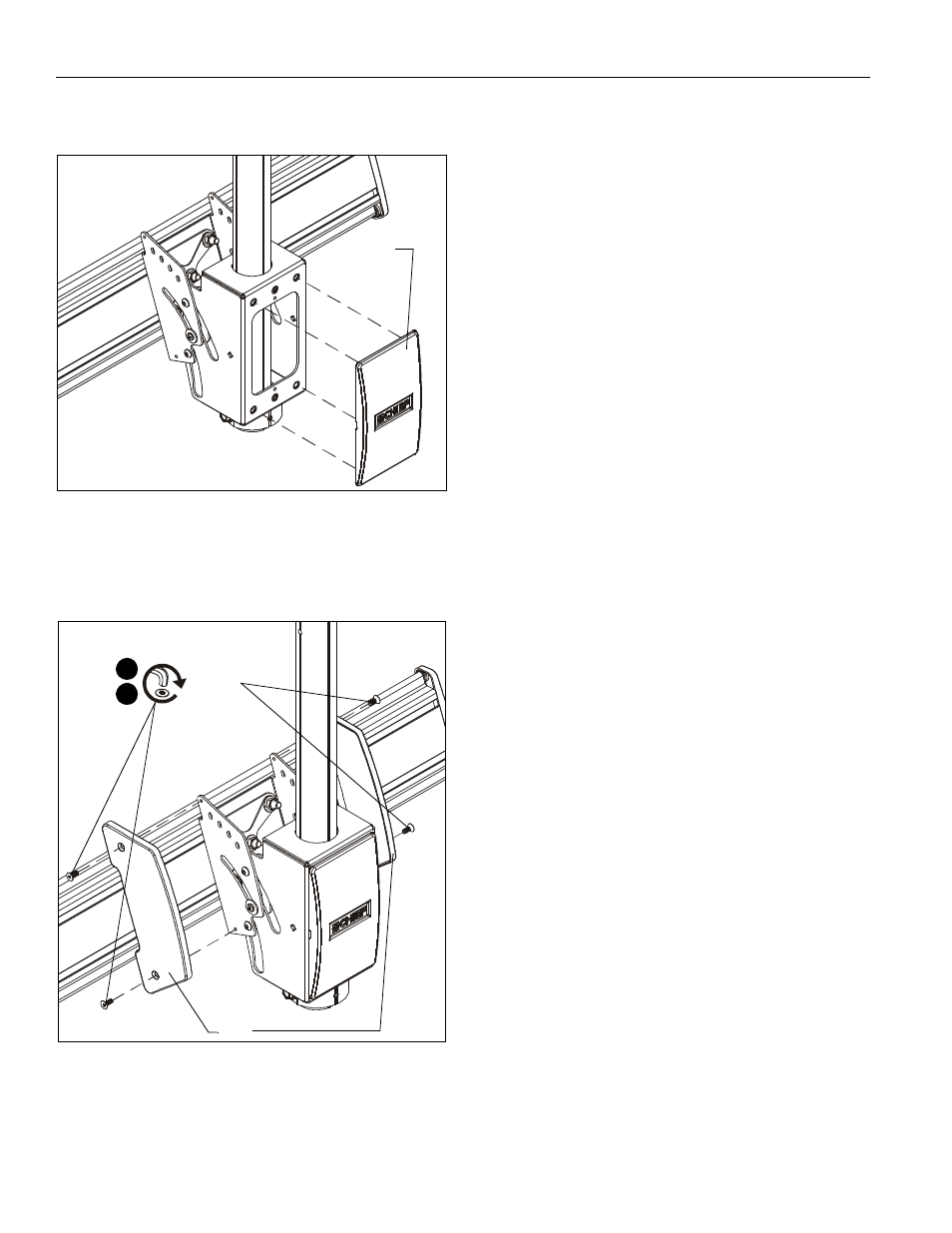

Install back cover (DD) into four holes on back of ceiling
mount. (See Figure 14)

Figure 14

3.

Install one side cover (EE) onto side of ceiling mount using
two 10-24 x 1/2" flat head screws (W). (See Figure 15)

4.

Repeat for other side of ceiling mount.

Figure 15

(DD)

(EE)

(W) x 4

3

4
