CHIEF TPM-2000 Series User Manual

Page 4

Model: TPM-2000 SERIES

Installation Instructions

INSTALLATION

MOUNT INSTALLATION

Install mount to pole:

NOTE: See instructions that come with Chief Pole Kit for

installation details.

•

Vertical Pole: Use optional Chief Pole Kit TPK-1
(for 1"-2" O.D. poles) or TPK-2 (for 2"-3" O.D.
poles) (see Figure 2). Ensure mount is properly
oriented (see Figure 4).

•

Horizontal Pole: Use optional Chief Pole Kit TPK-
1 (for 1"-2" O.D. poles)(see Figure 3). Ensure
mount is properly oriented (see Figure 5).

NOTE: Horizontal pole installation is not compatible with

Pole Kit TPK-2.

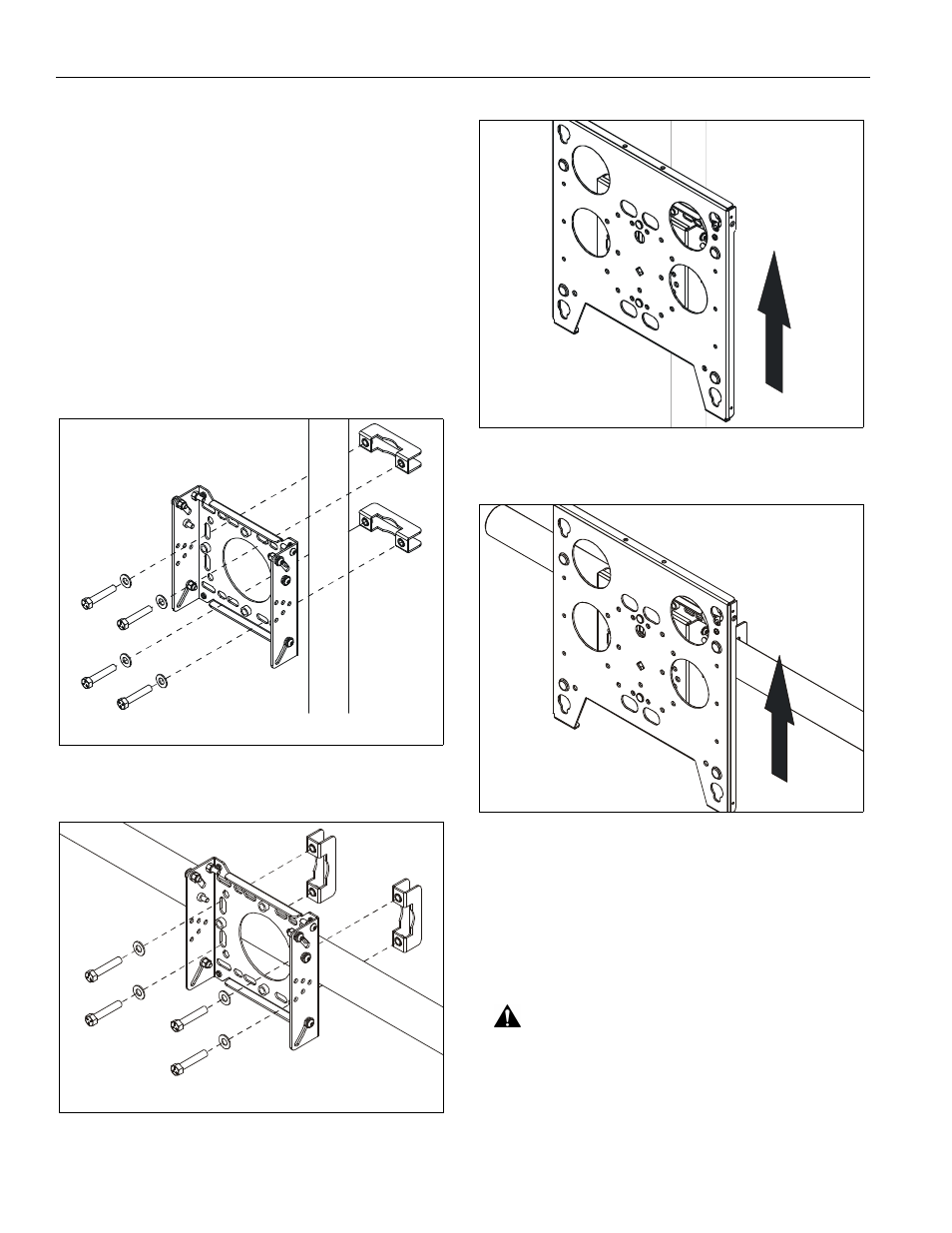

Figure 2: Vertical Pole Installation (Typical)

Figure 3: Horizontal Pole Installation (Typical)

Figure 4: Vertical Mount Orientation

Figure 5: Horizontal Mount Orientation

DISPLAY INSTALLATION

NOTE: Interface bracket may be required.

If required, interface bracket must be installed
prior to display installation.

WARNING: Display may be heavy! Ensure display
can be safely lifted and maneuvered as required to
attach to mount. Failure to take adequate precautions
can result in serious personal injury or damage to
equipment!

NOTE: Faceplate and Tilt Plate not shown for clarity.
