RSA Projector Mounts Installation Instructions
6
INSTALLATION

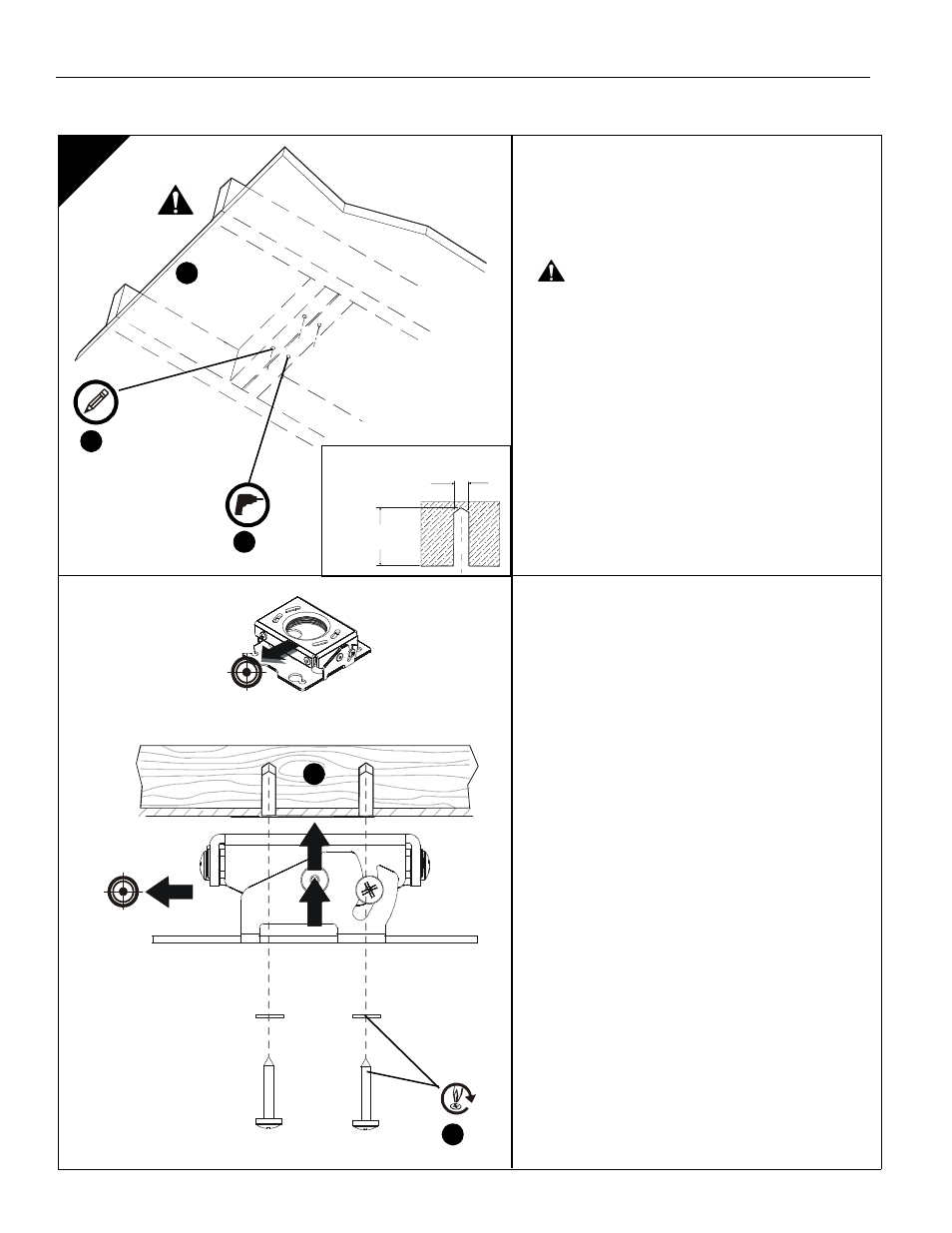

1a Wood Stud Installation
1. Carefully determine required mounting location.
IMPORTANT ! : This will require knowing the lens
to screen distance. See projector specifications for
details on determining this distance.
WARNING: IMPROPER INSTALLATION CAN
RESULT IN SERIOUS PERSONAL INJURY OR
DAMAGE TO EQUIPMENT! Structural members
MUST be capable of supporting five times the
combined weight of all equipment being mounted.
IMPORTANT ! : The RSA mounts are designed to be
mounted to double 2" x 4" wood stud cross bracing
(1-1/2" on center) between two ceiling joists.
2. Using the RSA as a guide, mark four mounting hole
locations with a pencil or similar tool. Hole locations
must be centered on 2" x 4" cross braces.
3. Drill four 3/32" (2.5mm) dia. pilot holes to a depth of
1-3/4" (45mm) deep.
4. Align four mounting holes in RSA with four pilot
holes.
IMPORTANT ! : Make sure mount is properly
oriented towards target before securing to
structure.
5. Secure RSA to structure using four #10 flat washers
and four #10 x 3" Phillips head wood screws (not
included).
X4
X4
3
1
2
4
Ø 2.5mm
(Ø 3/32”)
45mm
(1-3/4”)
5
(A)
x 4
