CHIEF RSA Series - Manual (Page 12)

RSA Projector Mounts Installation Instructions
12

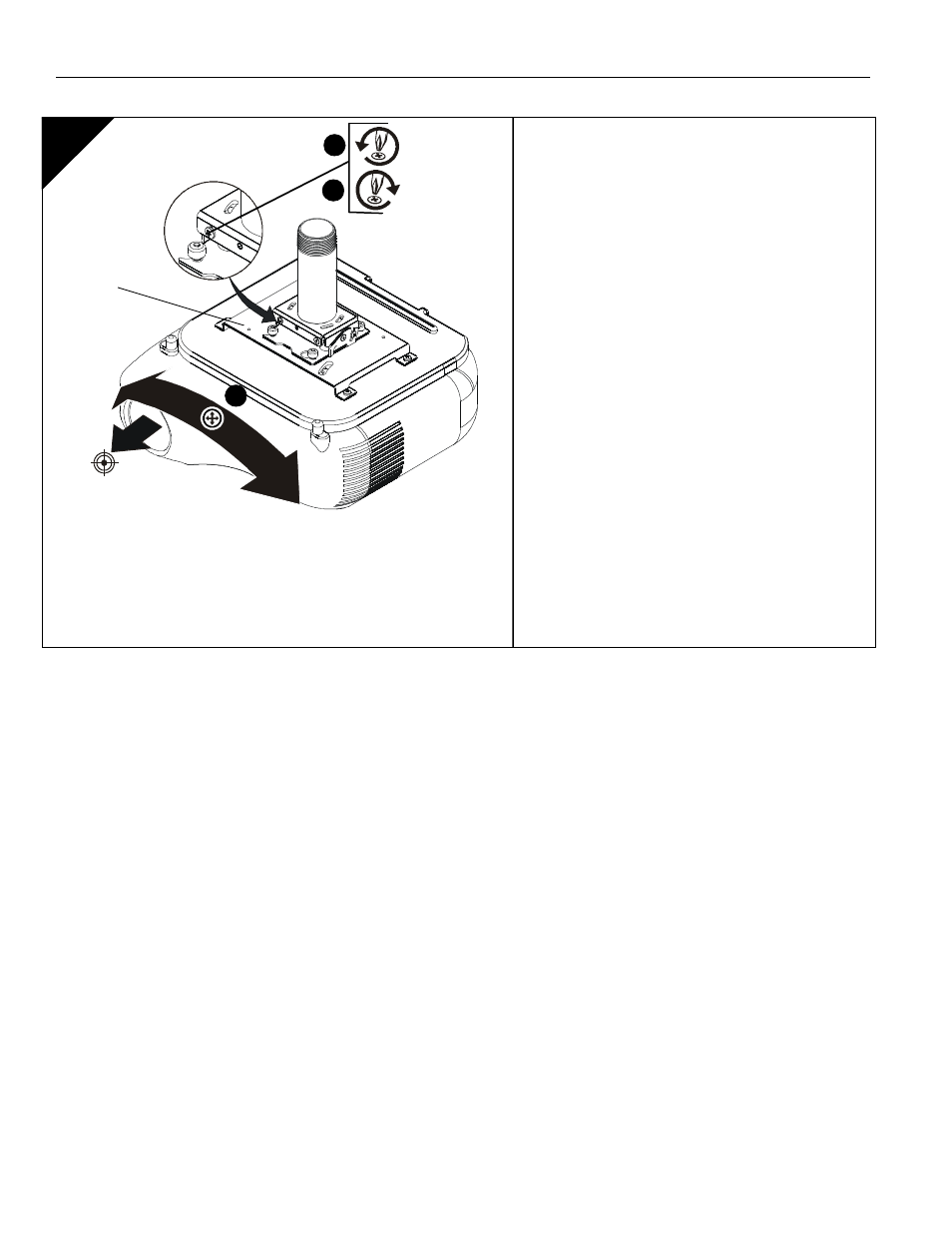

Roll Adjustment
1. Loosen roll adjustment locking screw on each side
of the RSA projector mount using a #2 Phillips
screwdriver.
2. Adjust projector to desired roll position.
3. Tighten roll adjustment locking screw on each side
of the RSA projector mount using a #2 Phillips
screwdriver.
3b
1
3
2
Example Only
(Interface bracket
varies dependent
on projector model)
