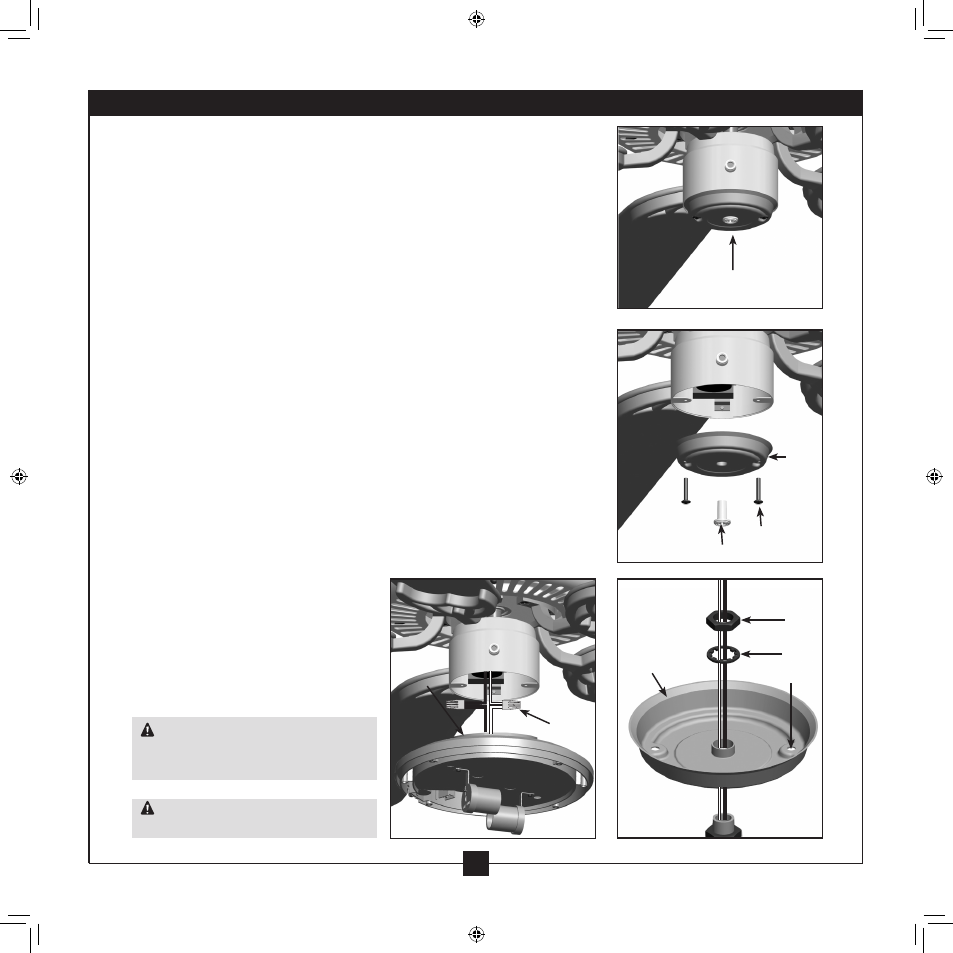

1. Uninstall the two attachment screws from the switch housing cover.
2. Remove the plug or screw from the center of the switch housing cover.
3. Ensure the gasket is in place on the light kit mounting plate. Thread the
switch housing cover onto the wires from the light kit. Align the large
ends of the keyholes in the light kit with the screw holes in the switch
housing cover. The gasket should now be sandwiched securely between
the light kit mounting plate and the switch housing cover. Install the nut
and washer onto the threaded rod from the light kit to secure the switch
housing cover.
4. Finish attaching the light kit to the switch housing cover using the two
attachment screws removed from the lower switch housing and the lock
washers on the red tag. Partially install the screws into the light kit and
the housing. Rotate the housing counterclockwise until the screws are
locked into the narrow ends of the keyhole slots. Securely tighten the two
screws.
5. Remove the wire connectors from the two wires in the switch housing
labeled “Connect Light Here” or “For Light Use.” One wire is white and the
other wire is black with a white stripe.
To connect the wires, hold the bare metal leads together and place a wire
connector over them, then twist the wire connector clockwise until tight.
Connect the black wire with a white stripe from the switch housing to
the black wire from the light kit. Connect the white wire from the switch
housing to the white wire from the light kit. Secure all wire connections
using wire connectors previously
removed.
CAUTION: Be sure no bare metal
wires or wire strands are visible
after making the connections.
WARNING: Improper installation
could cause the light fixture to fall.
Switch
Housing
Cover
Plug
Attachment
Screw
Non-Removable Switch
Housing
Steps 1-2
Steps 3-5
Screw
Hole
Switch
Housing
Cover
Nut
Washer
Step 3
Wires
and Wire
connectors
Switch
Housing
Cover and
Gasket
Step 5
2 • Installing the Light Kit on Fans With Non-Removable Switch Housing
