1 • Installing the Light Kit on Fans With Removable Switch Housings (Continued)
7. Remove the wire connectors from the two wires in the switch housing
labeled “Connect Light Here” or “For Light Use.”
To connect the wires, hold the bare metal leads together and place a
wire connector over them, then twist the wire connector clockwise until
tight.
Connect the black wire with a white stripe from the switch housing to
the black wire from the light kit. Connect the white wire from the switch
housing to the white wire from the light kit. Secure all wire connections
using wire connectors.
8. Reconnect the 9-pin plug connector.
CAUTION: Be sure no bare metal wires or wire strands are visible after
making the connections.
9. Install screws to reattach the lower switch housing to the upper switch
housing.
10. Go to the instructions for installing the bulbs and globe.

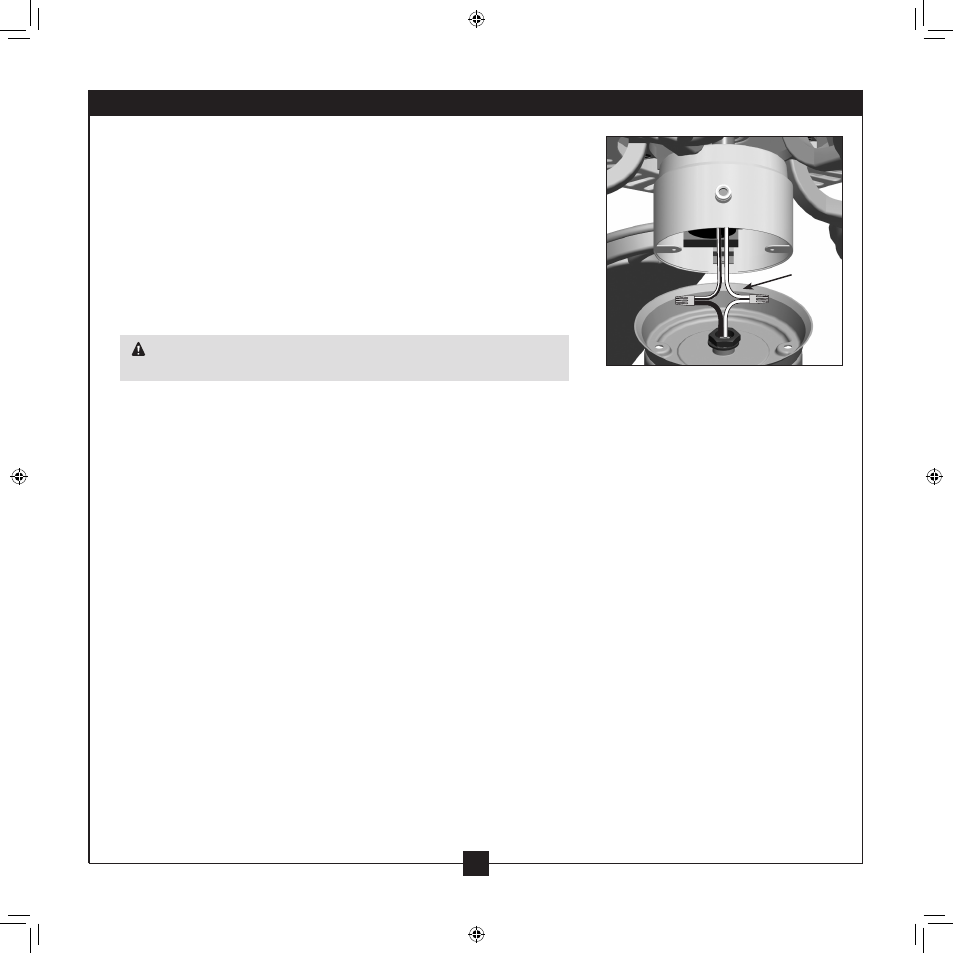

Wires
and Wire
connectors
Step 7
