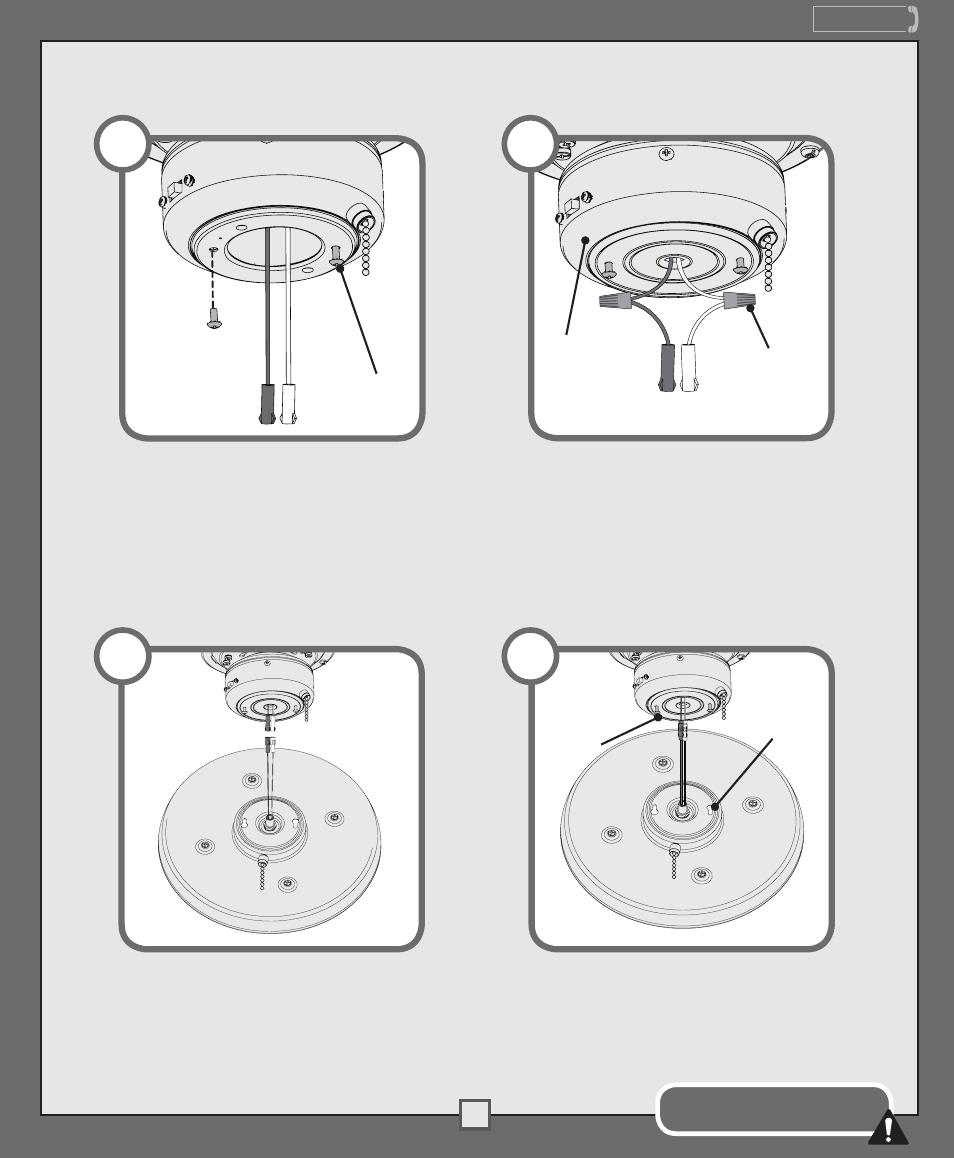

TYPE-A ASSEMBLY INSTRUCTIONS
Partially install the two mounting
screws into the bottom of the
lower switch housing.
Mounting
Screw
If your fan does not have pin connectors
on the wires coming from the switch
housing, install the wiring harness
provided. Using the provided wire
connectors connect the white wire from
the fan to the white wire from the wire
harness and connect the black or blue
wire from the fan to the black wire from
the wire harness.
Wire
Connector
Switch
Housing
Lift the light kit up to meet the
lower switch housing. Wrap keyhole
slots around the screws and twist
counterclockwise. Tighten screws.
Keyhole
Slots
Mounting
Screw
Using the single pin connectors, connect
the black or blue wire from the fan to the
black wire from the light kit. Connect the
white wire from the fan to the white wire
from the light kit.
1
3
2
4
Do not allow the light kit to hang
only by the wire connections!
