3-7. read the canopy onto the wires from the fan.
3-8. read the pipe ball assembly onto the wires from the fan.
3-9. Loosen the square head set screw in the pipe. Screw the pipe ball
assembly onto the threaded pipe from the motor. Retighten the
set screw in the pipe ball assembly, using a wrench or pliers.
CAUTION: e adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
WARNING: Do not carry or lift fan by canopy.
3-10. Lift the fan and place the hole in the canopy over the ceiling
plate hook.
3-11. Align the slot on the ball with the tab on the hanger bracket and
place the ball into the hanger bracket.
Go to 4 • Wiring the Fan.
WARNING: Fan may fall if not assembled as directed in these
installation instructions.

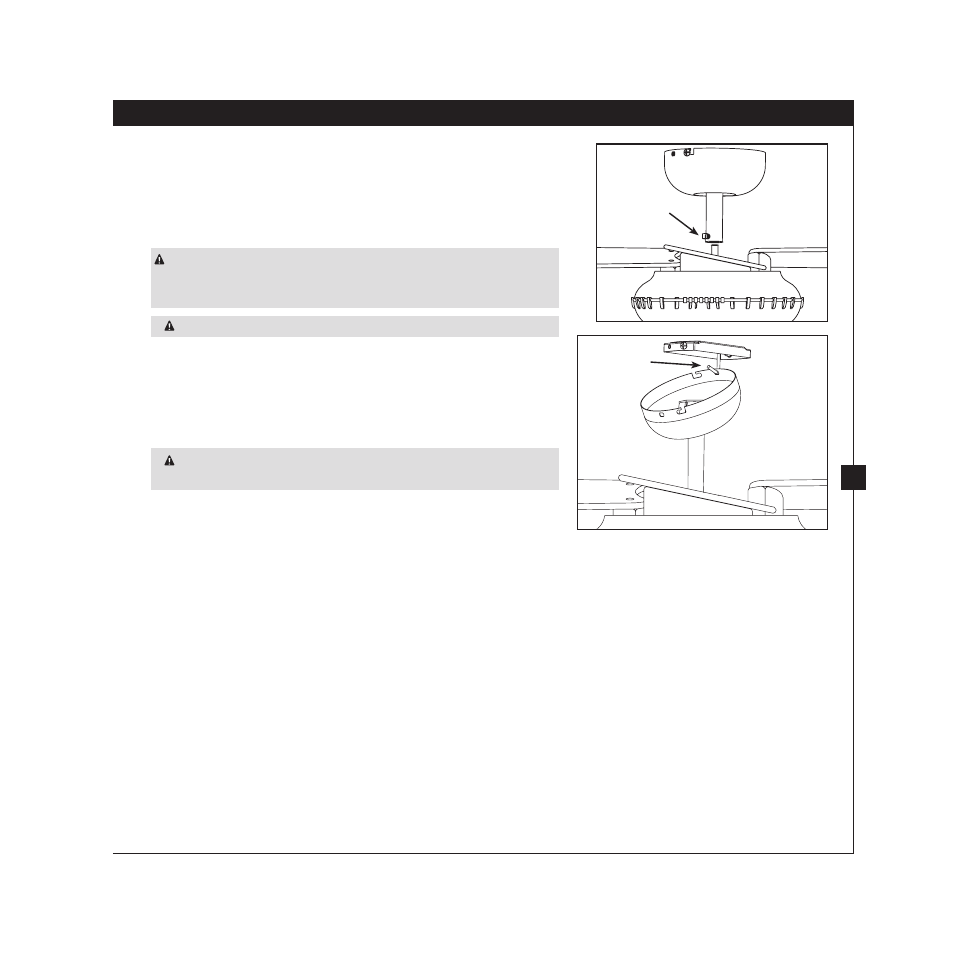

3 • Assembling and Hanging the Fan
Step 3-10
Step 3-9
Square
Set Screw
Ceiling
Plate
Hook
