8 • Completing Your Installation With or Without a Bowl Light Fixture (Continued)
Uninstalling the Light Fixture
8-14 . To uninstall the light fixture, first disconnect the plug connectors
between the black wire and the red wire .
8-15 . Disconnect the plug connectors between the two white wires .
8-16 . Remove the two screws attaching the light kit to the lower
switch housing .
8-17 . Remove the light fixture from the lower switch housing, pulling
disconnected wires through the hole in the center of the lower
switch housing .
Note: When removing the wires, pull the thin plug connector
(male) through first, and then pull the other plug connector
(female) through the hole .
8-18 . Install the dummy terminals (included in the sack parts) on the
two disconnected wires in the lower switch housing .
8-19 . Install the switch housing cap and plug button to the lower
switch housing .
8-20 . Once you have uninstalled the light fixture, continue
with step 8-6 .

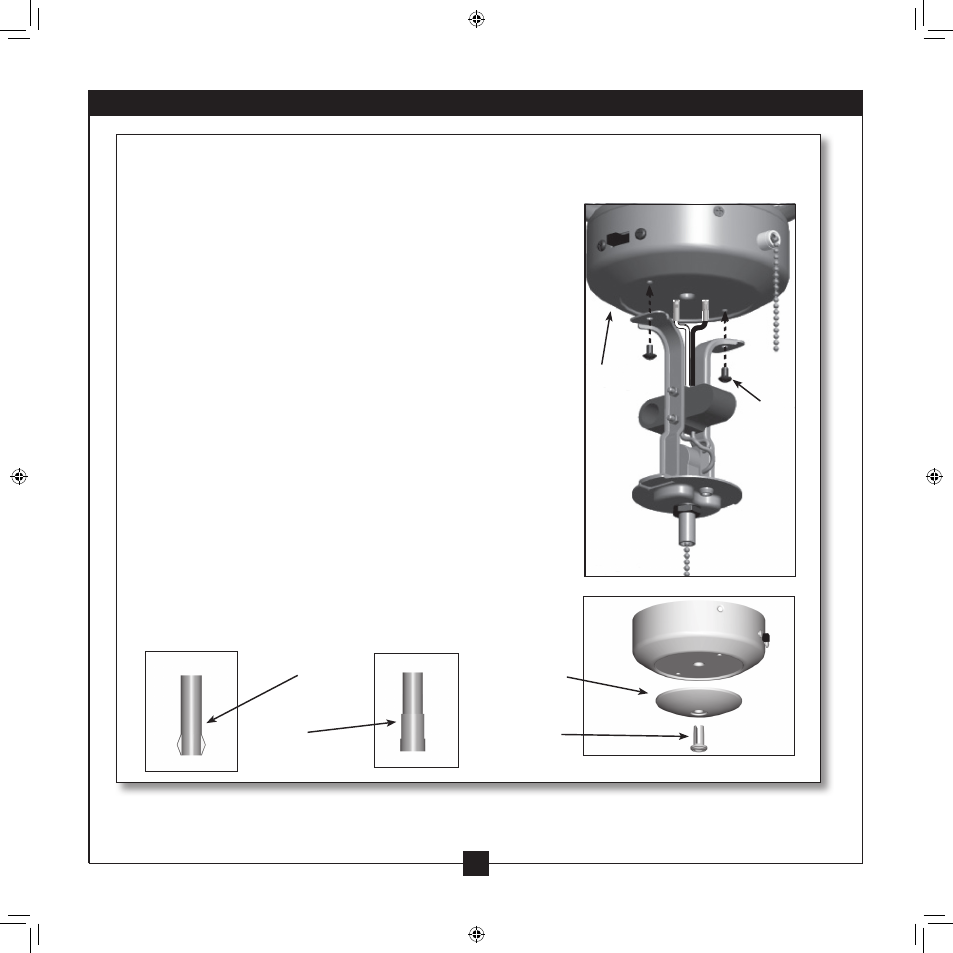

Male Dummy
Terminal
Female Dummy
Terminal
Step 8-19
Cap
Plug Button
Step 8-16
Lower Switch
Housing
Screw
