Your Hunter fan comes with an integrated light fixture assembly and
an optional switch housing cap and plug button . This feature gives
you the option of installing the fan with OR without the included light
fixture . The steps below direct you whether or not you are installing a
light fixture .

WARNING: Use only the light fixture supplied with this fan model .

8-1 . To attach the upper switch housing, partially install two housing

assembly screws into the switch housing mounting plate .

8-2 . Feed the upper plug connector through the center opening of the

housing .

8-3 . Align the keyhole slots in the housing with the housing assembly

screws .

8-4 . Turn the housing counterclockwise until the housing assembly

screws are firmly situated in the narrow end of the keyhole slots .
Install the remaining screw into the housing . Tighten all three
screws firmly .

CAUTION: Make sure the upper switch housing is securely

attached to the switch housing mounting plate . Failure to properly
attach and tighten all three assembly screws could result in the
switch housing and light fixture falling .

8-5 . If you want to install the light fixture, proceed with step 8-6

now .

If you do not want to install the light fixture, you need to

uninstall it now . See “Uninstalling the Light Fixture” on step 8-14 .
Once you have uninstalled the light fixture, continue with step 8-6 .

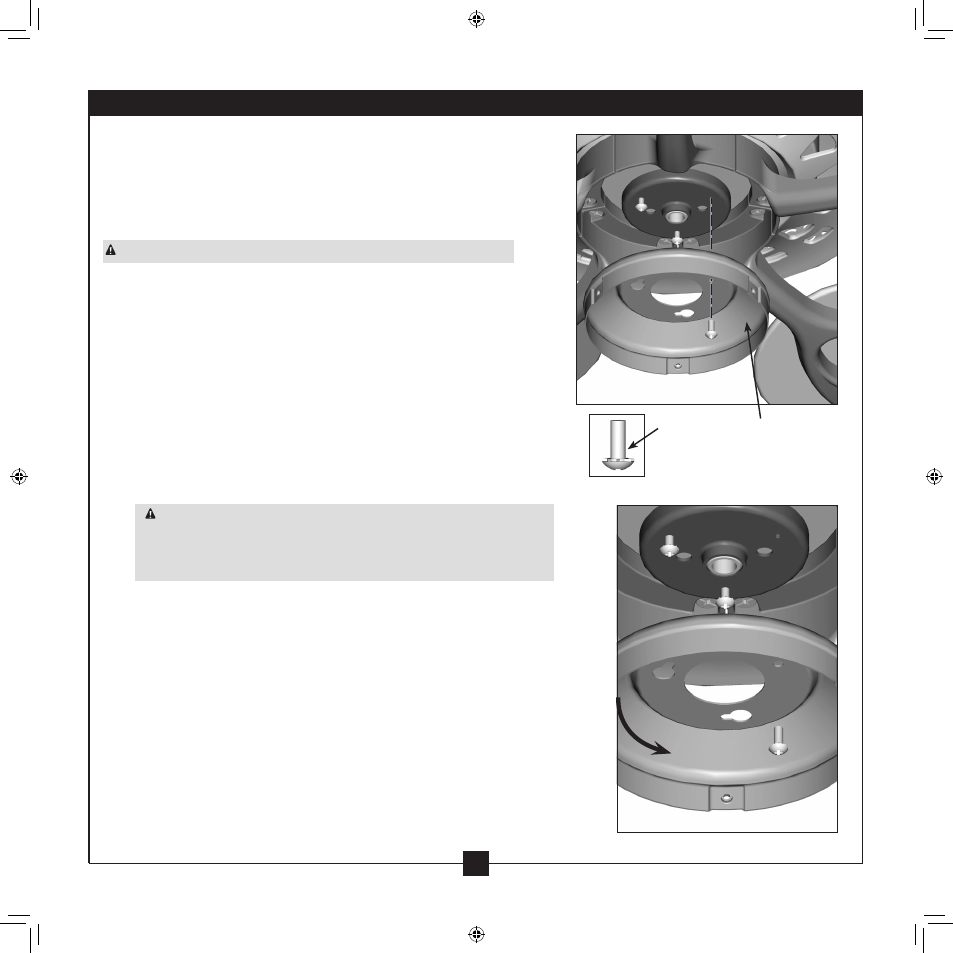

Steps 8-1 – 8-3

Housing

Assembly

Screw

Upper

Switch

Housing

8 • Completing Your Installation With or Without a Bowl Light Fixture
