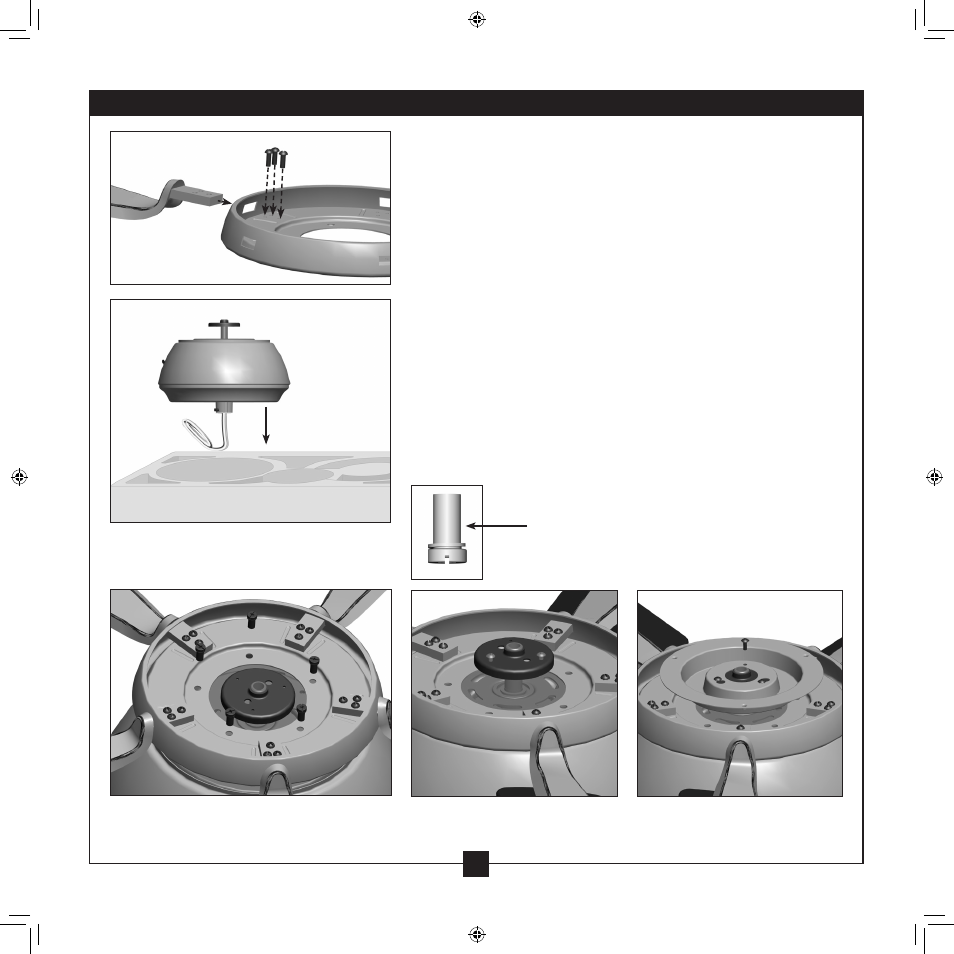

3-1. Insert each blade iron into a hole in the blade ring. Attach
each blade iron to the blade ring using three blade iron
screws.
3-2. Turn the fan over and place it into one of the holes in the
upper packaging.
3-3. Remove the blade ring screws and rubber shipping bumpers
from the motor.
3-4. Attach the blade ring to the bottom of the fan using the five
blade ring screws.
3-5. Partially install two housing assembly screws into holes in
the black disc in the center of the fan.
3-6. Attach the light kit mounting plate to the black disc in
the center of the fan by sliding the keyholes onto the
preinstalled screws.
3-7. Install another housing assembly screw into the third hole in
the mounting plate. Securely tighten all three screws.
Step 3-2
Step 3-1
Step 3-4 Step 3-5 Step 3-7
Blade Ring
Screw
3 • Assembling the Blades
