13
42490-01 • 02/02/12 • Hunter Fan Company
Plug
Connector
Housing
Assembly Screw
Plug
Connector
Detail

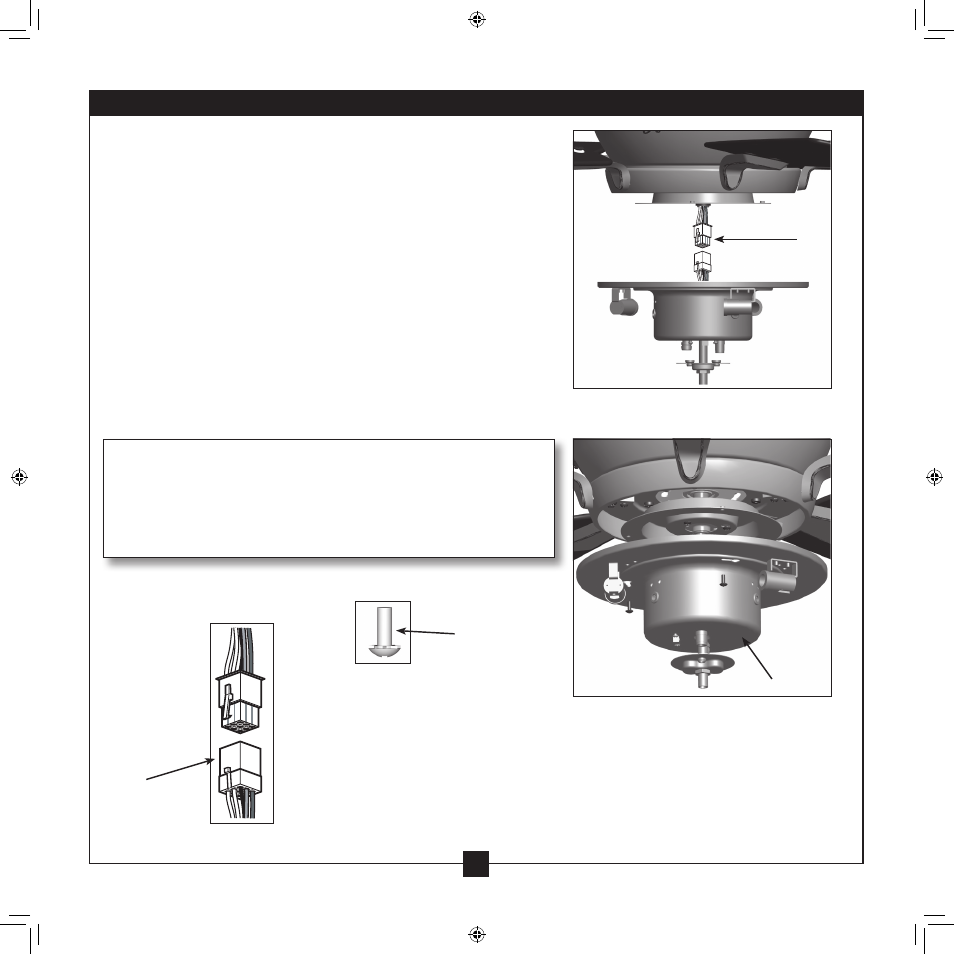

Step 8-1
8-1. Connect the upper plug connector from the fan to the lower plug
connector in the light kit.
Note: Both plug connectors are polarized and will only fit together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
8-2. Align the keyhole slots in the light kit with the partially installed
screws in the mounting plate. Turn the light kit clockwise until the
screws are nestled into the small ends of the keyhole slots.
8-3. Install a housing assembly screw into the third hole in the light kit.
Securely tighten all three screws.
Note: In compliance with US federal energy regulations, this
ceiling fan contains a device that restricts its light output.
Exceeding the wattage limit marked on the MAX wattage
sticker affixed to the light socket(s) may result in fire hazard
or improper operation.
Light Kit
Step 8-2
8 • Completing Your Installation With a Bowl Light Fixture
