Zero-Max Schmidt Offset Shaft Couplings L230C - Manual (Page 2)

Form S0230_09/12/11
MOTION CONTROL PRODUCTS
13200 Sixth Avenue North Minneapolis, MN 55441-5509 PHONE (763) 546-4300 FAX (763) 546-8260
TOLL FREE 1-800-533-1731 www.zero-max.com
Spare Parts for Schmidt Offset Couplings
Item Description Item Number L230C
Quantity Required Per Coupling
Spacer‐thick S952600 12
Washer‐thin S952500 12
Retaining Ring C132037 12
Needle Bearing S500700 12
Link Assembly S700840 6
Long Shaft S853300 3
Short Shaft S852800 6
Rebuild Kits for Schmidt Offset Couplings
Standard rebuild kits are available for Schmidt Offset Couplings. Rebuild kits consist of links with needle bearings, spacers, washers,
and retaining rings.
Coupling Model Repair Kit p/n
L230C S039850

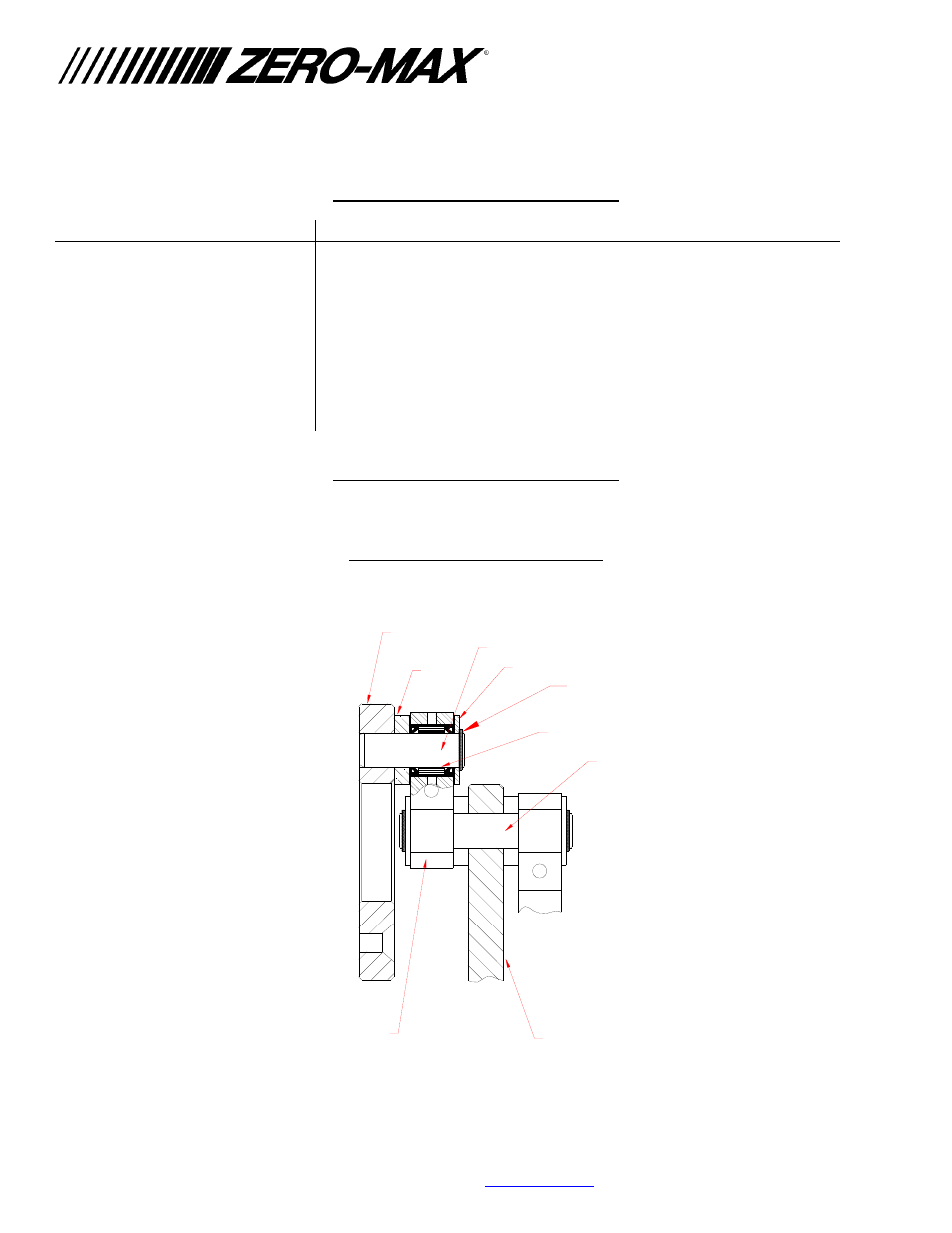

RETAINING RING
WASHER
CENTER DISC
END DISC
SHORT SHAFT
LONG SHAFT
SPACER
LUBE FITTING
(INCL. W/LINK)
NEEDLE BEARING
