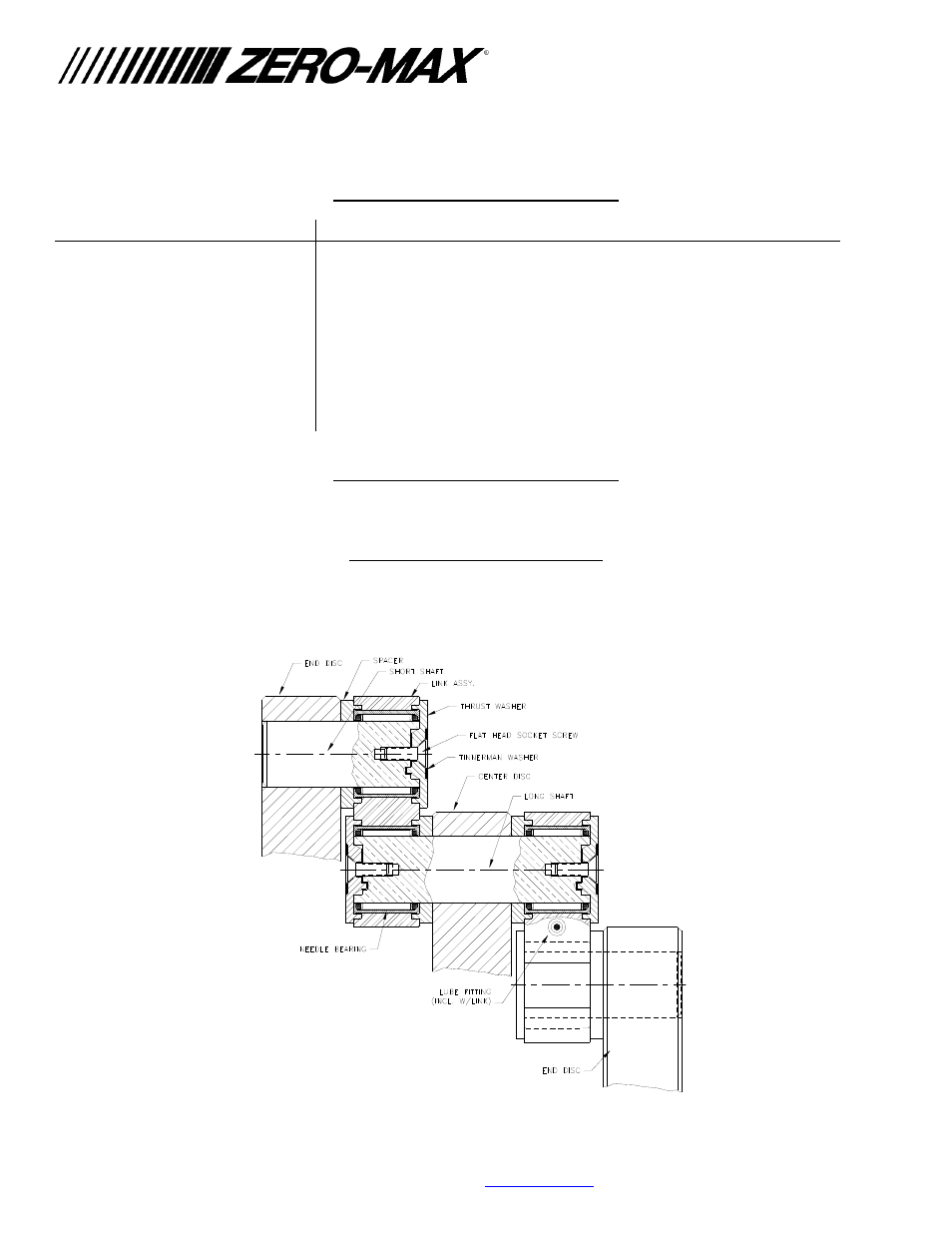

Spare Parts for Schmidt Offset Couplings
Item Description Item Number L312C
Quantity Required Per Coupling
Spacer S953400 12
Thrust Washer S953500 12
Flat Head Screw S457600 12
Tinnerman Washer S952300 12
Needle Bearing S501700 12
Link Assembly S702250 6
Long Shaft S854400 3
Short Shaft S854600 6
Rebuild Kits for Schmidt Offset Couplings
Standard rebuild kits are available for Schmidt Offset Couplings. Rebuild kits consist of links with needle bearings, spacers, thrust
washers, Tinnerman washers, and flat head screws.
Coupling Model Repair Kit p/n
L312C S040770
