J&M Case IH-8010 - Manual (Page 2)

Assembly Instructions (Continued)
Step Four:
Attach the front and side panels to the frame assembly as shown
using eight 1/4” x 4 1/2” bolts and 1/4” lock nuts. (Note: The panel
with the Danger Sticker should be installed as the rear panel.)
Step Five:
Push plastic plugs through plastic retainer lanyards and into existing
holes from inside extension. Fold end of lanyard around lynch pin
ring and snap into place.
Step Six:
Secure panels together by inserting and locking the lynch pin into
the adjacent tab weldment.
Step Seven:

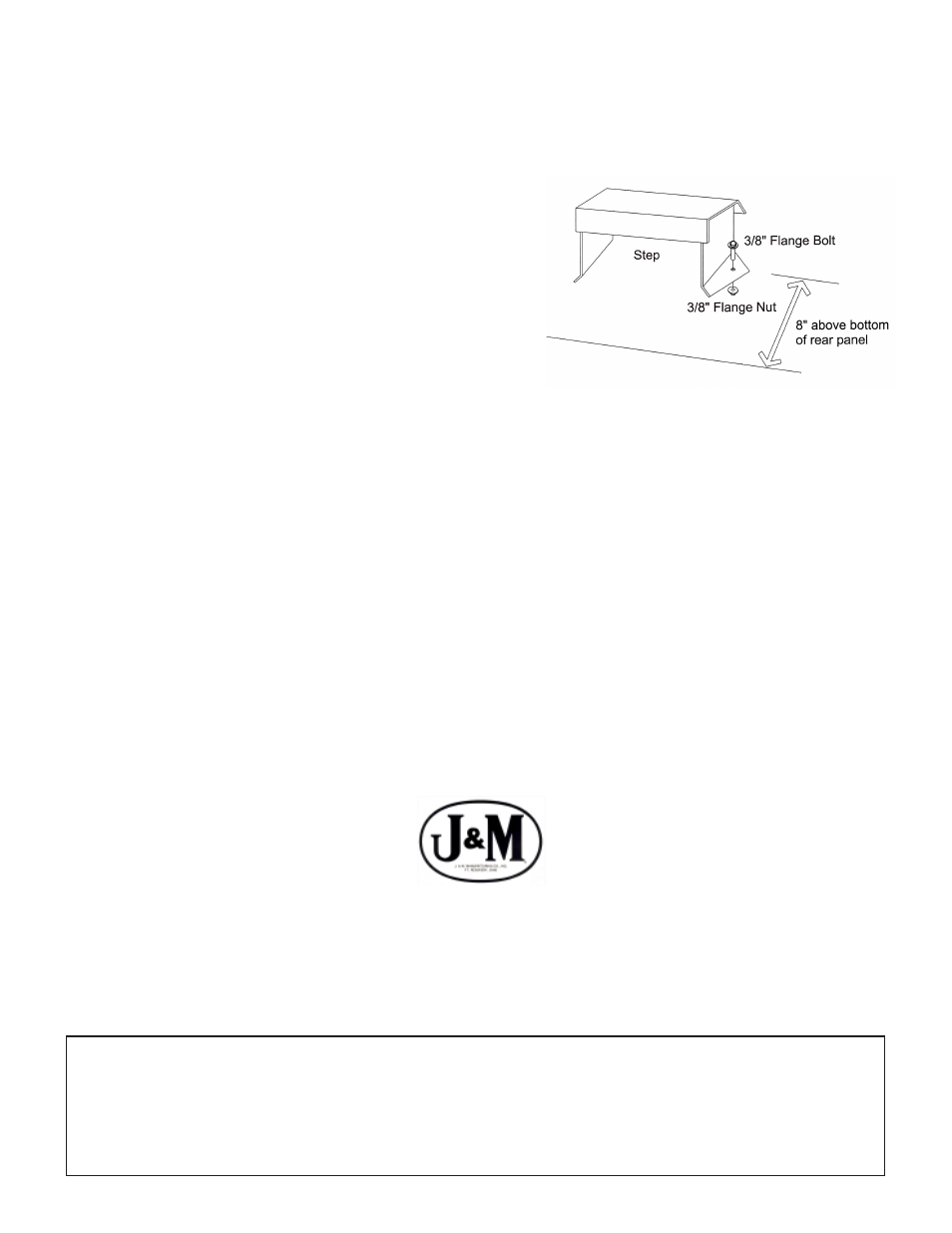

On the grain tank extension rear panel, position the step
approximately 8” from the lower side of the panel and directly above
the step in the combine tank. Using the step as a template, mark
and drill two 13/32” holes in the rear panel. Attach the step using
two 3/8” x 1” flange bolts and 3/8” flange nuts. Note: Be sure the
step is positioned and mounted as shown.
Step Eight:
Install 3/16" x 100" Panel Support Chain from front to rear in
combine tank using bolts and nuts located in tank.
Combine Grain Tank Set-Up Instructions (Continued)
for Case AFX 8010 Series Combines
Folding the Panels
Step One:
Fold the side panels toward the middle of the
combine hopper.
Step Two:
Fold the front and rear panels inward.
Step Three:
Fold the four corner panels.
WARNING:
Use of this product is at the owner’s discretion. Increasing grain capacity may adversely affect center of gravity,
stability, and controllability. Exceeding maximum combine weight loadings can risk structural integrity and drive
line components. J. & M. Mfg. Co., Inc. does not assume any liabilities, or make any warranties regarding the
performance or structure of the combine. See combine owner’s/operator’s manual for specific limitations, operating
recommendations, and safety information.
