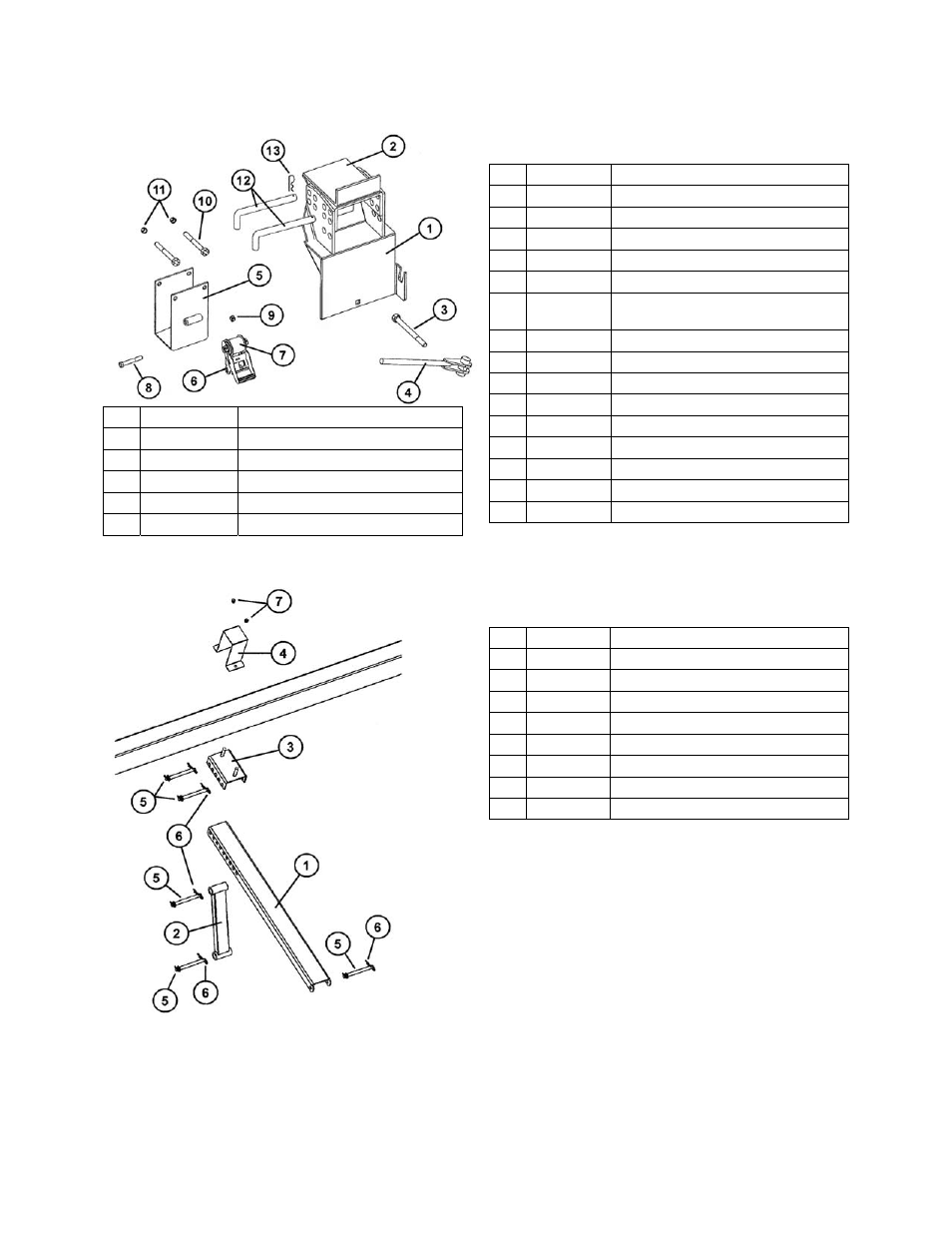

PARTS LIST
Tie-Down Bracket and Adjustable Header Mount
Adjustable Upper Bar Mount
#
Part #
Description
3
SB34612
Stove Bolt, 3/4” x 6 1/2”
4 CHA2
Clamp
Handle
Assembly
5
TDMB-2
Tie Down Mounting Bracket
6 RA-1
Ratchet
7
TDS-1
Tie-Down Strap and Hook Assy
7
TDS-1L
Tie-Down Strap and Hook Assy
w/D-Ring Strap (MacDon Heads)
8
12234G8B 1/2” x 2 3/4” Grade 8 Bolt
9
12NLN
1/2” Nylon Lock Nut
10
12512G5B 1/2” x 5 1/2” Grade 5 Bolt
11
12LN
1/2” Lock Nut
12
3412P
3/4” x 12” Pin
13 HC-CP
Cotter
Pin
14
TDB-3
Tie Down Bracket Assy Complete
15
AHM-2
Adj. Header Mount Complete
# Part
#
Description
1
AB-L2
Lower Adjustable Bracket
2
AB-U2L
Upper Adjustable Bracket, Left
2
AB-U2R
Upper Adjustable Bracket, Right
2
AB-U2L-MD
R/H Upper Adj. Bracket, MacDon
2
AB-U2R-MD
L/H Upper Adj. Bracket, MacDon
#
Part #
Description
1
UBCM-3
Upper Bar Channel Mount
2
UBSA-3
Upper Bar Support Arm
3
UBSM-3
Upper Bar Slide Mount
4
UBC-3
Upper Bar Clamp
5
HP-586
5/8” x 6” Pin
6
316HP
3/16” Hair Pin
7
12LN
1/2” Lock Nut
8
12-WR
1/2” Regular Washer
