J&M 500ST - Manual (Page 39)

39

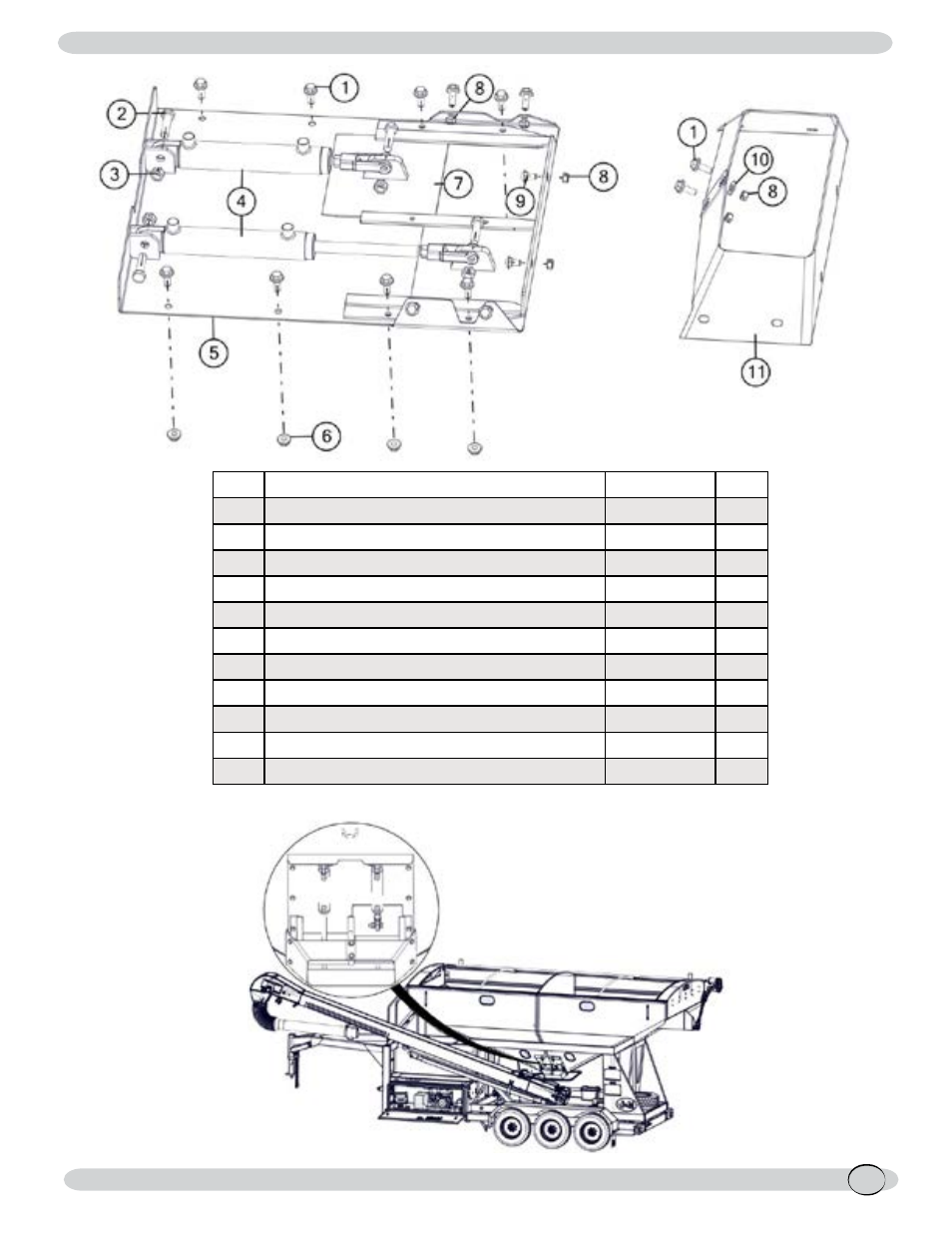

Hydraulic Door
# Description Part. No. Qty.
1 3/8”-16 x 1” Serrated Flange Head Hex Bolt JM0003150 12
2 1/2”-13 X 2” Gr5 Z Hex Bolt JM0001620 2
3 1/2”-13 Gr5 Z Centerlock Hex Nut JM0001511 2
4 1-1/2” Bore X 7” Stroke Hydraulic Cylinder JM0002882 2
5 Hydraulic Door Frame Weldment JM0012455 1
6 3/8”-16 Gr5 Z SF Hex Nut JM0001707 8
7 Hydraulic Door Weldment JM0012458 2
8 3/8”-16 Gr5 Z Centerlock Hex Nut JM0001512 2
9 3/8”-16 X 3/4” Gr5 Z Carriage Bolt JM0002172 2
10 3/8” USS Flat Washer JM0003061 2
11 Hydraulic Door Rubber JM0012371 1
