J&M 500ST - Manual (Page 37)

37

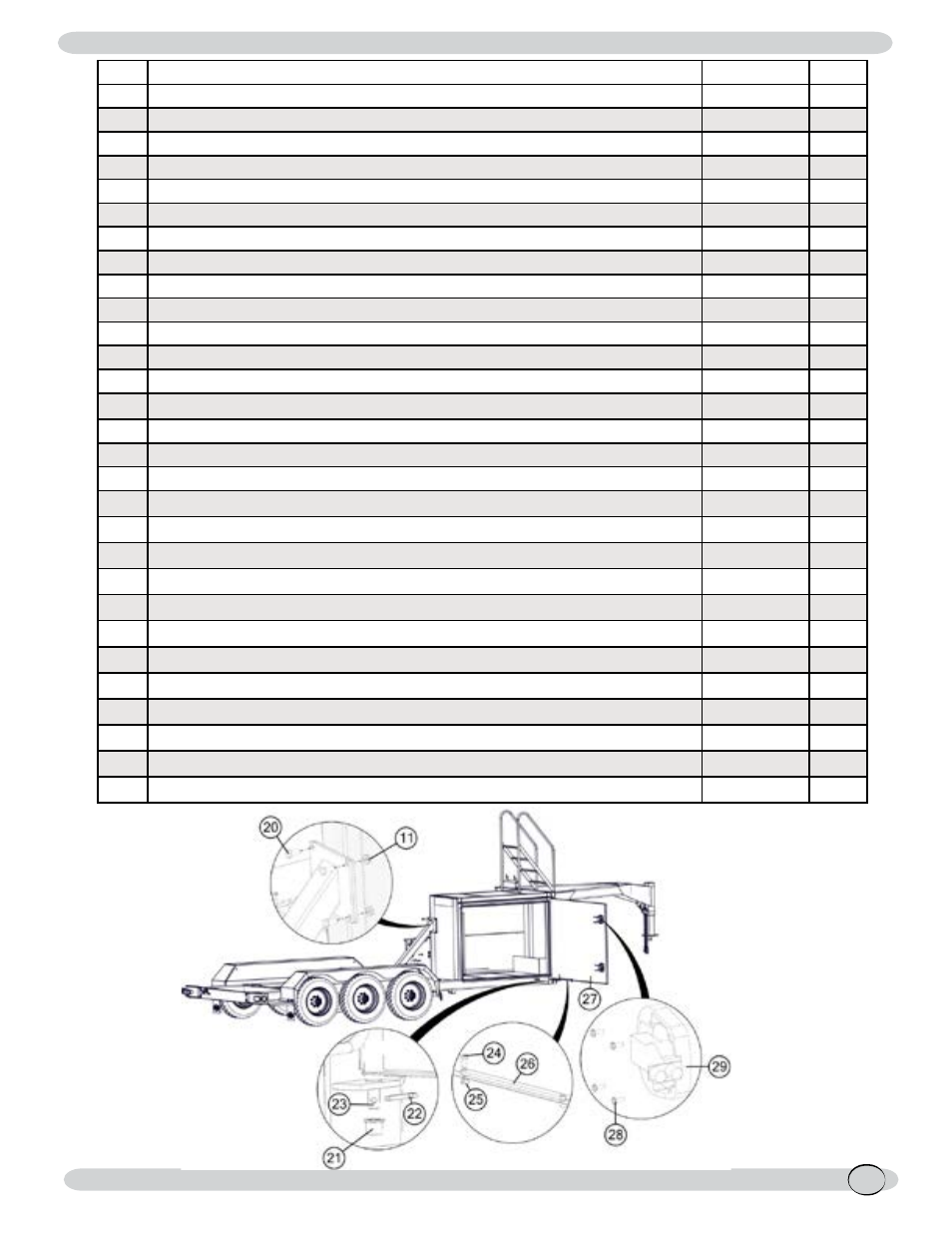

Chassis
# Description Part. No. Qty.
13B Red Oval Brake Light JM0007114 2
13C Red Oval Brake Light Grommet JM0001897 2
14 Bumper Weldment JM0015682 1
15 Chassis Weldment JM0015841 1
16 License Plate Holder JM0010305 1
17 #10-24 x 1.0” Slotted Hex Washer Head Machine Screw JM0009982 2
18 #10-24 Z Nylon Locking Hex Nut JM0016030 2
19 10k Torsion Axle JM0012466 3
20 5/8”-11 X 1.5” Gr5 Z Hex Bolt JM0002103 8
21 14mm Shaft, 18mm OD, 2mm Thick Flange, 22 Flange OD Bushing JM0016414 2
22 .188 X 1.5” Cotter Pin JM0015883 2
23 Cargo Door Pin JM0015615 1
24 1/2”-13 X 1.00” Gr5 Z Hex Bolt JM0010225 1
25 1/2”-13 Gr5 Z Centerlock Hex Nut JM0001511 1
26 Cargo Door Holder JM0015582 1
27 Cargo Door JM0015688 1
28 #10-24 x .563 Slotted Hex Washer Head Machine Screw JM0016669 8
29 Compression Latch - Whaletail Chrome on Chrome JM0016396 2
30 Break Away Battery Box Assembly JM0001833 1
31 Fuse Panel JM0016710 1
32 Universal AC Plug Holder Inlet JM0017161 1
33 On-Off Disconnect JM0016698 1
34 Battery Maintainer JM0017508 1
35 Ladder Weldment JM0015666 1
36 Upper Motor Access Door JM0015695 1
37 Motor Access Gas Cylinder JM0016412 2
38 Motor Door Support Cable JM0016765 2
39 Lower Motor Access Door JM0015691 1
40 Aluminum Louver JM0016413 1
