Tuff Stuff RSM-625WS Smith-Half Cage Ensemble - Manual (Page 9)

50
37 37
3
50 37 37
37
42
42
37
37
63
43
50
37
10
37
40
37
63
43
39
62
36
58
9
42
37
42
37
4
16
7
37
63
43
37
63
43
7
40
37
11
37 50
16
9 RSM-600 Basic Smith-Half Cage

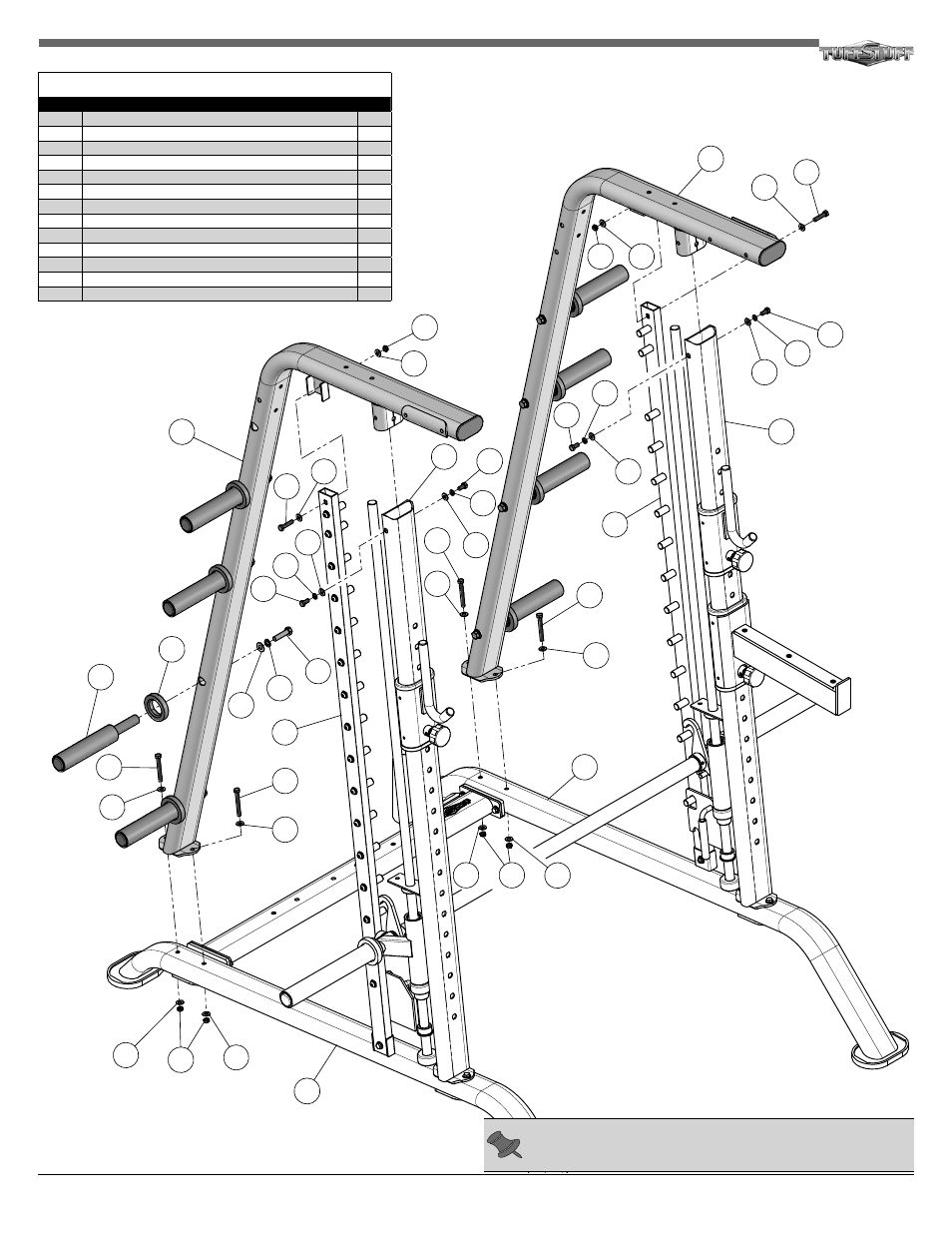

Step 6
Step 6 Assembly List
Item # Description Qty.
9 OLYMPIC ADAPTER 1 X 8 8
10 REAR SIDE SUPPORT LT 1
11 REAR SIDE SUPPORT RT 1
36 FLAT WASHER SAE Z/P 1/2” 8
37 FLAT WASHER SAE Z/P 3/8” 16
39 HEX HEAD CAP SCREW 1/2-13 X 1 1/4 8
40 HEX HEAD CAP SCREW 3/8-16 X 1 3/4 2
42 HEX HEAD CAP SCREW 3/8-16 X 3 4
43 HEX HEAD CAP SCREW 3/8-16 X 3/4 4
50 NYLON INSERT JAM LOCK NUT Z/P 3/8-16 6
58 RUBBER WASHER 1 7/8 ID X 4 1/4 OD X 9/16 8
62 SPLIT LOCK WASHER Z/P 1/2” 8
63 SPLIT LOCK WASHER Z/P 3/8” 4
NOTE:
TWO PEOPLE ARE REQUIRED TO DO THIS STEP.
