RSM-600 Basic Smith-Half Cage

21

6

8

18

5

55

55

14

3

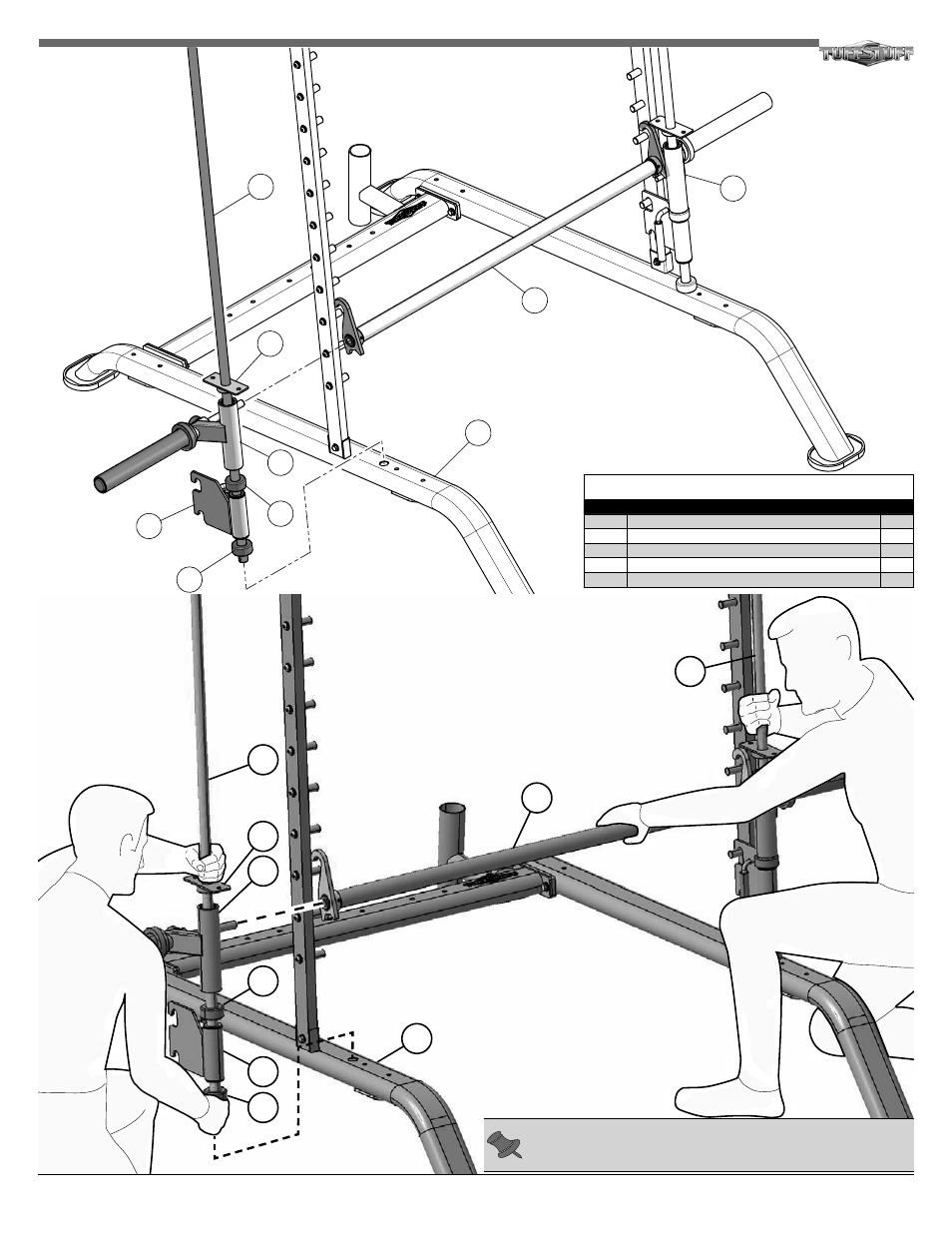

Step 4 Assembly List

Item #

Description

Qty.

5

PRESS BAR HOUSING LT

1

8

LINEAR SHAFT 1 X 69 11/16

1

14

SAFETY SPOTTER BRACKET LT

1

18

SHAFT RETAINER PLATE

1

55

RUBBER DONUT 1 X 2 1/2

2

Step 4

NOTE:
TWO PEOPLE ARE REQUIRED TO DO THIS STEP.

21

8

8

18

5

55

14

55

3
