Schreiber Chillers ASM010 City Water Switchover User Manual
Overview, Installation

Overview:
The ASM010 Switchover module is designed to provide the cooling load with an
alternate source of water in the event of chiller malfunction. Two alarm signals
from the chiller, high temperature and pump failure are wired in from the chiller to
provide the signal to switch over.
The operator has the ability to set the chiller in a chiller only mode, city water only
mode, or automatic switchover mode. The operator can also choose between
automatic or manual reset.
A set of NO and NC alarm contacts are provided.
All of the necessary valves are located inside the panel. The valves are all
normally closed; removal of power from the panel will shut off both water
supplies.
Installation

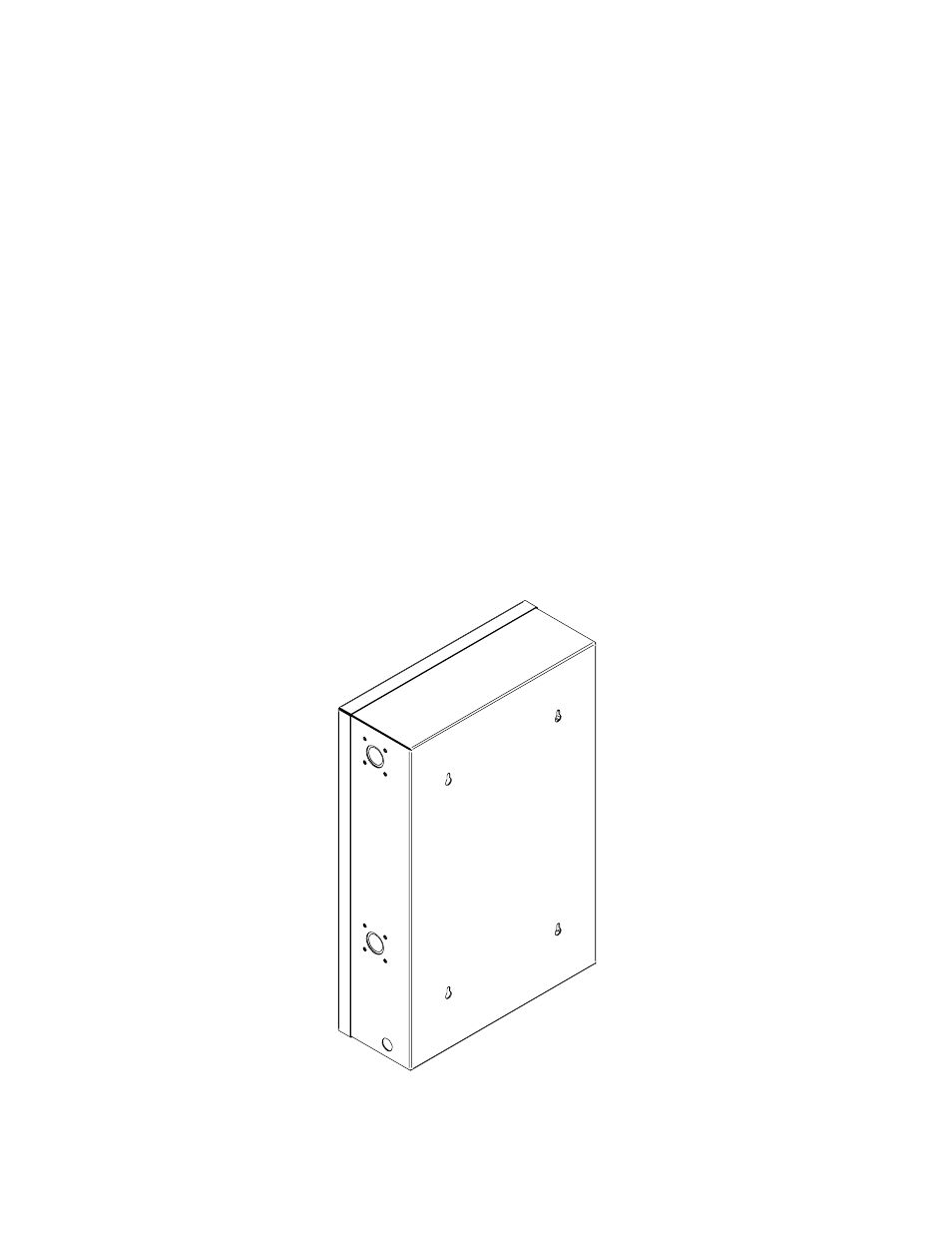

Figure 1-Back View of Panel
Load Supply
Connection
Load Return
Connection
Electrical Supply
KO.(1/2”)
Mounting Holes
