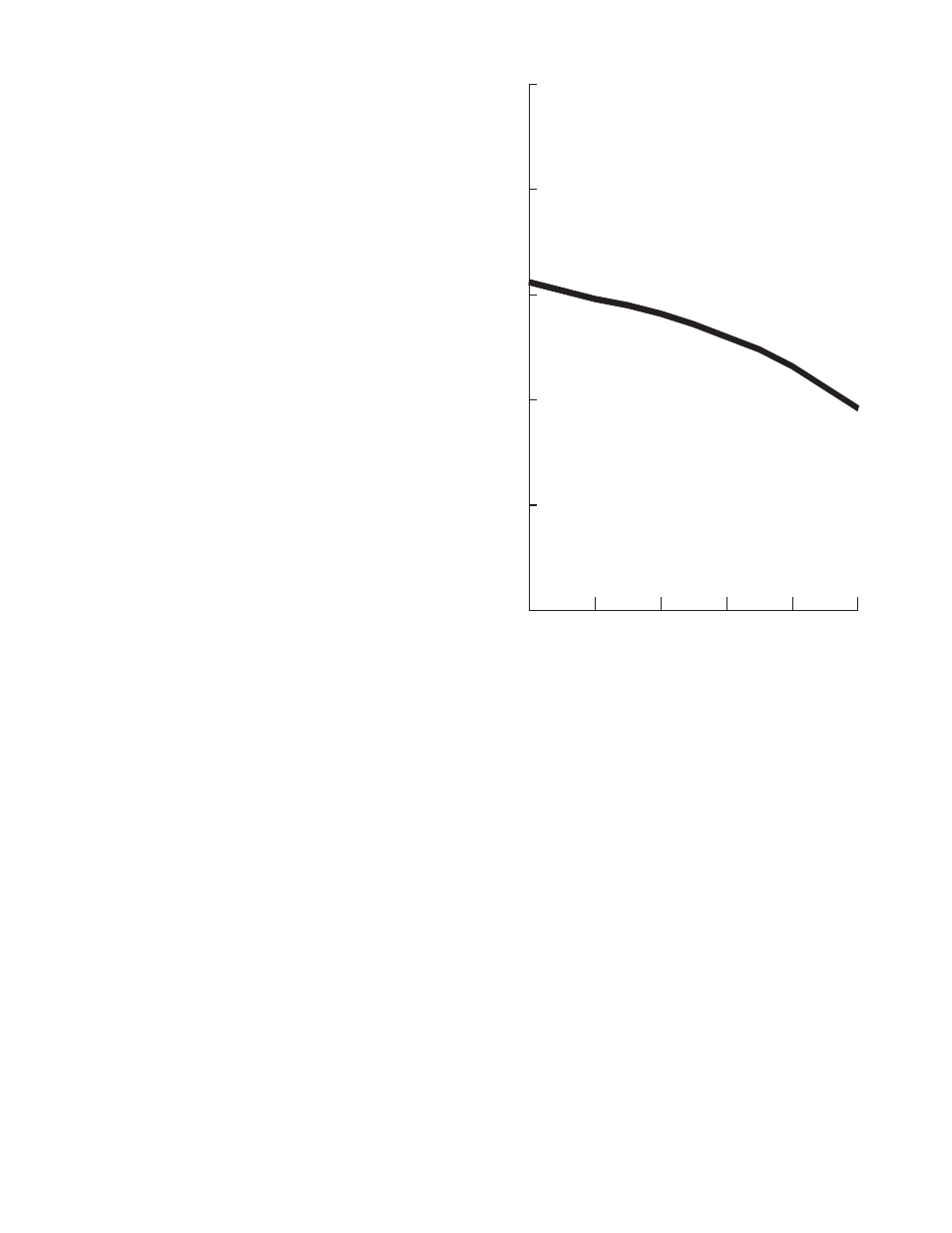

PUMP PERFORMANCE
GPM vs. FT
Model Number 750AC
Chiller Capacity 7.5 [Tons]
@ 44 o F Water & 90000 [BTU/hr]
95 o F Ambient 26.4 [KW]
Width 32.00 [in]
Height 50.00 [in]
Depth 60.00 [in]
Volts/Phase 220/3 440/3 [Volts]
FLA 36.0 18.0 [Amps]
Min Amps 42.0 22.0 [Amps]
Max Fuse 45 25 [Amps]
Charge 17.0 [lbs]
Refrigerant R-22
Compressor FLA 24.3 12.2 [Amps]
Compressor LRA 183 92 [Amps]
Compressor HP 7.5 [HP]
Compressor Type Scroll
Water Pump FLA 5.6 3.0 [Amps]
Water Pump HP 2 [HP]
Water Pump GPM 50 [GPM]
Water Pump Pressure 50 [psi]
Fan FLA 6.0 3.0 [Amps]
Fan HP 0.5 [HP]
Fan Blade 18 [in]
Fan Quanitity 2
Total Air Flow 6000 [CFM]
Fan RPM 1140 [RPM]
Make-up Connection 1/2” N.P.T. [in]
CHW Connections 1-1/2” N.P.T. [in]
Reservoir Capacity 60 [Gal]
Dry Weight 1250 [lbs]
0 10 20 30 40 50
0
50
100
150
200
250
