MoTeC Appendices
21

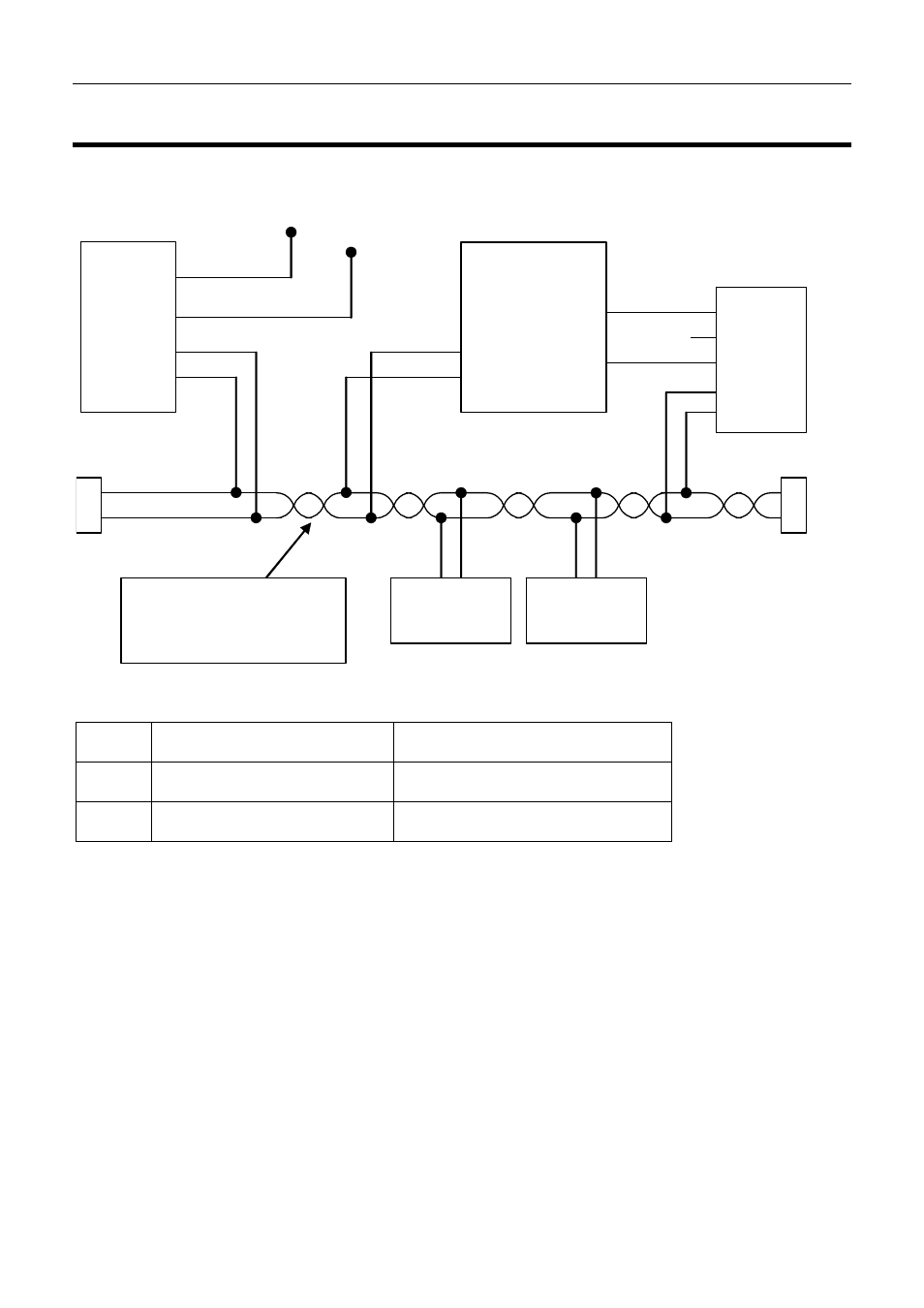

Appendix F: E8xx to M800 Wiring
Note that this also applies to the M400, M600 and M880 ECUs.
See pin list
Ground
E8xx
ECU
See pin list
Power
B24 / 47
CAN-LO CAN-LO
B24 / 47
B23 / 54
CAN-HI CAN-HI
B23 / 48
CAN-LO
CAN-HI
Any Other
CAN Device
100R
100R
See the CAN Bus
Wiring Specification
for more Detail
CAN Cable
Connector
Any Other
CAN Device
0V
1
8V
3
CAN-LO
4
CAN-HI
5
2
0V
8V
72
71
Bat -
Bat +
E8xx Power and Ground Wiring
Bat +
Bat -
E888 A17, B8, B9
A10, A11, B15, B16
E816 28, 29, 30, 37, 38, 39
13, 14, 15, 19, 20, 21, 22
Additional Power and Ground pins are provided to simplify and to meet the
current requirements of any devices connected to the PWM outputs.
As a general principle, if no outputs are being used, then wiring one power and
one ground pin is sufficient. If the expander outputs are used, then all power
and ground pins should be wired up.
