I-View PAC-080M Intelligent Audio Amplifier User Manual
Page 8

8

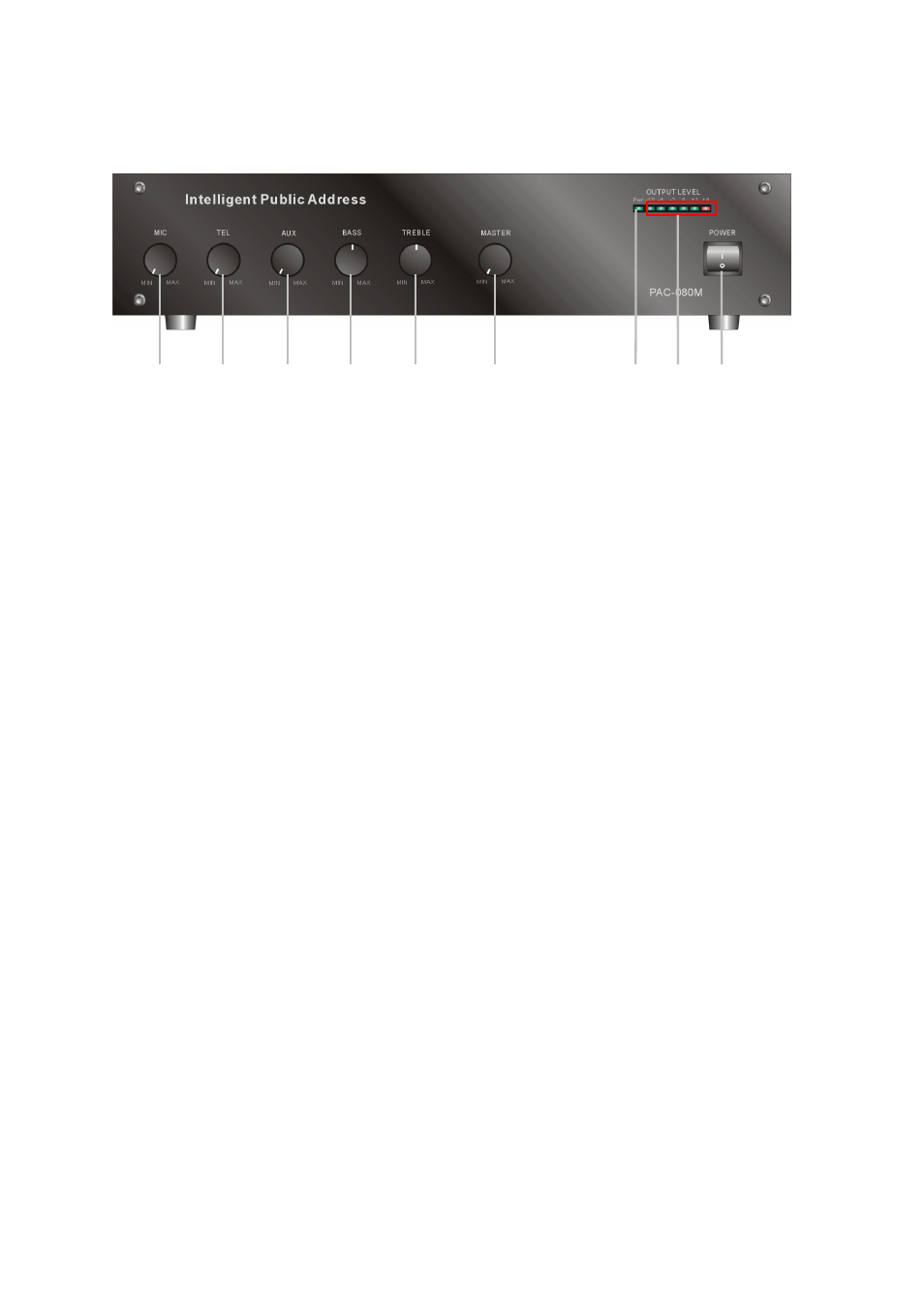

2-2.
Nomenclature Description
○
○
○
○
1 MIC Volume Controls: Adjust gain of Microphone input.
○
○
○
○
2 TEL Volume Controls: Adjust gain of Telephone input.
○
○
○
○
3 AUX Volume Controls: Adjust gain of Computer’s sound card.
○
○
○
○
4 Bass Control: Modifies bass response. Turn clockwise to boost, counter-clockwise to attenuate
the bass response. Tone is flat at center.
○
○
○
○
5 Treble Control: Modifies treble response. Turn clockwise to boost and counter-clockwise to
attenuate the treble response. Tone is flat at center.
○
○
○
○
6 Master Volume Control: Adjusts overall gain of the unit.
○
○
○
○
7 Power Indicator: The Green LED lights will be on when turn on power.
○
○
○
○
8 Signal Indicator LED: Green LED lights when more than –10 dB signal level is fed to the
inputs by means of the input and master volume controls.
○
○
○
○
9 Power Switch: Applies line power. Two-position push button switches for on/off modes.
○
9
○
1
○
2
○
3
○
4
○
5
○
7
○
6
○
8
