H-DVD5036 ( www.hyundai-electronics.ru ) 12
Connection
Precaution: Do not turn on the power of the player before all connections are done correctly.
Note: The diagram may be different from your DVD player; the connections are only for your
reference.

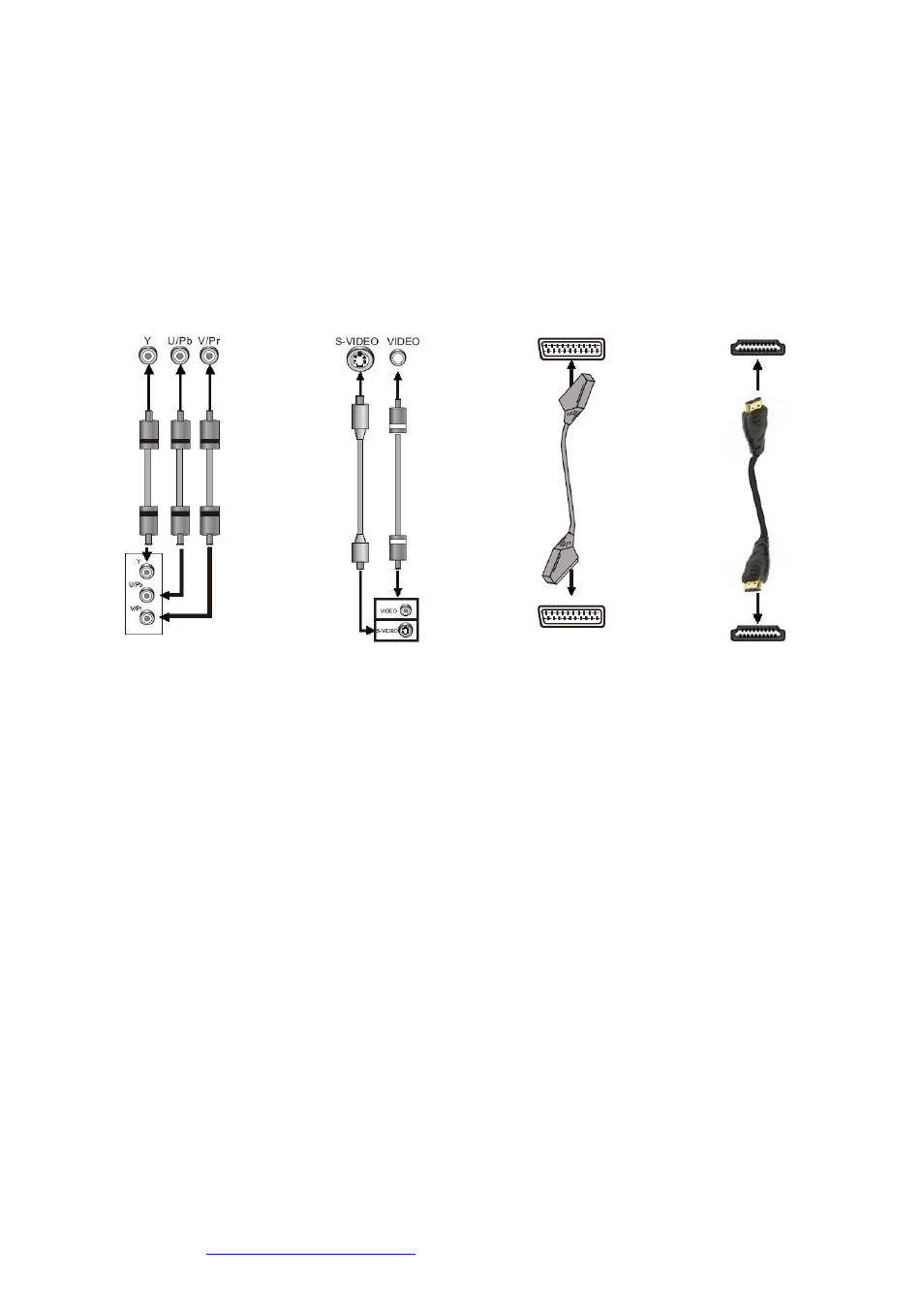

TV/Monitor video input
Component video Composite video and SCART input HDMI input
input S-video input
Component video Composite video and SCART output HDMI output
output S-video output
Video system connection
Five video outputs are available in this unit.
Composite video
Use the cable with yellow plug of an AV cable to connect the composite video output of this unit to
the video input of a TV/monitor.
S-Video
Use an S-Video cable to connect the S-Video output of this unit to the S-Video input of a
TV/monitor.
SCART
Use a 21-pin SCART cable to connect the SCART output of this unit to the TV/monitor SCART
input.
Component video
Use a 3-core AV cable to connect the components outputs of this unit to the corresponding inputs of a
TV/monitor.
HDMI
HDMI can transmit both audio and video signal over a single cable. HDMI output presents the
highest possible resolutions and video quality. If an HDMI input is available in your TV, use it.
Use a HDMI cable to connect the HDMI output of this unit to the HDMI input of a TV/monitor.
