Chenbro SK32303 6Gb/s 3-port 3.5 SATA/SAS Backplane for SK32303 - Manual User Manual
Page 8
3-Port 6Gb/s SAS Backplane 80H10532304A0
User’s Manual
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 e-mail: [email protected]
8
www
.chenbr
o.com

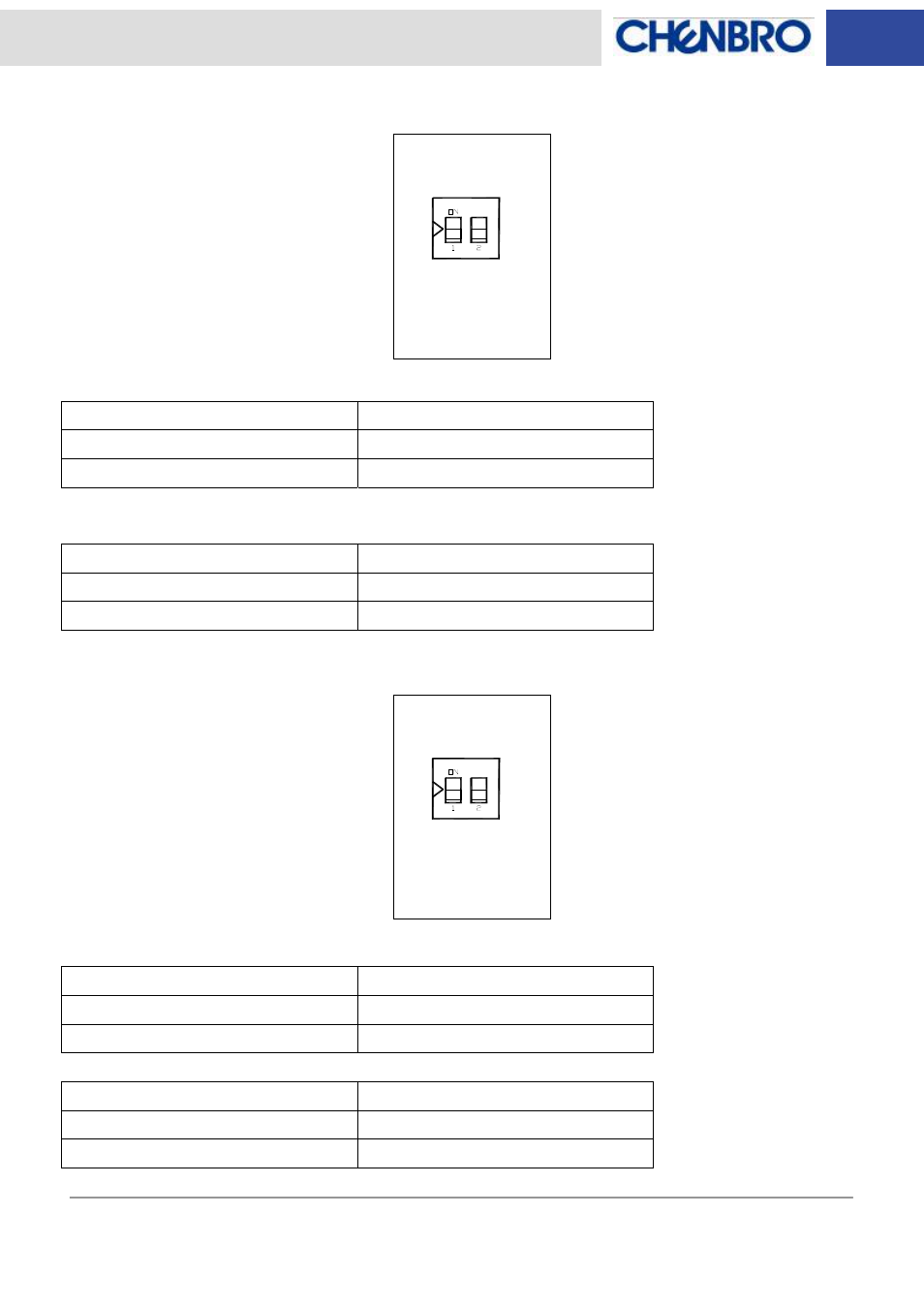

SW1: Function Setting
SW1-1: Fan 1 Enable/ Disable setting
SW1-1 Fan1
ON Enable-Default
OFF Disable
SW1-2: Threshold Temperature Setting
SW1-2 Temperature
ON
65 Degree C
OFF
55 Degree C- Default
SW2: Function Setting
SW2-1: SGPIO ACT Enable/ Disable Setting
SW2-1 SGPIO
ACT
ON Enable
OFF Disable-Default
SW2-2: SGPIO FAIL Enable/ Disable Setting
SW2-2 SGPIO
FAIL
ON Enable-Default
OFF Disable
SW1 Description
SW2 Description
